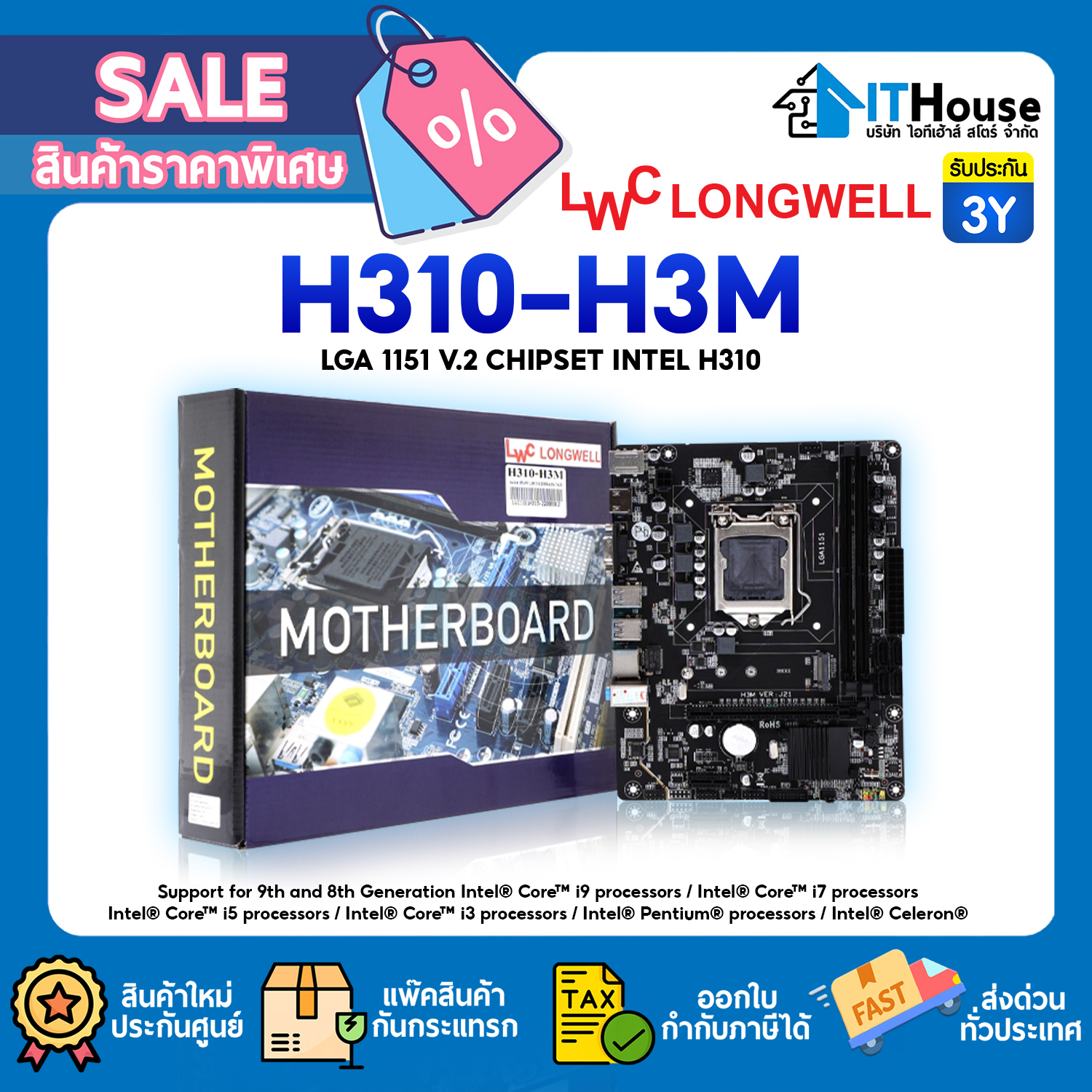

LONGWELL H310-H3M MAINBOARD 1151 Chipset Intel H310 Micro ATX

✅ Specifications:

Brand    LONGWELL

Model    LWC H310-H3M

CPU Support

Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel®

Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron®

processors in the LGA1151 V2 package

Socket

Socket 1151

Chipset

Chipset Intel H310

Memory Support

Memory Support 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory

Dual channel memory architecture

Support for DDR4 2666/2400/2133 MHz memory modules

Memory Type

DDR4

Memory Bus

2666/2400/2133

Maximum Memory Bus

2666

Memory Slot

2

Graphics

N/A

Multi Graphic Support

N/A

Audio

Audio Realtek® ALC662 codec

High Definition Audio

Expansion Slots

1 x PCI Express x16 slot

1 x PCI Express x1 slot

Maximum PCIe Version

N/A

Storage

4 x SATA 6Gb/s connectors

1 x M.2

M.2 Storage Type Support

pcie

USB

1 x USB 3.1 Gen 1 header

1 x USB 2.0/1.1 headers

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x USB 3.1 Gen 1 header

1 x USB 2.0/1.1 headers

1 x Clear CMOS jumper

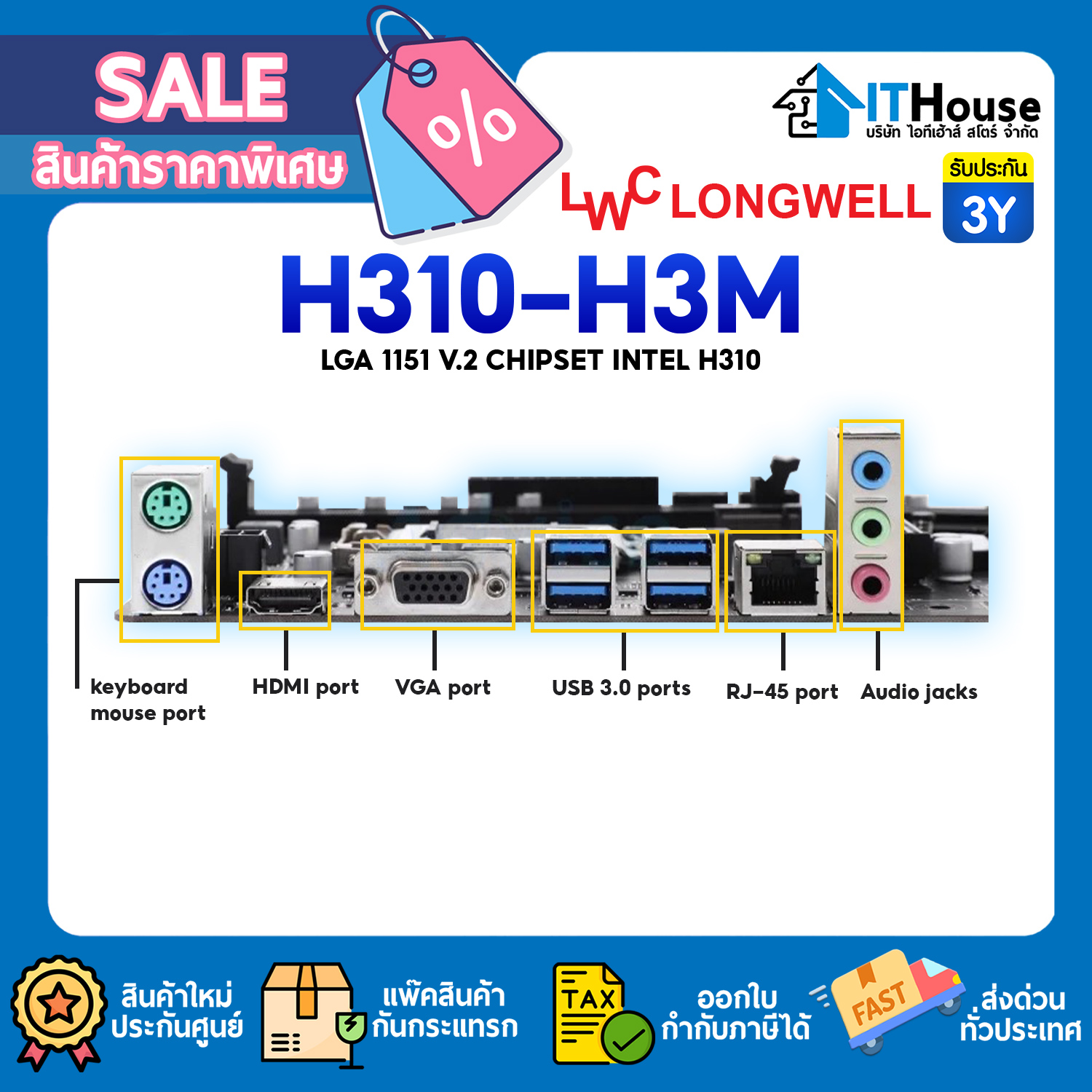

Back Panel Connectors

2 x PS.2 keyboard/mouse port

1 x HDMI port

1 x VGA port

4 x USB 3.0 ports

1 x RJ-45 port

3 x audio jacks

LAN

10/100/1000 Mb/s auto negotiation Half/Full duplex capability

Realtek® RTL8111G

Wireless Data Network

N/A

Form Factor

Micro ATX Form Factor; 21.6cm x 17.0cm

H/W Monitoring

N/A

BIOS

N/A

Special Features

N/A

Software Features

N/A

Operating System Support

Win 7-11

Package Contents

1 x SATA cable

1 x I/O Rear Panel

1 x User Manual
