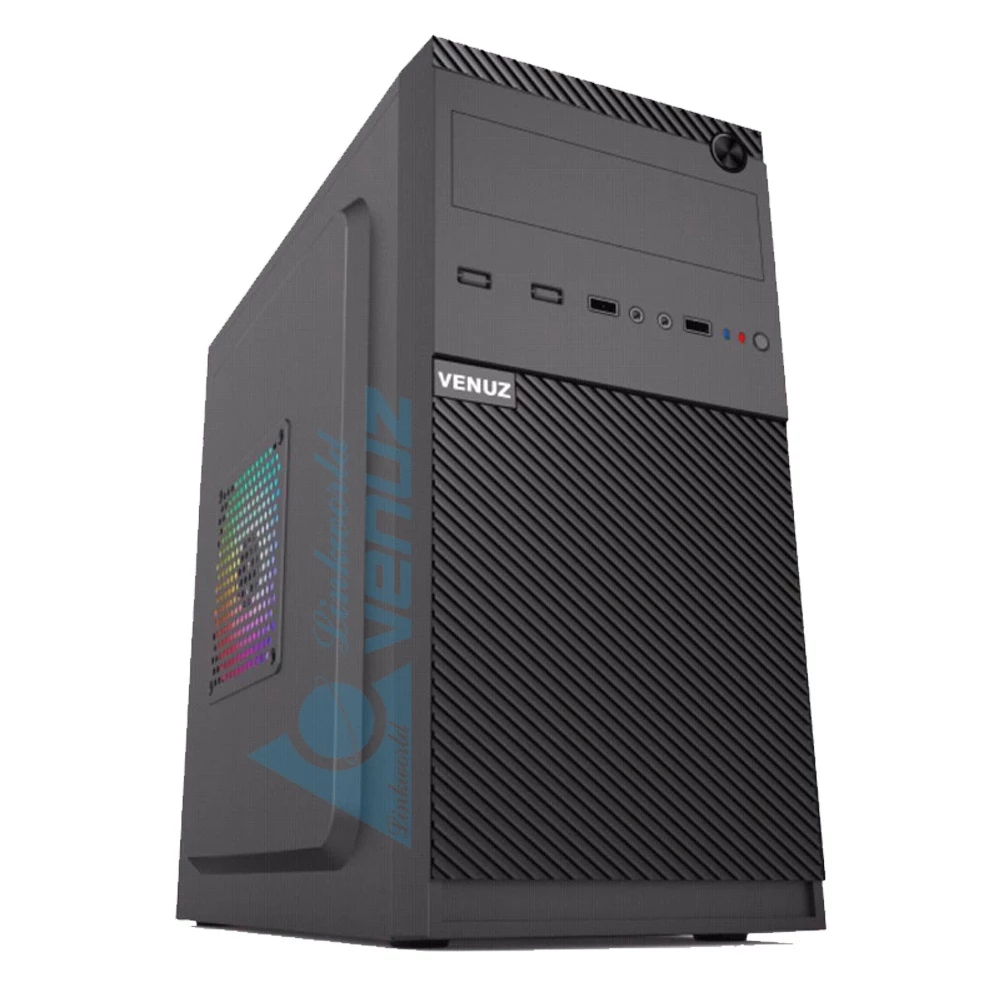

CASE : VENUZ MICRO SERIES VC-1704 (BLACK)

Model Name: VC 1704

Specifications

Type: micro ATX

Material & Thickness: 0.35 SPCC Black coating

Side Panel: Steel panel

Max Video Card Length: 280 mm

MAX CPU Height: 150 mm.

Motherboard Compatibility: Micro ATX, Mini ITX

Expansion

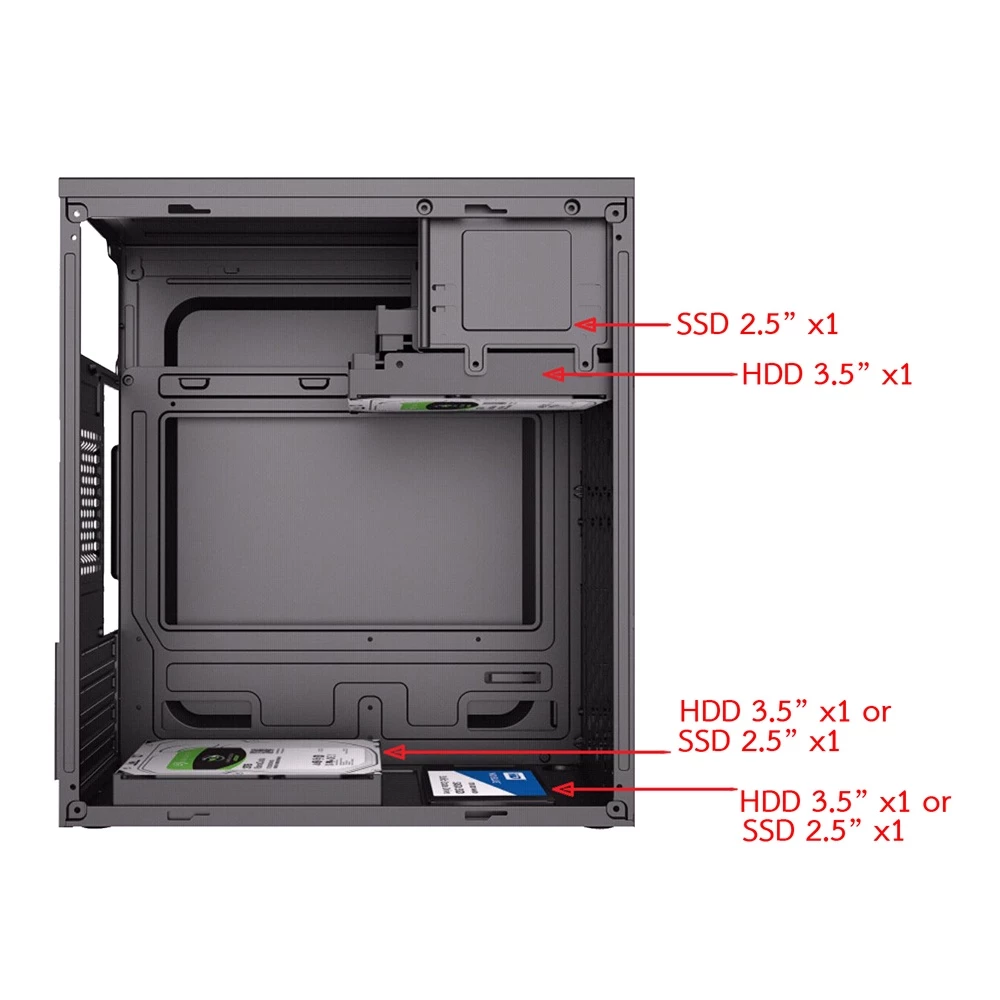

External 5.25" Drive Bays: 1

Internal 2.5" Drive Bays: Up to 3

Internal 3.5" Drive Bays: Up to 2

Expansion Slots: 4

Front Ports: Power button, Reset button, HD Audio, 2 x USB1.1 & 1 x USB3.0

Cooling System

1 x 12 cm fan ports in the front

1 x 12 cm fan port in the side

1 x 8 cm fan port in the rear

Physical Specifications

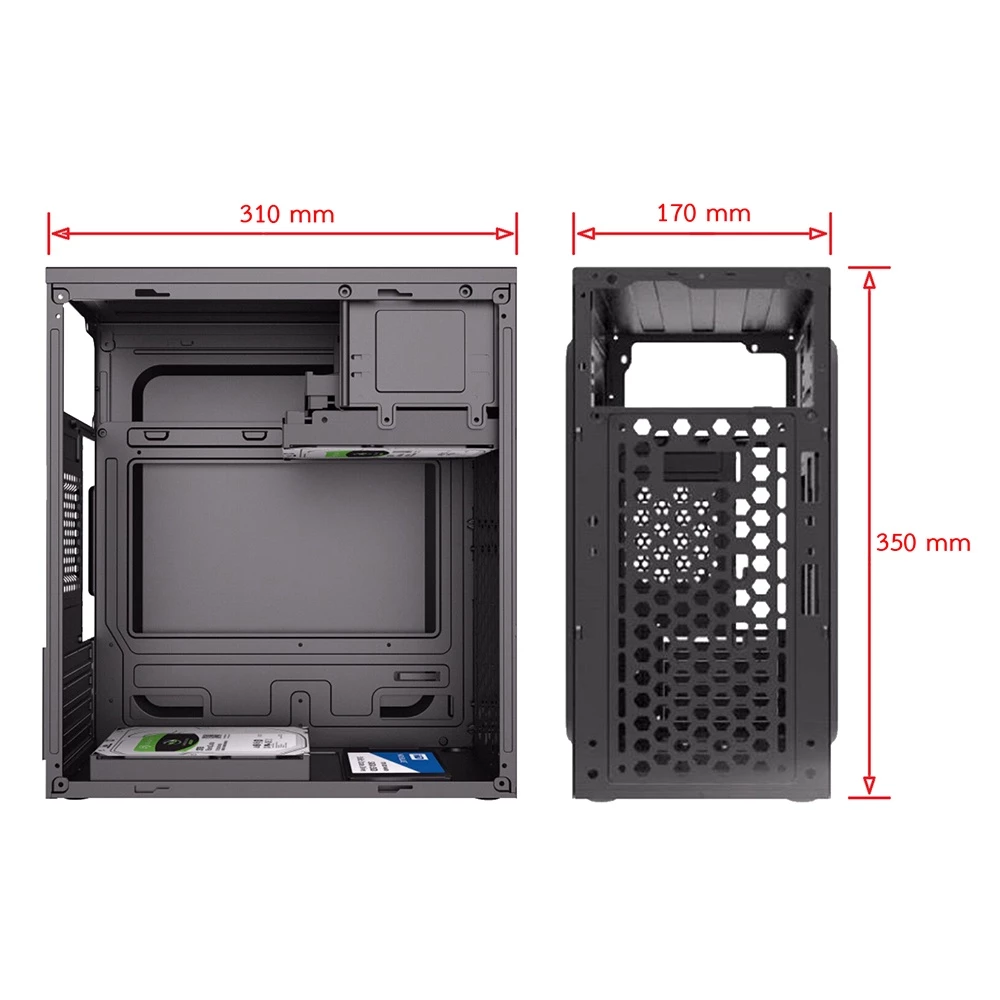

Chassis Size (D x W x H): 310 x 170 x 350 mm.

Case Size (D x W x H): 345 x 185 x 350 mm.

Carton Size (D x W x H): 390 x 205 x 390 mm.

Weight: N.W.: 1.75 Kg /G.W.: 2.10 Kg.
