LONGWELL H81-AC MAINBOARD (1150) Chipset Intel H81 รองรับ Micro ATX รองรับซีพียู i3,i5,i7

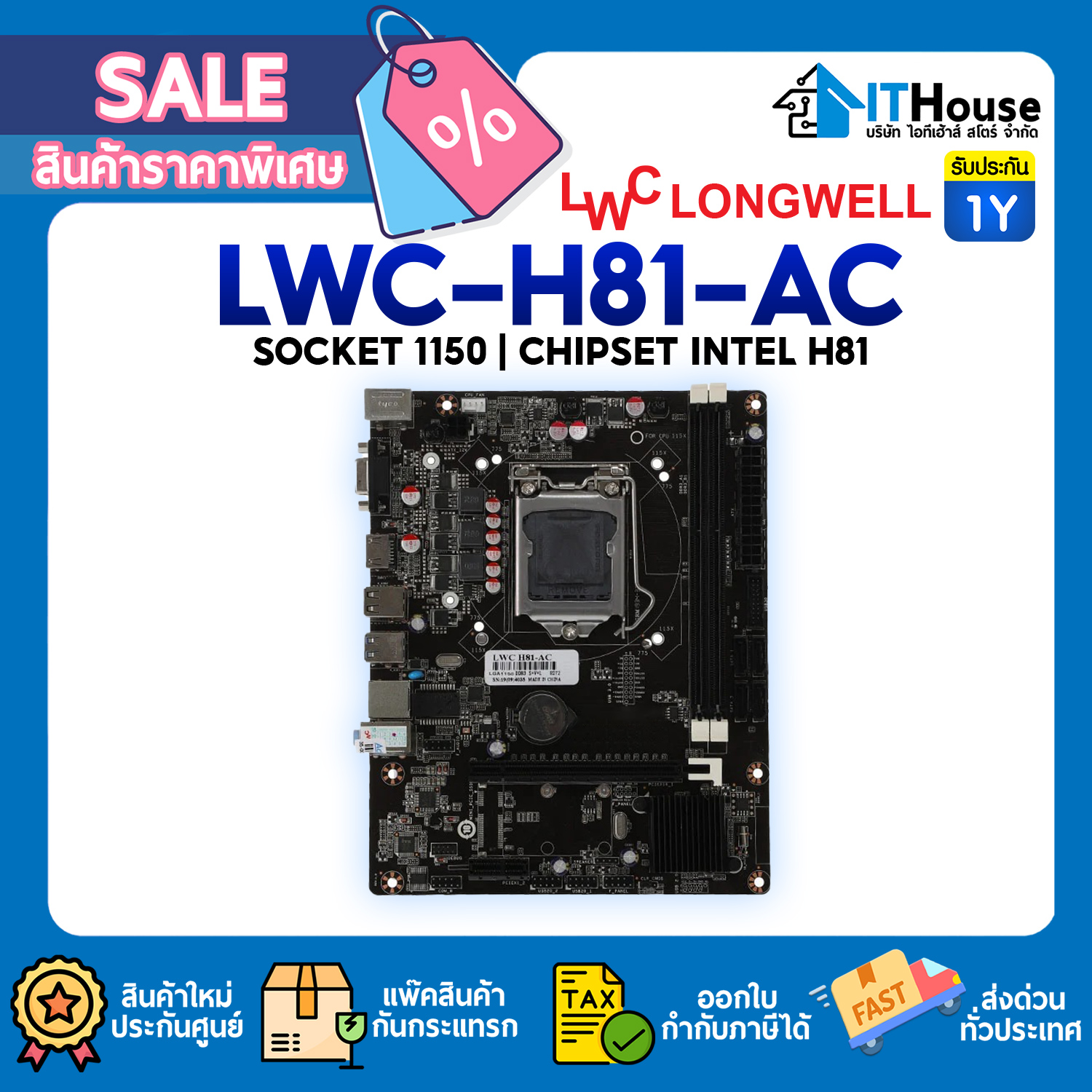

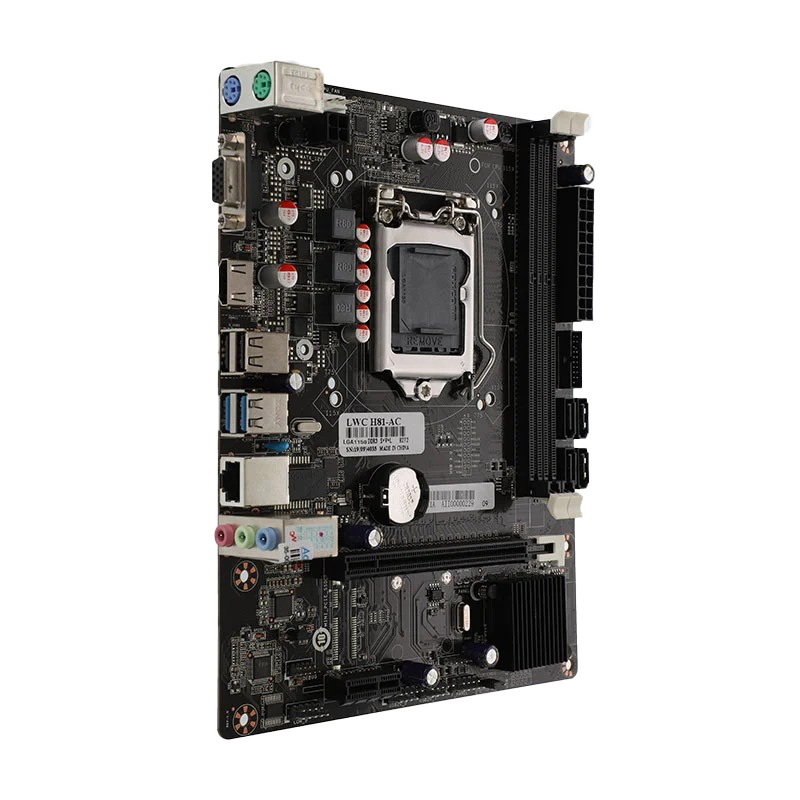

⭐MAINBOARD LONGWELL H81-AC⭐

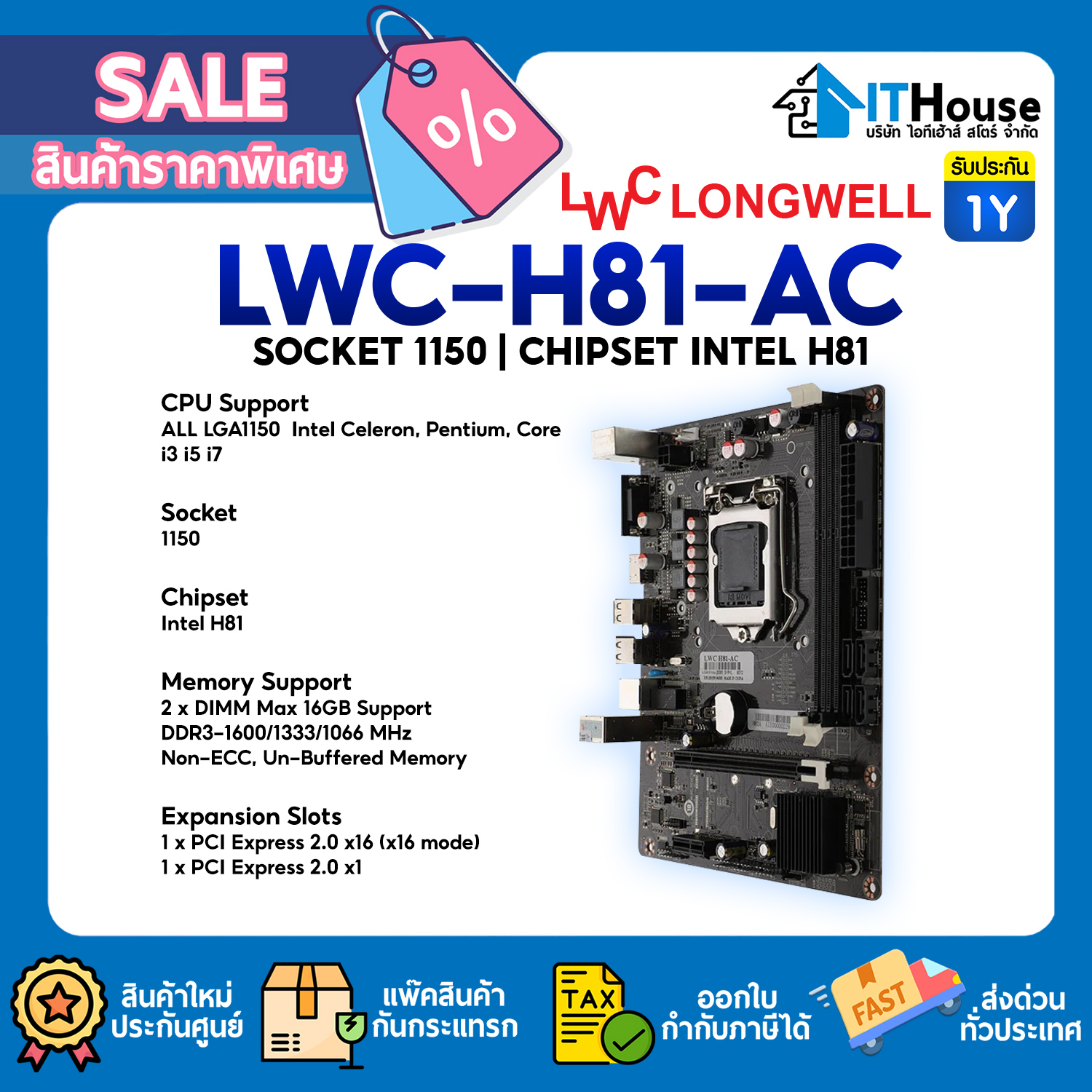

CPU Support

• ALL LGA1150  Intel Celeron, Pentium, Core i3 i5 i7

Socket

• 1150

Chipset

• Intel H81

Memory Support

• 2 x DIMM Max 16GB Support DDR3-1600/1333/1066 MHz
• Non-ECC, Un-Buffered Memory

Audio

• Realtek® High Definition Audio CODEC

Expansion Slots

• 1 x PCI Express 2.0 x16 (x16 mode)
• 1 x PCI Express 2.0 x1

Internal I/O Connectors

• 1 x 24-pin EATX Power Connector
• 1 x 4-pin ATX 12V Power Connector
• 1 x CPU Fan Connector
• 1 x F USB 3.0 Gen1 connectors
• 2 x F USB 2.0 Connector
• 1 x Debug
• 1 x Front Panel Audio Connector (AAFP)
• 1 x Speaker Connector
• 1 x System Panel Connector

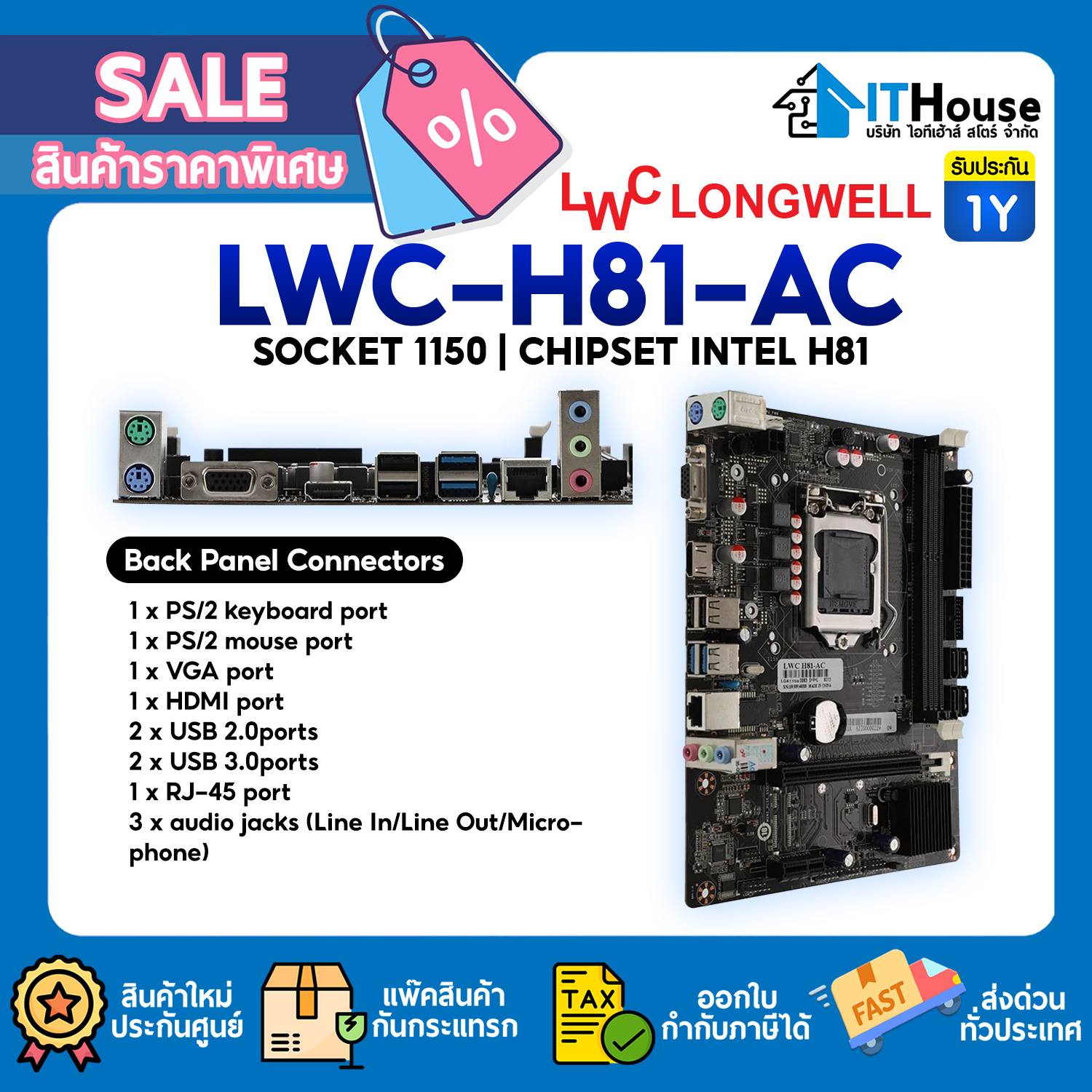

 Back Panel Connectors

• 1 x PS/2 keyboard port
• 1 x PS/2 mouse port
• 1 x VGA port
• 1 x HDMI port
• 2 x USB 2.0ports
• 2 x USB 3.0ports
• 1 x RJ-45 port
• 3 x audio jacks (Line In/Line Out/Microphone)

LAN

• 10/100 Mb/s auto negotiation Half/Full duplex capabilityRealtek®

Form Factor

• Micro ATX Form Factor ; 21.5cm x 17cm

BIOS

• 1 x 32 Mbit flash
• Use of licensed AWARD BIOS

Operating System Support

• Support for Microsoft Windows xp/7/8/10/linux

Dimension    (W x D x H)

• 17.00 x 22.50 x 3.70 cm

Net Weight    0.35 KG

Package Dimension (W x D x H)

23.10 x 27.60 x 5.50 cm

Gross Weight    0.61 KG
