LONGWELL B75-X7 MAINBOARD (1155) Socket 1155 Chipset Intel B75

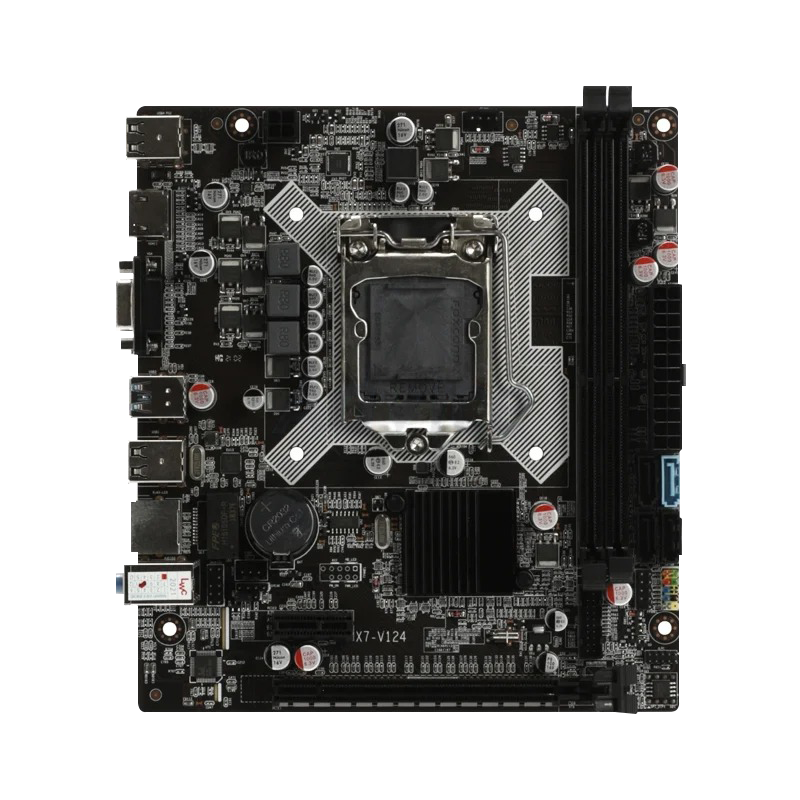

MAINBOARD LONGWELL B75-X7

CPU Support

• Intel 2nd/3rd Generation Core i3/i5/i7/Pentium/Celeron Processors

Socket

• 1155

Chipset

• Intel B75

Memory Support

• Dual Channel DDR3 Memory Technology
• 2 x DDR3 DIMM Slots
• Support DDR3 1600/1333/1066 MHz Non-ECC, Un-Buffered
• Max.capacity up to 16GB Memory

Graphics

• N/A

Multi Graphic Support

• None

Audio

• Realtek Channel High Definition Audio code

Expansion Slots

• 1 x PCI Express 2.0 x16 (x16 mode)
• 1 x PCI Express 2.0 x1

Storage

• 3 x SATA II 3.0Gb/s Connector
• 1 x SATA III 6.0Gb/s Connector

USB

• N/A

Internal I/O Connectors

• 1 x 24-pin EATX Power Connector
• 1 x 4-pin ATX 12V Power Connector
• 1 x CPU Fan Connector
• 1 x System Fan Connector
• 1 x F USB 3.0 Connector
• 1 x F USB 2.0 Connector
• 1 x COM port Connector
• 1 x Front Panel Audio Connector (AAFP)
• 1 x Speaker Connector1 x CMOS
• 1 x System Panel Connector

Back Panel Connectors

• 1 x HDMI Port1 x VGA (D-Sub) Port
• 4 x USB 2.0 Ports
• 2 x USB 3.0 Ports
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• 3 x Audio Jacks: Line in / Speaker / Microphone

LAN

• 10/100 Mb/s auto negotiation Half/Full duplex capability

 Wireless Data Network

• None

Form Factor

• Micro ATX Form Factor Dimension: 19.0 cm x 17.0 cm

H/W Monitoring

• N/A

BIOS

• N/A

Special Features

• N/A

Software Features

• N/A

Operating System Support

• Microsoft Window XP / Vista / 7 / 8 / 8.1 / 10
