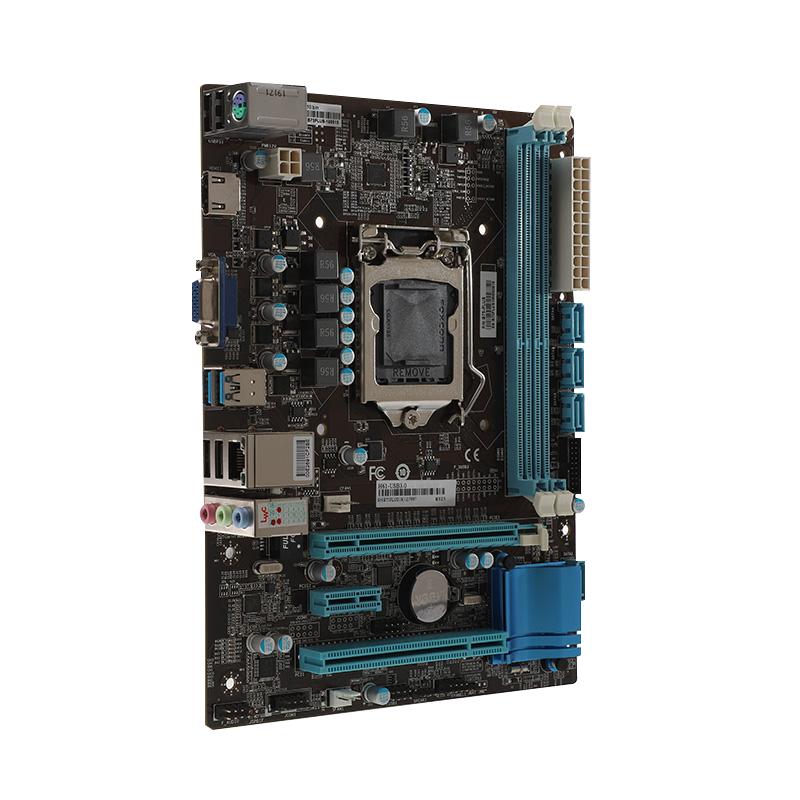

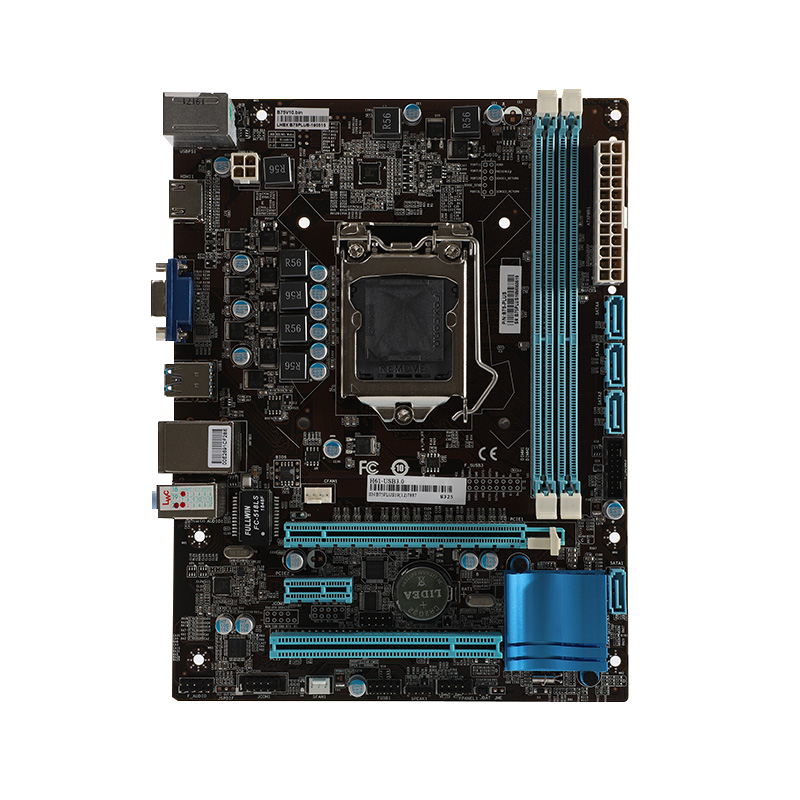

LONGWELL P8H61 PLUS MAINBOARD (1155) Socket 1155

MAINBOARD (1155) LONGWELL P8H61 PLUS

CPU Support

• Intel® 2nd/3rd Generation Core™ i3/i5/i7/Pentium®/Celeron® Processors

Socket

• 1155

Chipset

• Intel H61

Memory Support

• Dual Channel DDR3 Memory Technology Non-ECC, Un-Buffered

Max.capacity up to 16GB Memory

Audio

• Realtek® High Definition Audio CODEC

Expansion Slots

• 1 x PCI Express 2.0 x16 (x16 mode)
• 1 x PCI Express 2.0 x1
• 1 x PCI

Storage

• 3 x SATA II 3.0Gb/s Connector
• 1 x SATA III 6.0Gb/s Connector

Internal I/O Connectors

• 1 x 24-pin EATX Power Connector
• 1 x 4-pin ATX 12V Power Connector
• 1 x CPU Fan Connector
• 1 x System Fan Connector
• 1 x F USB 2.0 Connector
• 1 x F USB 3.0 Gen1 connectors
• 1 x COM port Connector
• 1 x CMOS
• 1 x Front Panel Audio Connector (AAFP)
• 1 x Speaker Connector
• 1 x System Panel Connector

Back Panel Connectors

• 1 x PS/2 Mouse/Keyboard Port
• 1 x HDMI Port
• 1 x VGA (D-Sub) Port
• 4 x USB 2.0 Ports
• 2 x USB 3.0 Ports
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• 3 x Audio Jacks: Line in / Speaker / Microphone

LAN

• 10/100/1000 Mb/s Realtek® auto negotiation Half/Full duplex capability

Form Factor

• Micro ATX Form Factor ; 22.5cm x 17.0cm

Operating System Support

• Microsoft® Window® XP / Vista / 7 / 8 / 10

Dimension

• (W x D x H) : 17.00 x 22.50 x 3.70 cm
• Net Weight    0.41 KG

Package Dimension

• (W x D x H) : 24.00 x 28.00 x 6.00 cm
• Gross Weight    0.60 KG
