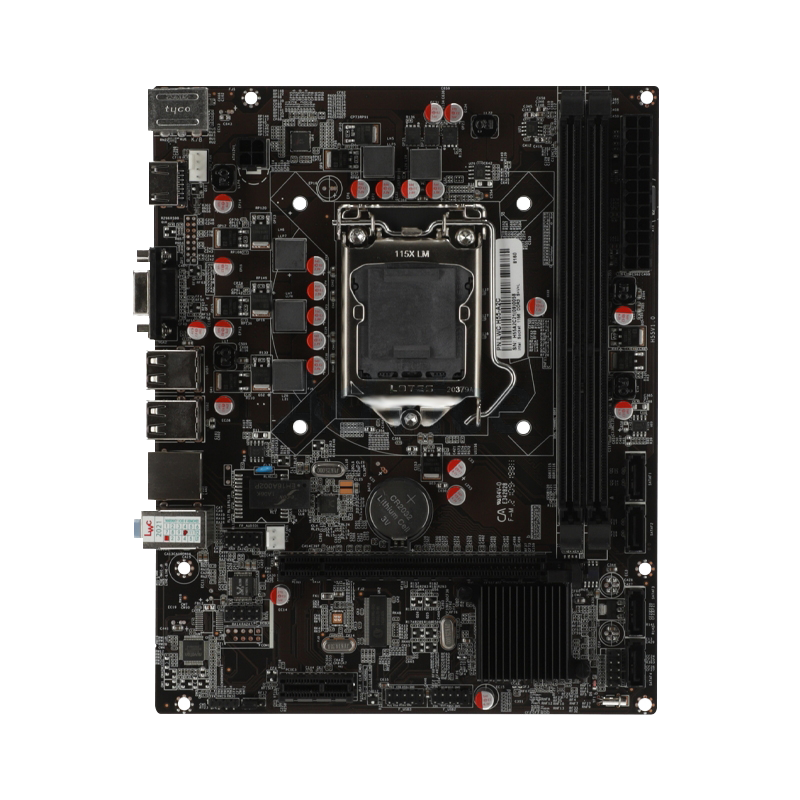

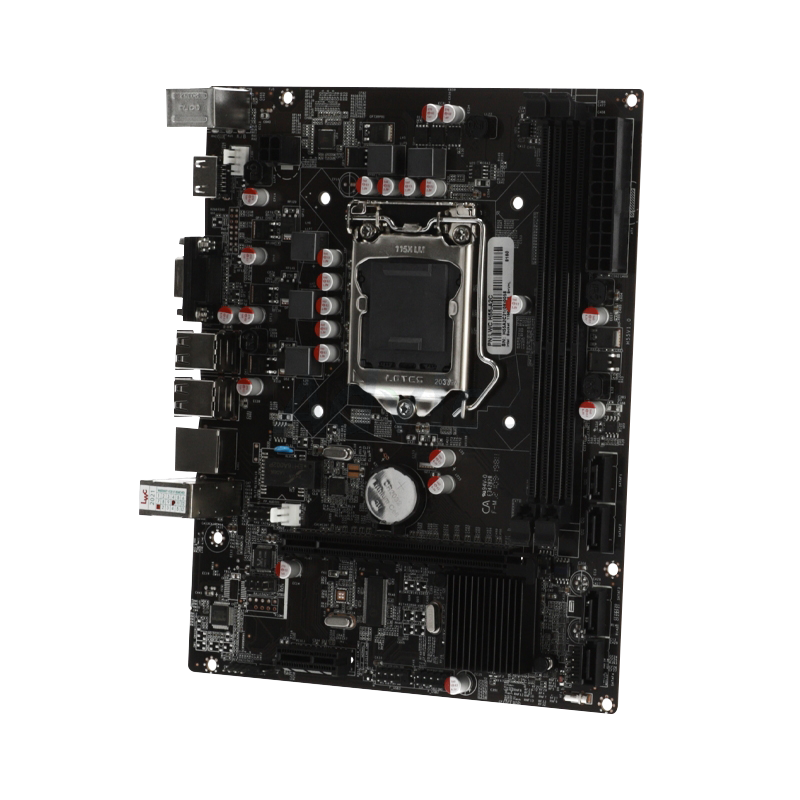

LONGWELL H55-A2C MAINBOARD SOCKET 1156 CHIPSET INTEL H55

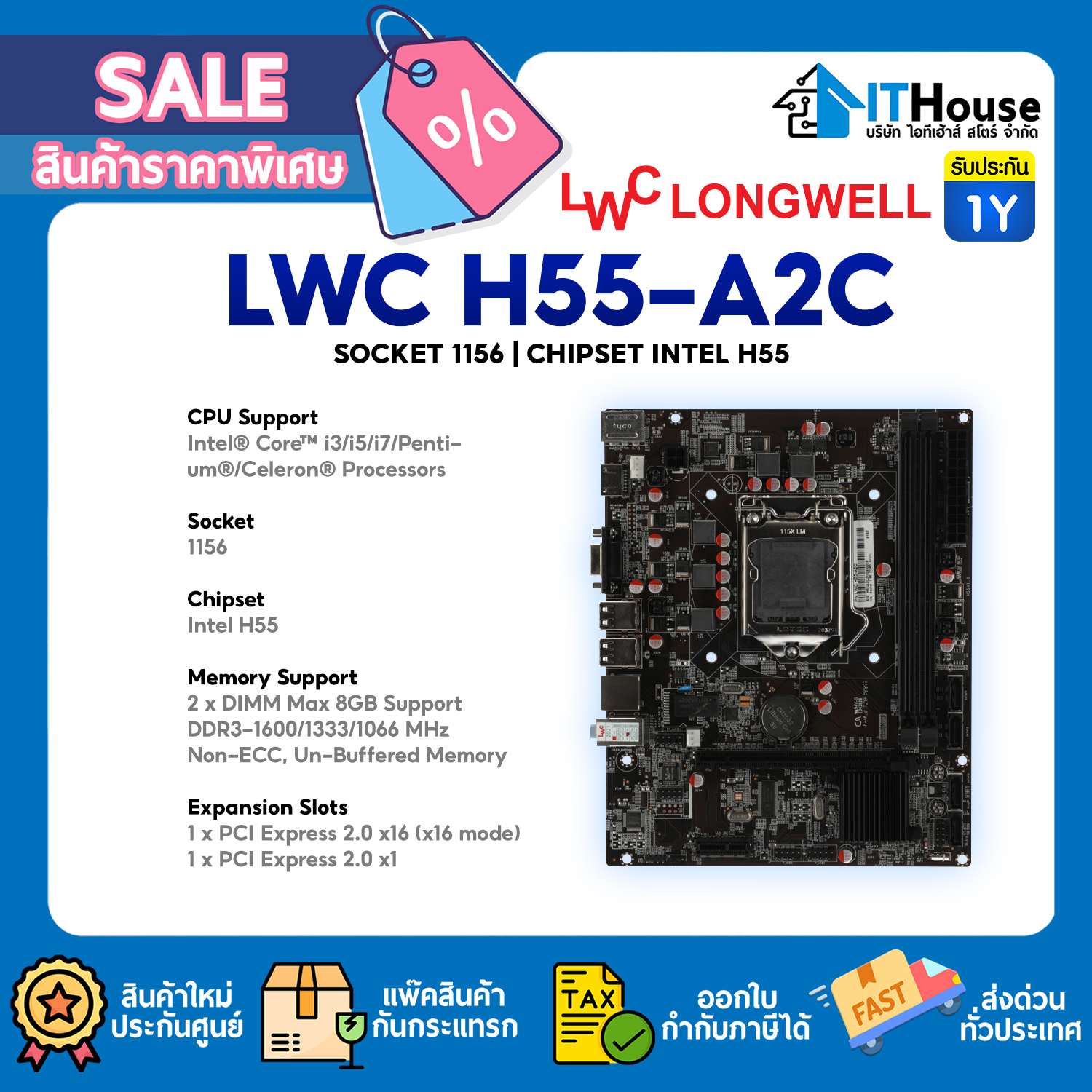

CPU Support

• Intel® Core™ i3/i5/i7/Pentium®/Celeron® Processors

Socket

• 1156

Chipset

• Intel H55

Memory Support

• 2 x DIMM Max 8GB Support DDR3-1600/1333/1066 MHz Non-ECC, Un-Buffered Memory

Graphics

• N/A

Multi Graphic Support

• None

Audio

• Realtek High Definition Audio Code

Expansion Slots

• 1 x PCI Express 2.0 x16 (x16 mode)
• 1 x PCI Express 2.0 x1

Storage

• 4 x SATA II 3.0Gb/s Connector

USB

• N/A

Internal I/O Connectors

• 1 x 24-pin EATX Power Connector
• 1 x 4-pin ATX 12V Power Connector
• 1 x CPU Fan Connector
• 1 x System Fan Connector
• 2 x F USB 2.0 Connector
• 1 x CMOS
• 1 x Front Panel Audio Connector (AAFP)
• 1 x Speaker Connector
• 1 x System Panel Connector

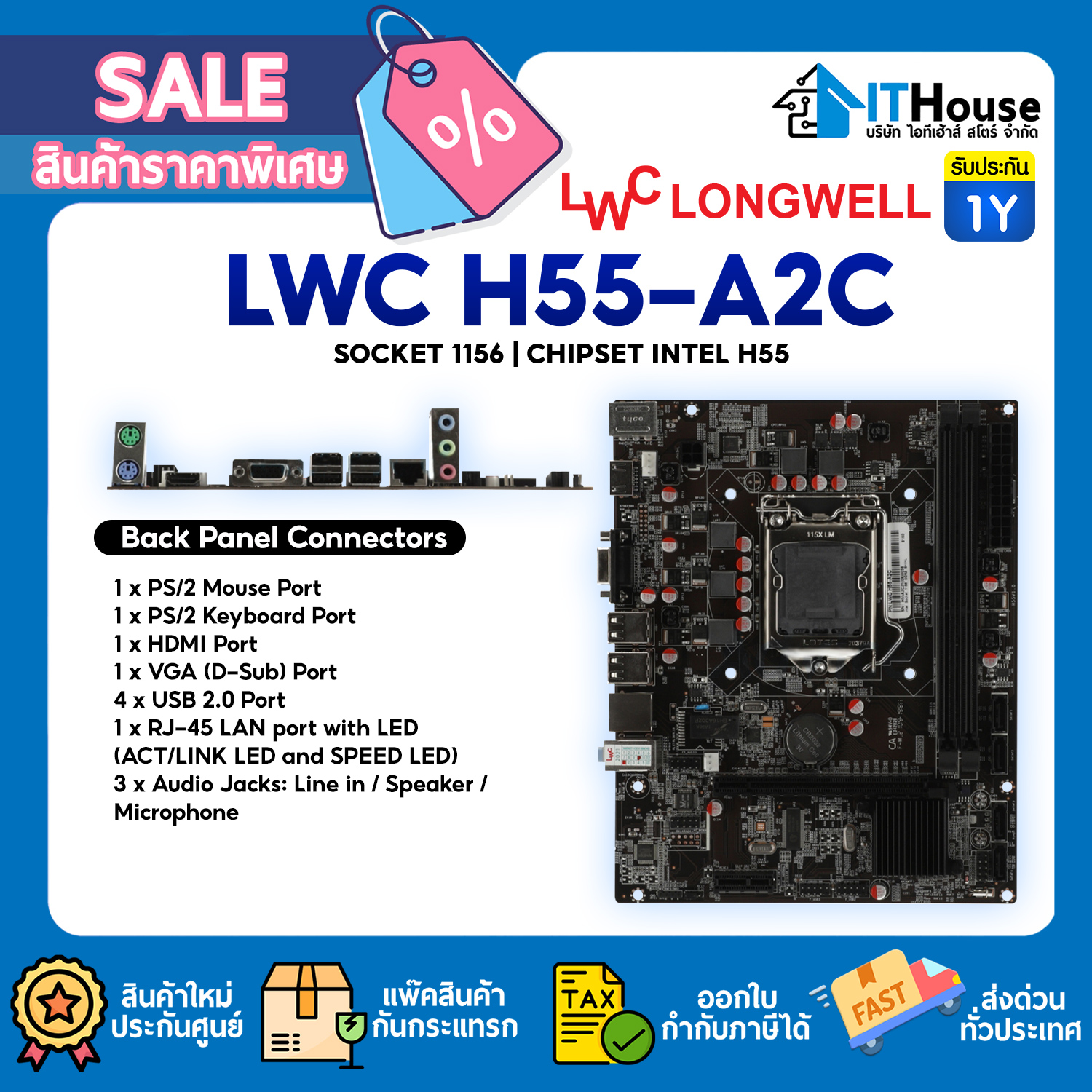

Back Panel Connectors

• 1 x PS/2 Mouse Port
• 1 x PS/2 Keyboard Port
• 1 x HDMI Port
• 1 x VGA (D-Sub) Port
• 4 x USB 2.0 Port
• 1 x RJ-45 LAN port with LED (ACT/LINK LED and SPEED LED)
• 3 x Audio Jacks: Line in / Speaker / Microphone

LAN

• 10/100 Mb/s auto negotiation Half/Full duplex capability

Wireless Data Network

• None

Form Factor

• Micro ATX Form Factor Dimension: 21.0 cm x 17.0cm

H/W Monitoring

• N/A

BIOS

• N/A

Special Features

• N/A

Software Features

• N/A

Operating System Support

• Microsoft Window XP / Vista / 7 / 8 / 8.1 / 10
