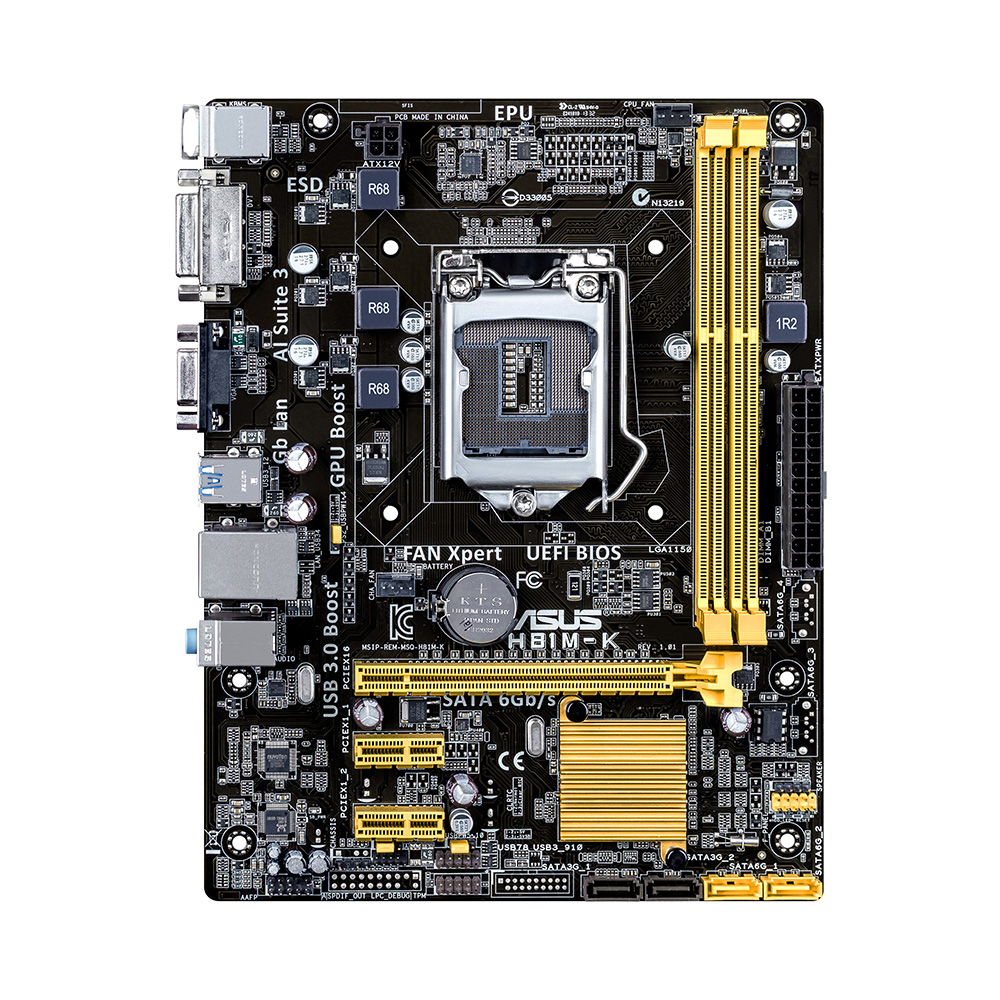

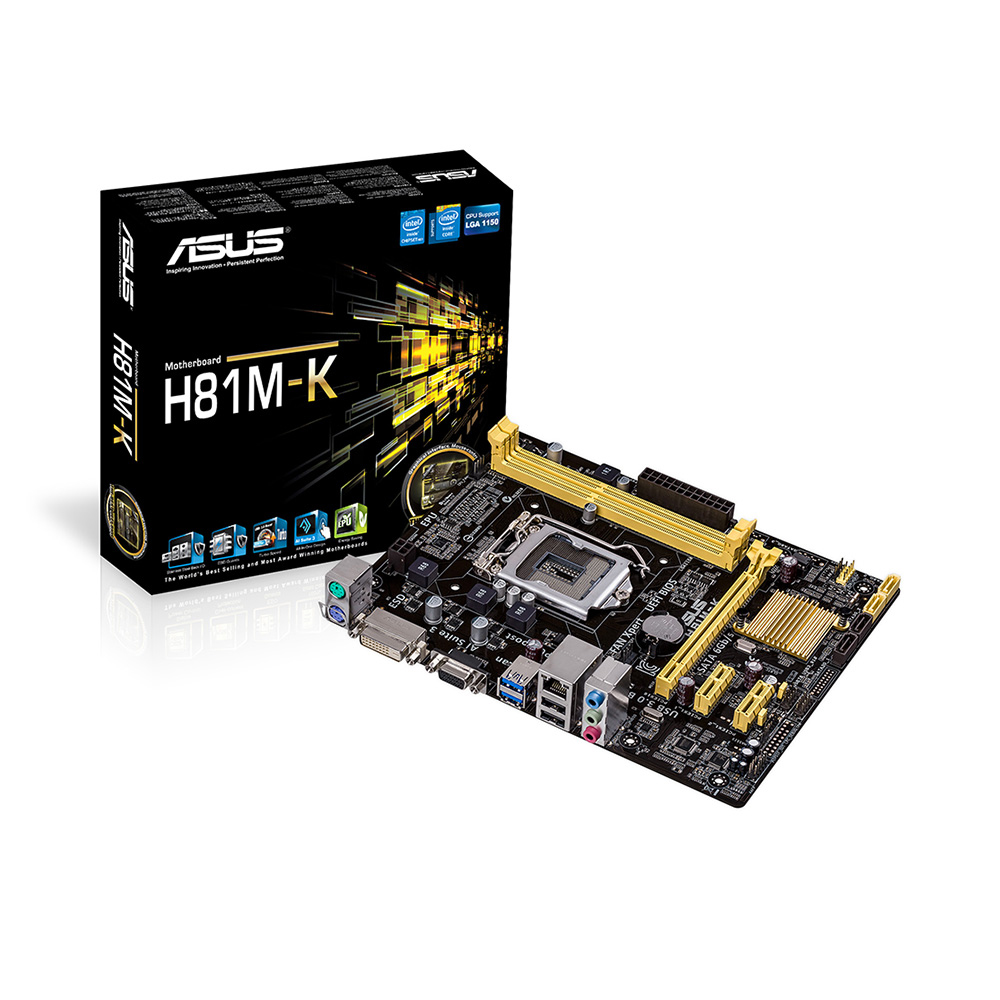

MAINBOARD 1150 : ASUS H81M-K DDR3 #3Y

Brand : ASUS

Model : H81M-K

CPU Support : Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Supports : Intel® 22 nm CPU

Supports Intel® Turbo Boost Technology 2.0

Socket    1150

Chipset : Intel H81

Storage : 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

Memory Support    : 2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

Graphics    Integrated Graphics Processor

Multi-VGA output support : DVI/RGB ports

- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz

- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz

Maximum shared memory of 1024 MB

Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Audio Realtek® ALC887 8-Channel High Definition Audio CODEC

- Supports : Jack-detection, Front Panel Jack-retasking

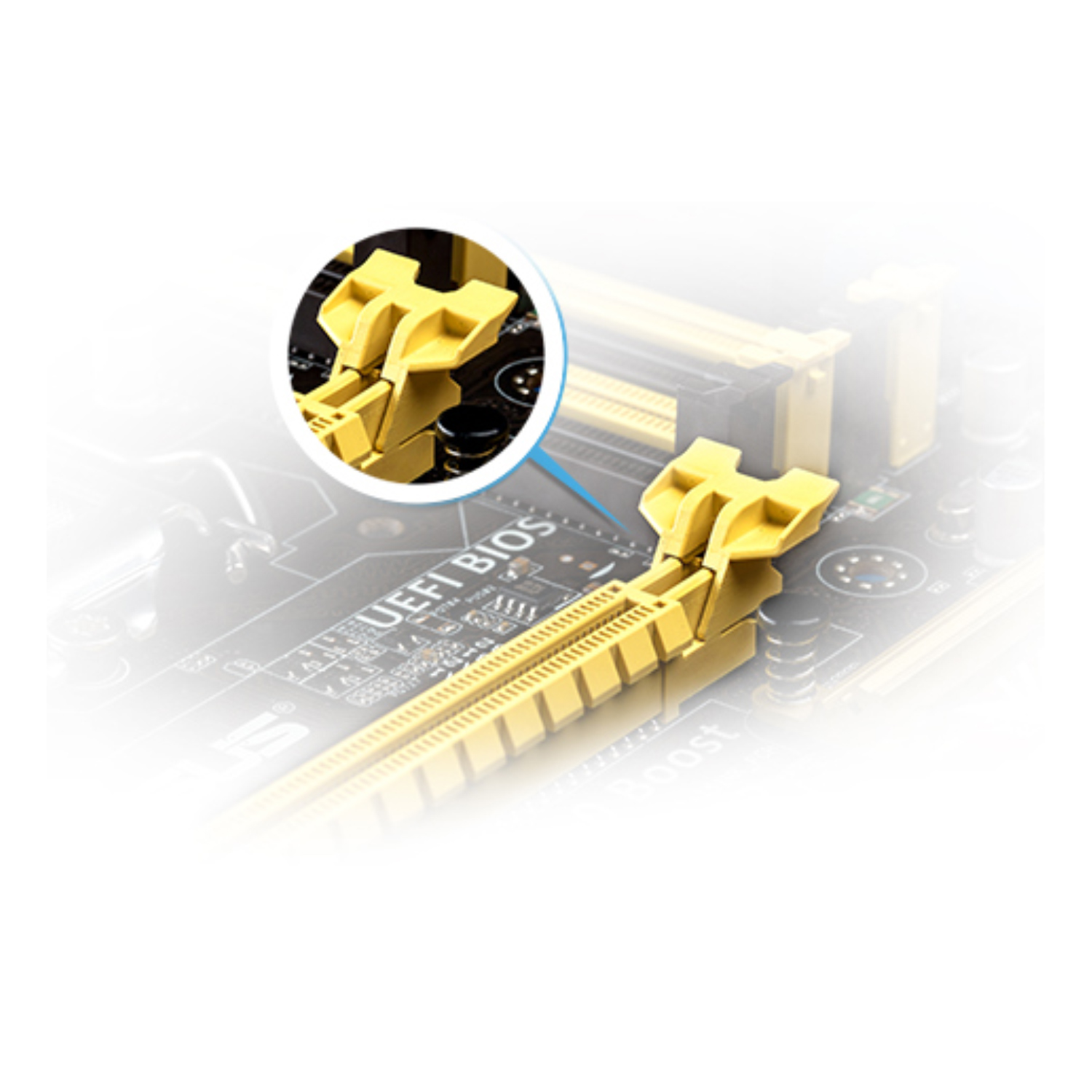

Expansion Slots    1 x PCIe x16

2 x PCIe 2.0 x1

Storage    Intel® H81 chipset :

2 x SATA 6Gb/s port(s), yellow

2 x SATA 3Gb/s port(s), dark brown,

Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology

Internal I/O Connectors    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

2 x SATA 6Gb/s connector(s)

2 x SATA 3Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

1 x Chassis Fan connector(s) (1 x 4 -pin)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x Front panel connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x Internal speaker connector(s)

1 x Clear CMOS jumper(s)

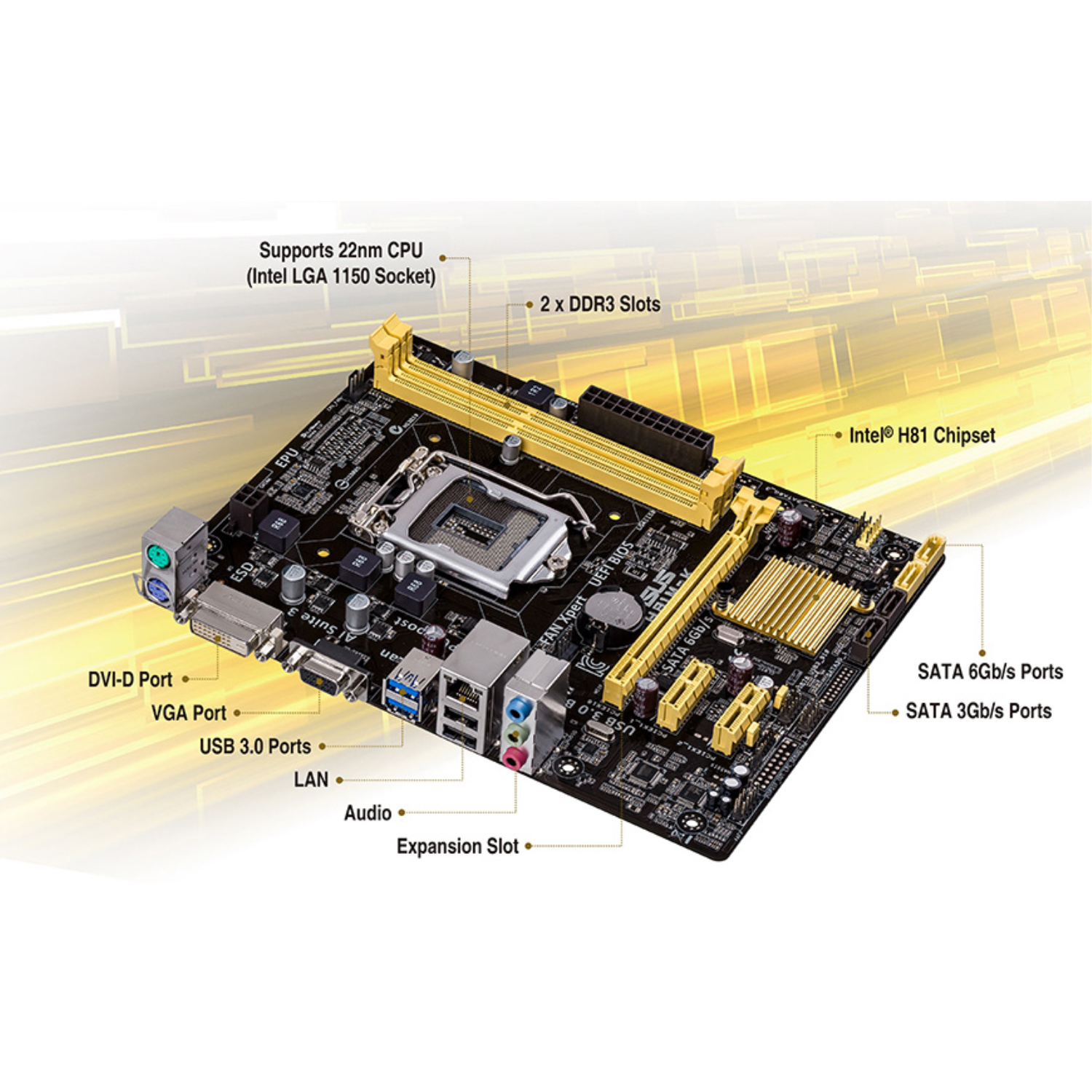

Back Panel Connectors    1 x PS/2 keyboard (purple)

1 x PS/2 mouse (green)

1 x DVI

1 x D-Sub

1 x LAN (RJ45) port(s)

2 x USB 3.0 (blue)

2 x USB 2.0

3 x Audio jack(s)

LAN    Realtek® 8111G, 1 x Gigabit LAN Controller(s)

Form Factor    uATX Form Factor

8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm )
