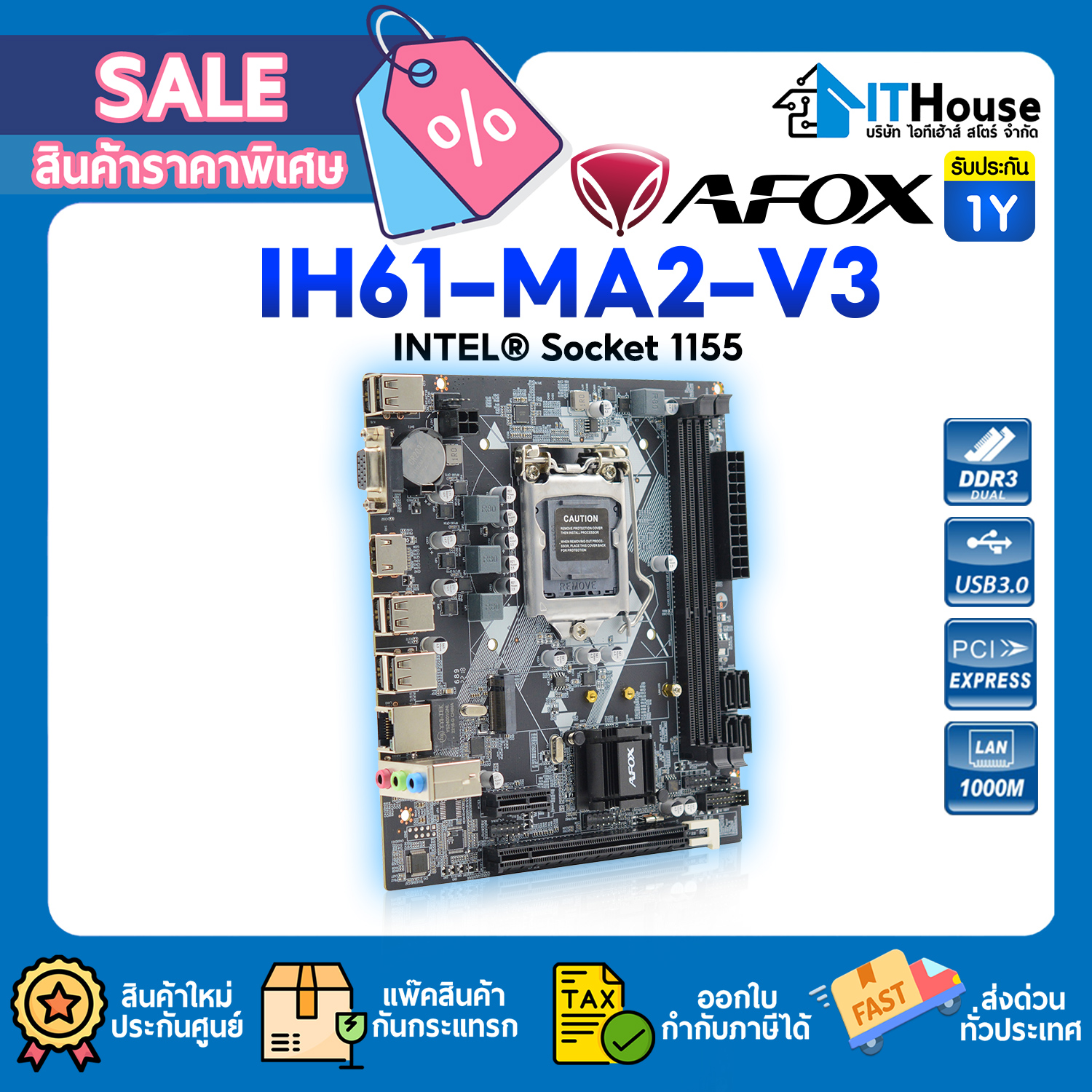

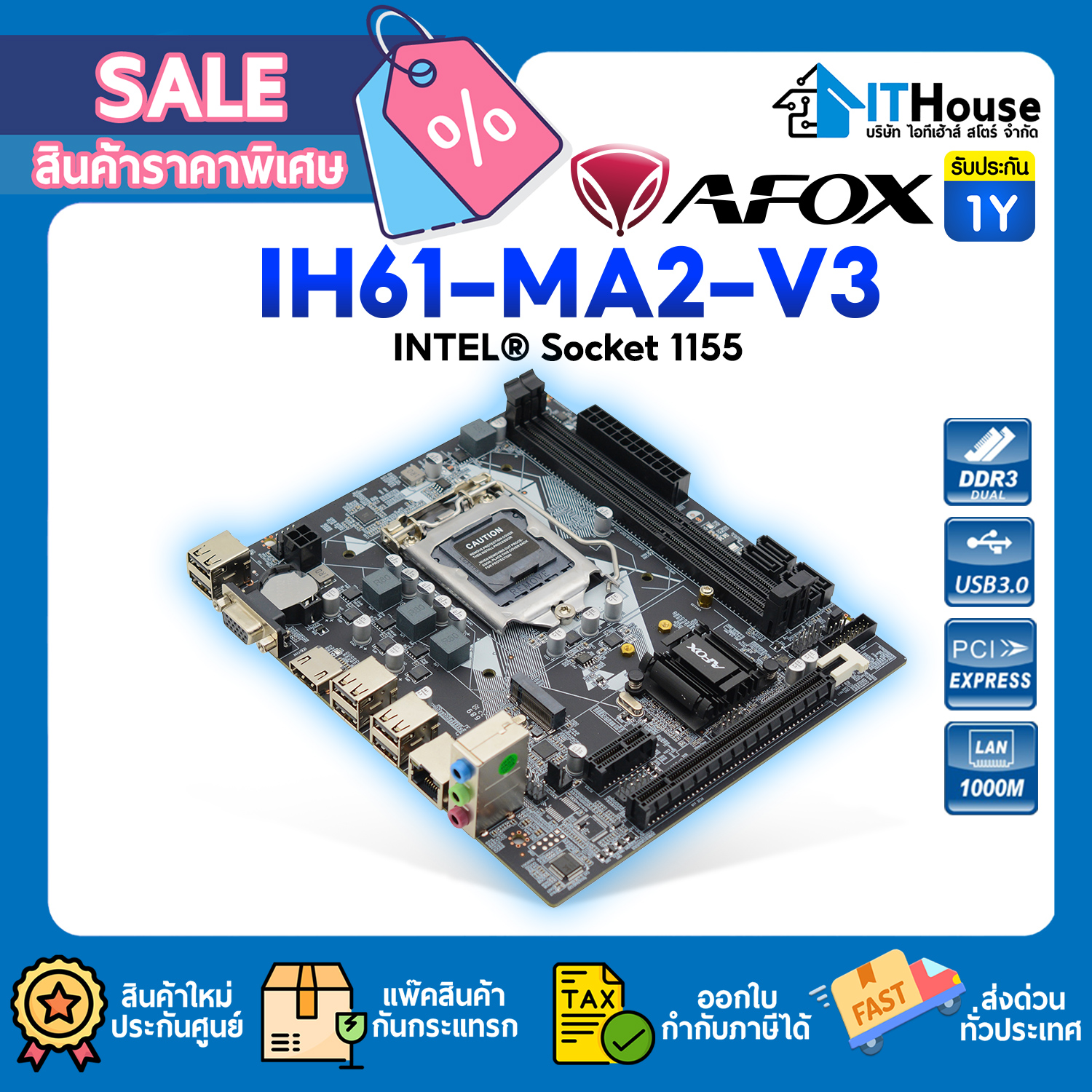

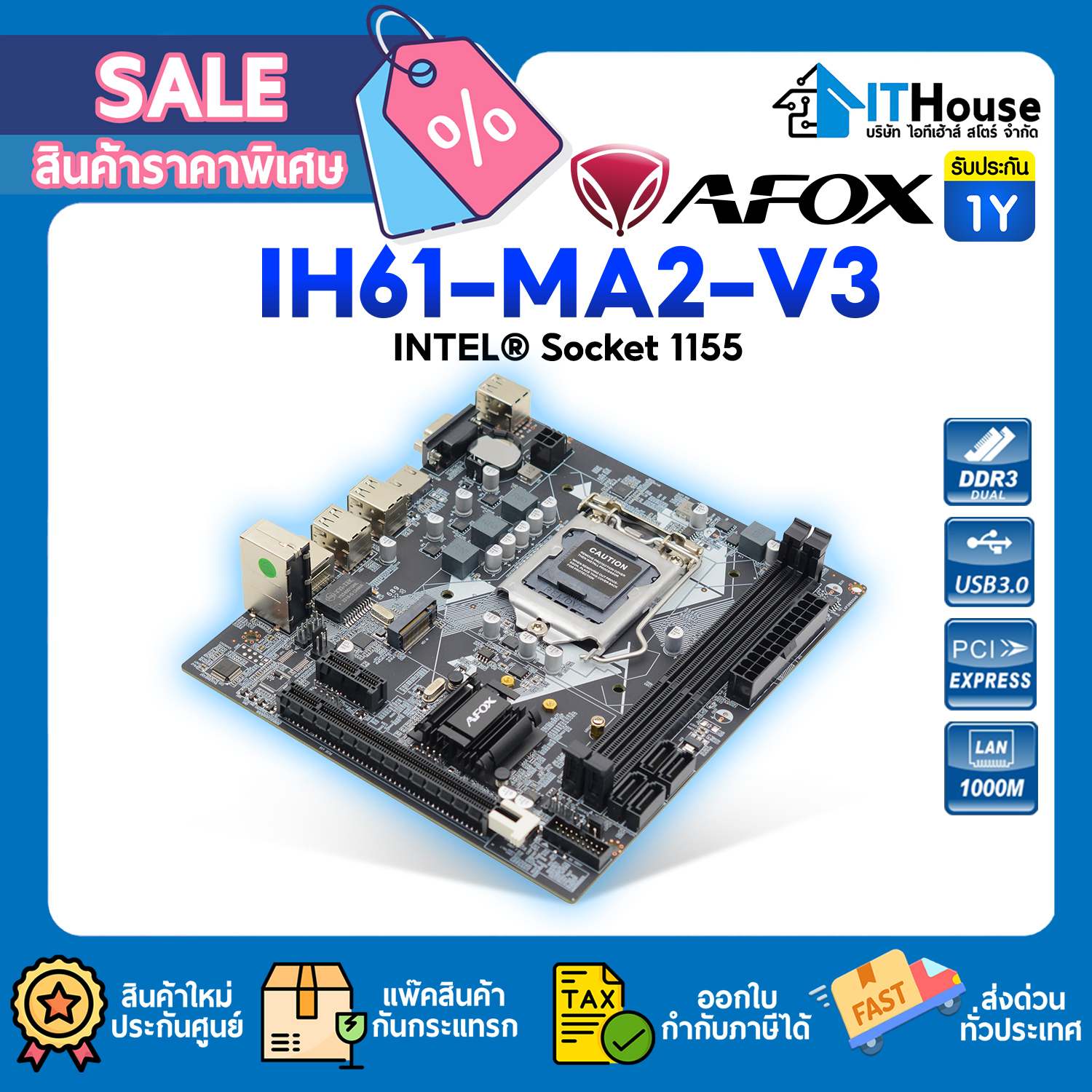

MAINBOARD AFOX IH61-MA2-V3 SOCKET 1155 CHIPSET Intel H61

MAINBOARD (1155) AFOX IH61-MA2-V3

• Model    IH61-MA2-V3

CPU Support

• Intel Core™  i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors (CPU up to 95 watts)

Socket

• 1155

Chipset

• Intel® H61

Memory Support

• Dual Channel DDR3 1066 / 1333 / 1600MHz
• 2 x Memory Slots (Max. capacity of system memory 16GB)

Graphics

• Integrated Graphics Processor

Audio

• Realtek 662 on board, Supports 6-channel audio-out

Expansion Slots

• 1 x PCI Express x16 slot
• 1 x PCI Express x1 slot

Storage

• 4 x SATA2, 1 x M.2 (PCIe NVMe Gen3 x4 )

USB

• 6 x USB 2.0 Ports

Internal I/O Connectors

• 1 x USB 2.0 pinheader (supports additional 2 USB 2.0s)
• 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s)
• 1 x Front Panel Audio pinheader
• 1 x LPC DEBUG

Back Panel Connectors

• 1 x HDMI Port
• 1 x D-Sub (VGA) Port
• 6 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 3 x HD Audio Jacks (Line in / Front Speaker / Microphone)

LAN

• Realtek RTL8105/8106 10/100Mbps Ethernet on board

Form Factor

• Micro-ATX (17*19cm)

H/W MONITORING

• N/A

BIOS

• UEFI BIOS

Operating System Support

• Microsoft Windows 8 compatible

-----------------------
