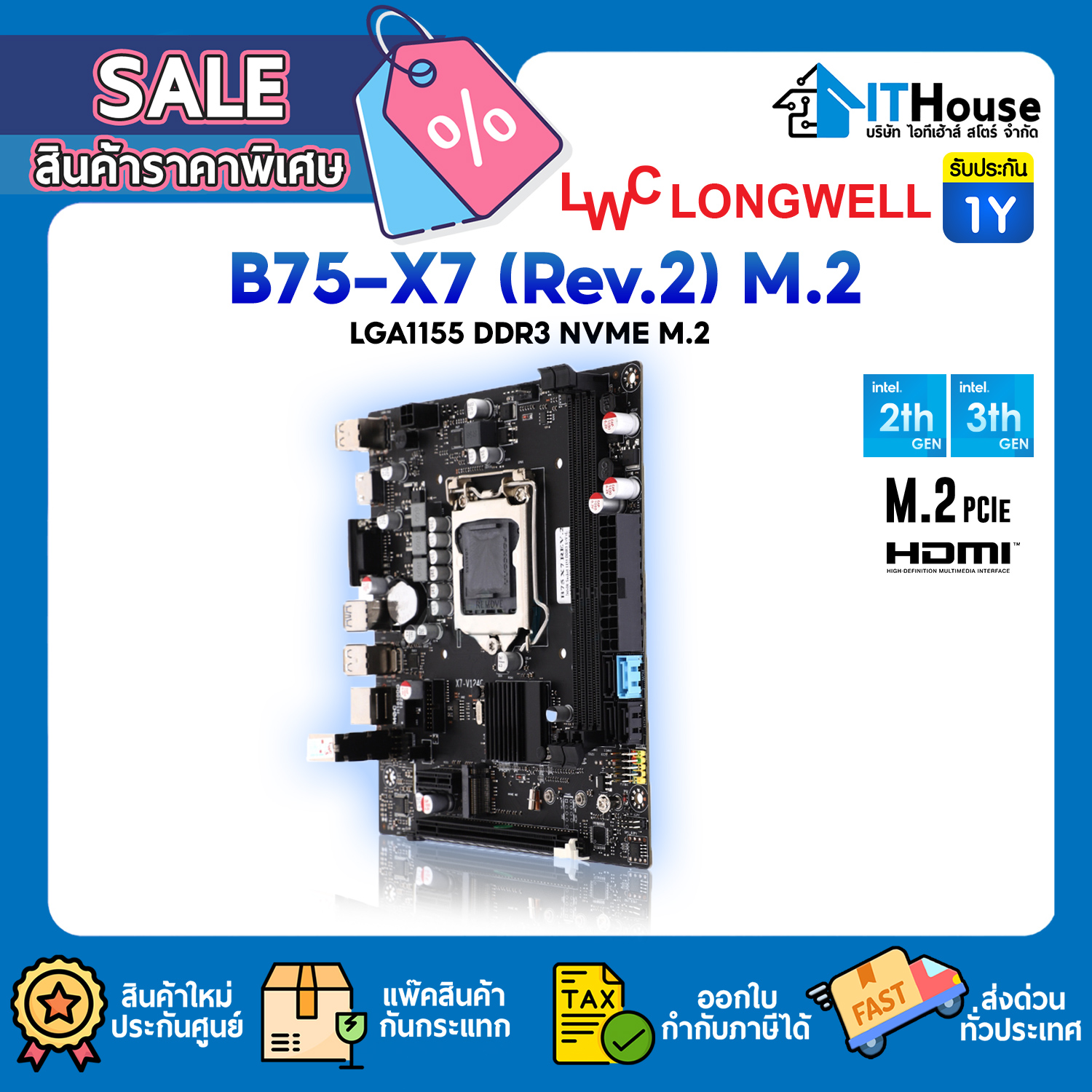

MAINBOARD LONGWELL B75-X7(Rev.2) M.2 LGA 1155

✅ Specifications:

Brand    LONGWELL

Model    B75-X7 (REV.2.0)

CPU Support

• Intel® 2nd/3rd Generation Core™ i3/i5/i7/Pentium®/Celeron® Processors

CPU Brand

• Intel

Socket

• LGA1155

Chipset

• Intel® B75

Memory Support

• Dual Channel DDR3 Memory Technology

Memory Type

• DDR3

Memory Bus

• 1600/1333/1066 MHz Non-ECC, Un-Buffered

Maximum Memory Bus

• 1600

Memory Slot

• 2

Graphics

• N/A

Multi Graphic Support

• None

Audio

• Realtek® ALC 662 Channel High Definition Audio CODEC

Expansion Slots

• 1 x PCI Express 2.0 x16 (x16 mode)
• 1 x PCI Express 2.0 x1

Maximum PCIe Version

• PCIe 2.0

Storage

• 3 x SATA II 3.0Gb/s Connector
• 1 x SATA III 6.0Gb/s Connector
• 1 x NVME M.2

M.2 Storage Type Support

• NVMe

M.2 Slot

• 1

USB

• 4 x USB 2.0 Ports
• 2 x USB 3.0 Ports

Internal I/O Connectors

• 1 x 24-pin EATX Power Connector
• 1 x 4-pin ATX 12V Power Connector
• 1 x CPU Fan Connector
• 1 x System Fan Connector
• 1 x F USB 2.0 Connector
• 1 x COM port Connector
• 1 x Front Panel Audio Connector (AAFP)
• 1 x Speaker Connector
• 1 x System Panel Connector

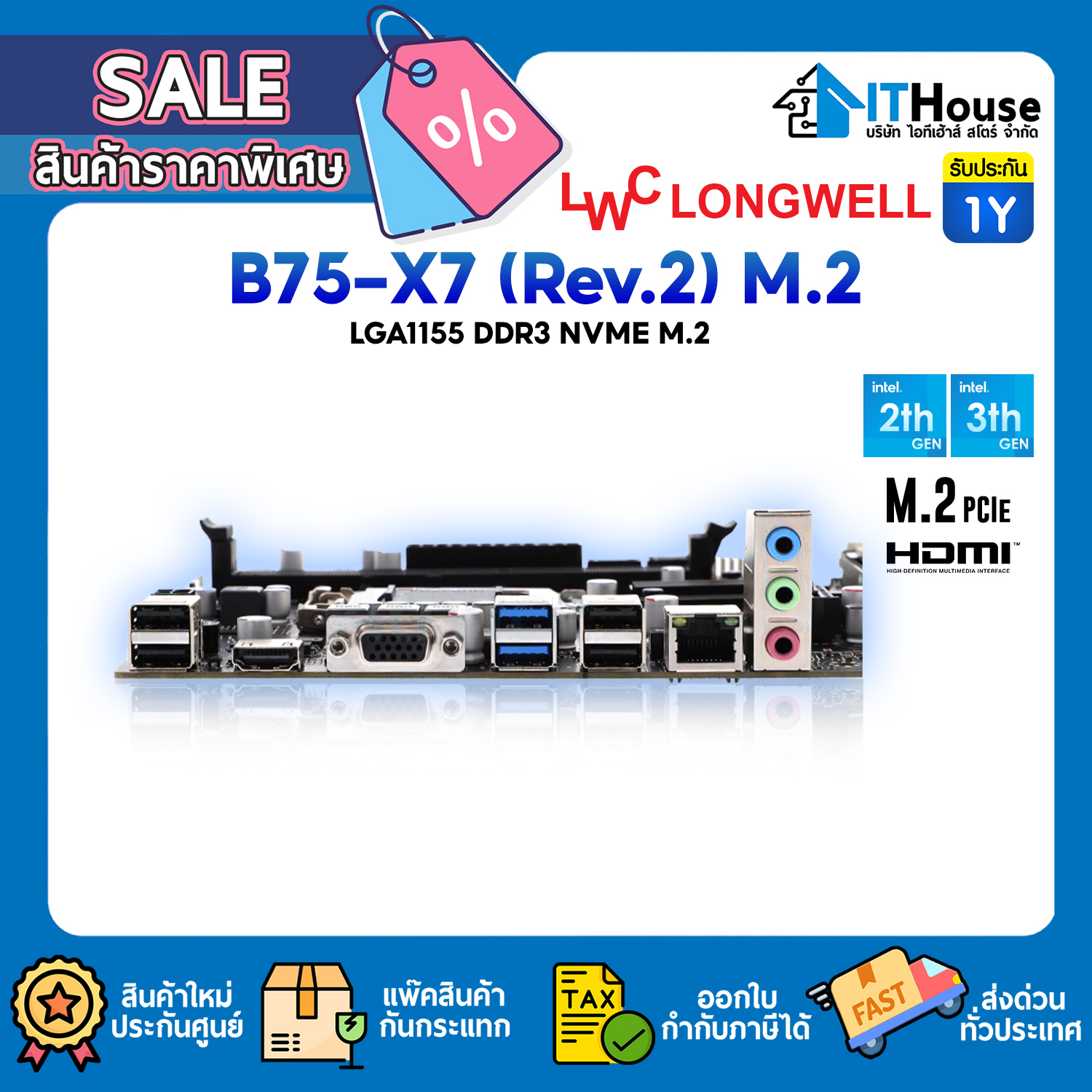

Back Panel Connectors

• 1 x PS/2 Mouse/Keyboard Port
• 1 x HDMI Port
• 1 x VGA (D-Sub) Port
• 4 x USB 2.0 Ports
• 2 x USB 3.0 Ports
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• 3 x Audio Jacks: Line in / Speaker / Microphone

LAN

• 10/100 Mb/s auto negotiation Half/Full duplex capability
• Realtek® RTL8105E

Wireless Data Network

• None

Form Factor

• Micro ATX Form Factor Dimension: 19.0 cm*17.0cm

H/W Monitoring

• N/A

BIOS

• N/A

Special Features

• Smart Fan Mode(Temperature control)

Software Features

• N/A

Operating System Support

• Microsoft® Window® XP / Vista / 7 / 8 / 10

Package Contents

• 1 x SATA cable
• 1 x I/O Rear Panel
• 1 x User Manual
• 1 x CD Driver
• Package Dimension    (W x D x H) : 23.00 x 28.00 x 5.50 cm
• Gross Weight    0.60 KG
