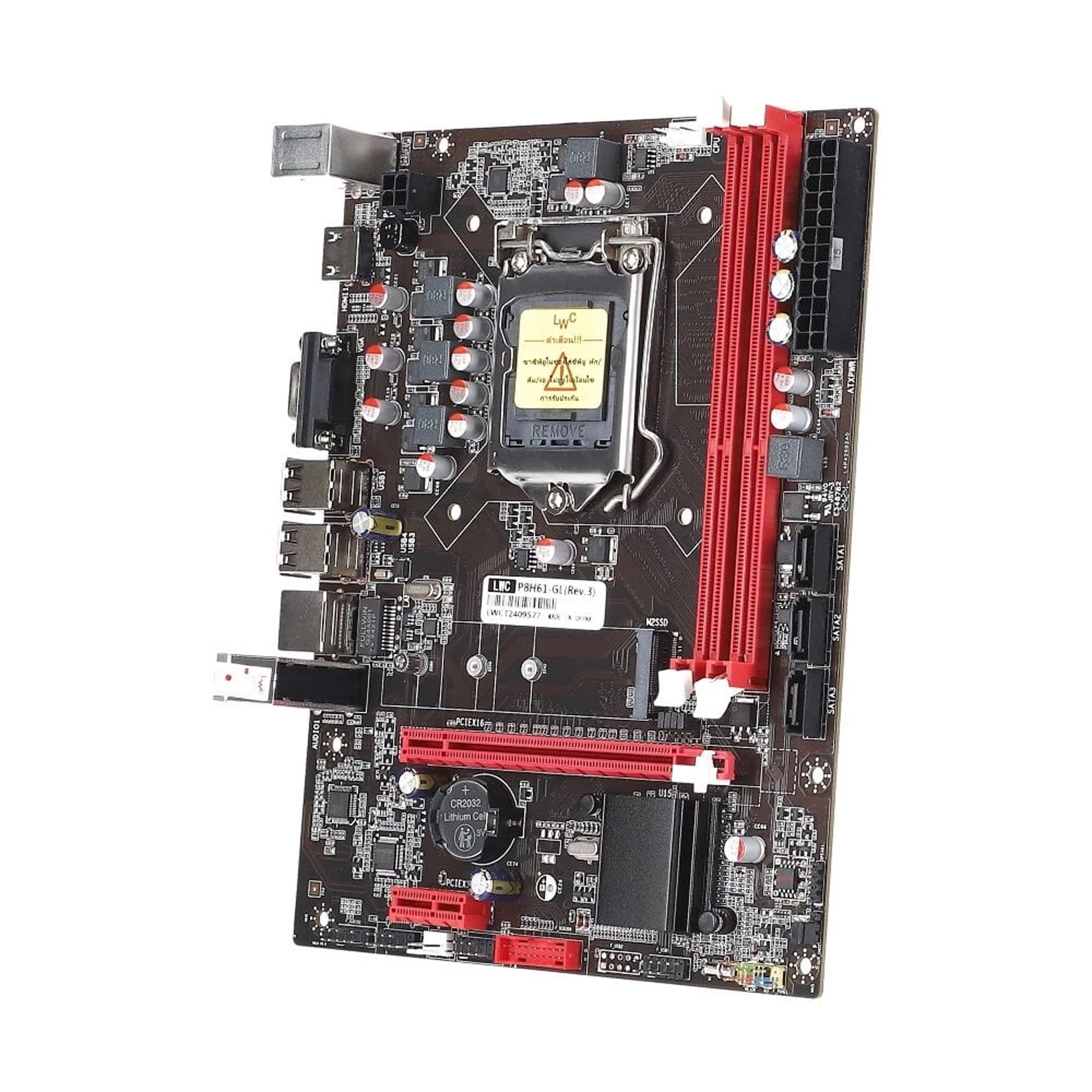

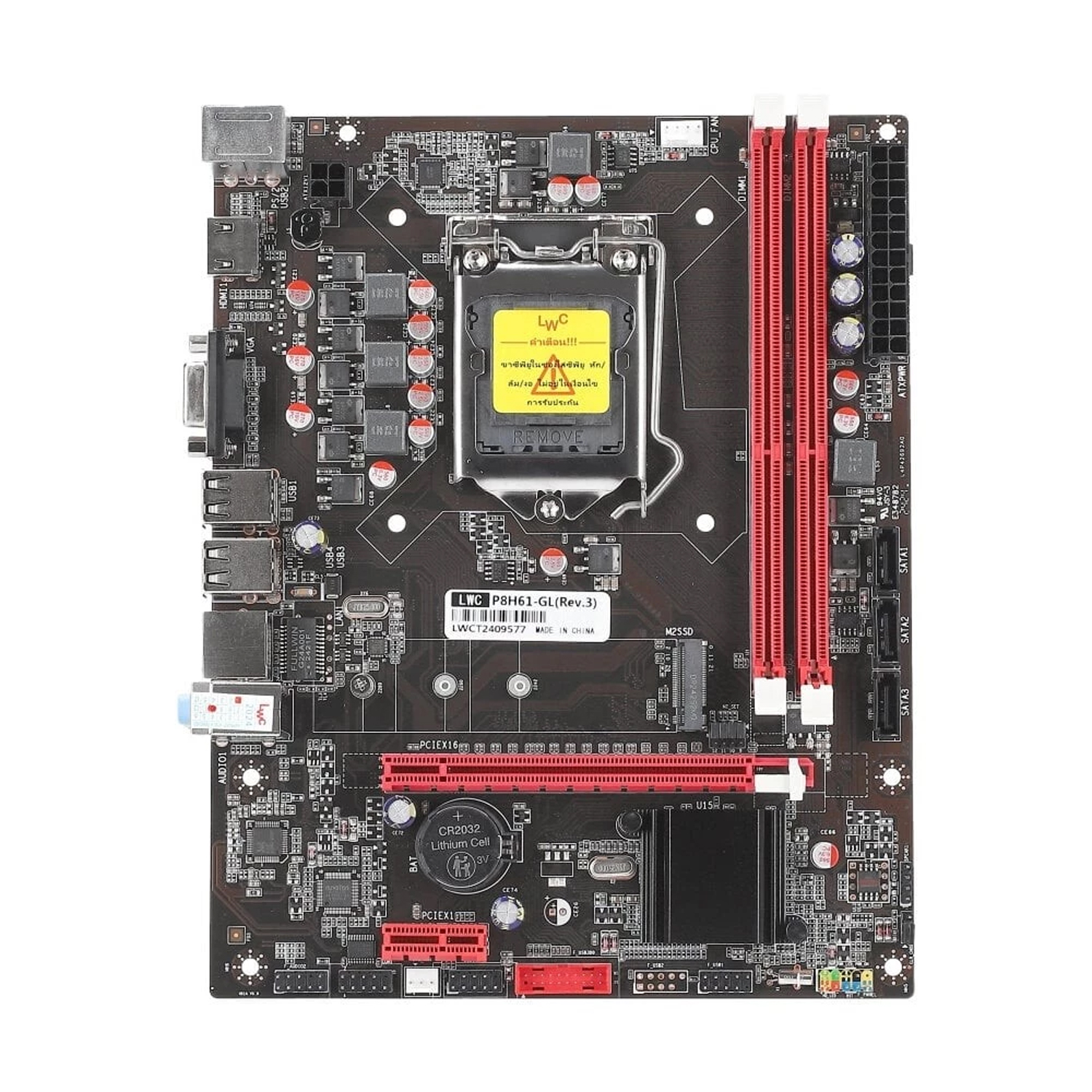

MAINBOARD 1155 : LONGWELL P8H61-GL Rev3.0 #1Y

✅ Specifications :

LONGWELL Model P8H61-GL Rev3.0

CPU Support CPU Support Intel® 2nd/3rd Generation Core™ i3/i5/i7/Pentium®/Celeron® Processors

CPU Brand Intel

Socket 1155

Chipset Intel H61

Memory Support Memory Dual Channel DDR3 Memory Technology

2 x DDR3 DIMM Slots

Support DDR3 1600/1333 MHz Non-ECC, Un-Buffered

Max.capacity up to 16GB Memory

Maximum Memory Bus1600

Graphics N/A

Multi Graphic Support None

Audio Audio Realtek® ALC 661,662 Channel High Definition Audio CODEC

Expansion Slots1 x PCI Express 2.0 x16 (x16 mode)

1 x PCI Express 2.0 x1

Maximum PCIe VersionPCIe 2.0

Storage 3 x SATA II 3.0Gb/s Connector

1 x M.2 NVME

M.2 Storage Type SupportNVMe

M.2 Slot1

USB 4 x USB 2.0 Port

Internal I/O Connectors1 x 24-pin ATX Power Connector

1 x 4-pin ATX 12V Power Connector

1 x CPU Fan Connector

1 x System Fan Connector

1 x USB 3.0 Connector

1 x USB 2.0 Connector

1 x Front Panel Audio Connector

1 x Speaker Connector

Back Panel Connectors1 x HDMI Port

1 x VGA (D-Sub) Port

4 x USB 2.0 Port

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

3 x Audio Jacks: Line in / Speaker / Microphone

LAN LAN 10/100/1000 Mb/s auto negotiation Half/Full duplex capability

Realtek® RTL8111E

Wireless Data Network None

Form Factor Micro ATX

H/W Monitoring N/A

BIOS N/A

Special Features N/A

Software Features N/A

Operating System Support Microsoft Window XP / Vista / 7 / 8 / 10

Package Contents 1 x SATA cable

1 x I/O Rear Panel

1 x User Manual

1 x CD Driver
