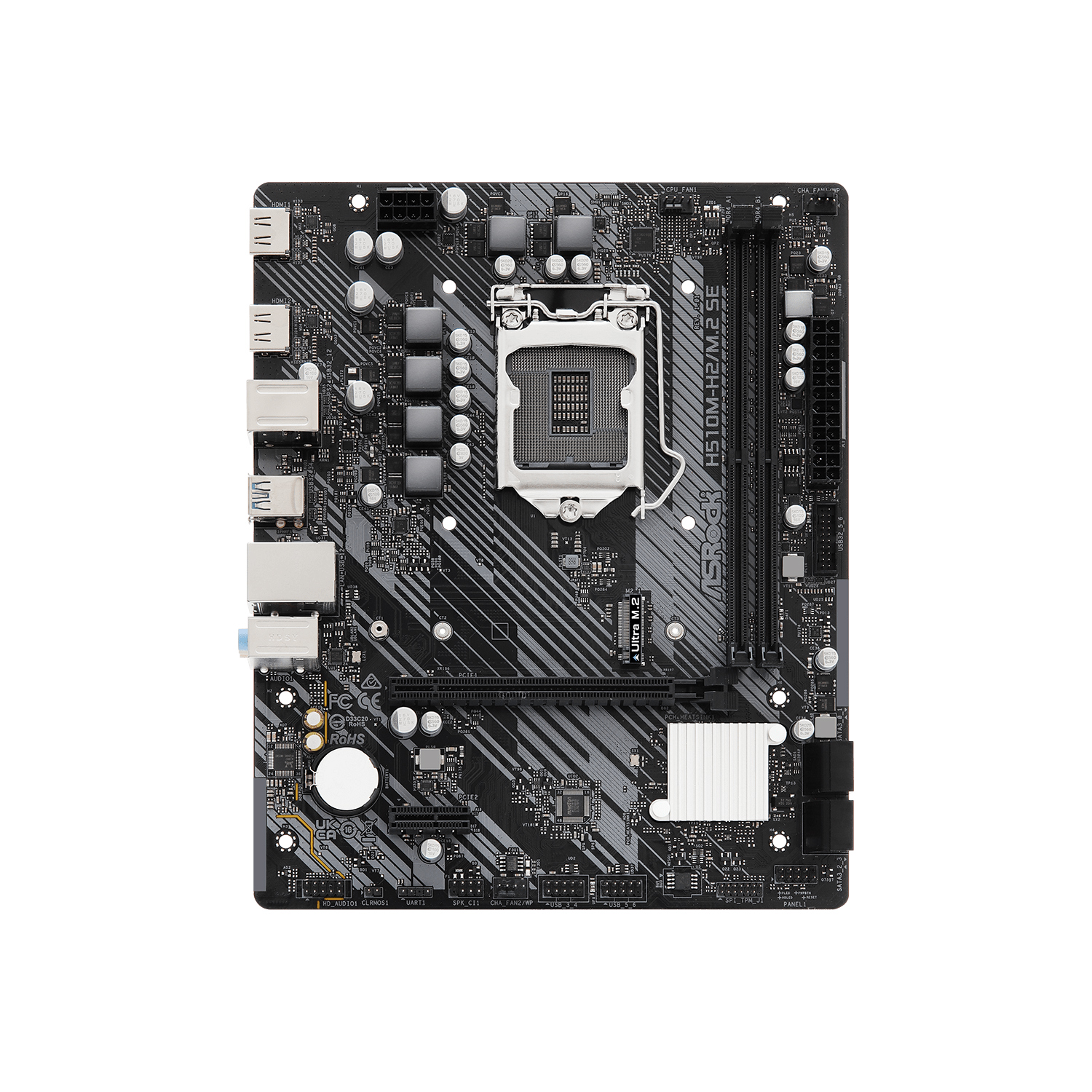

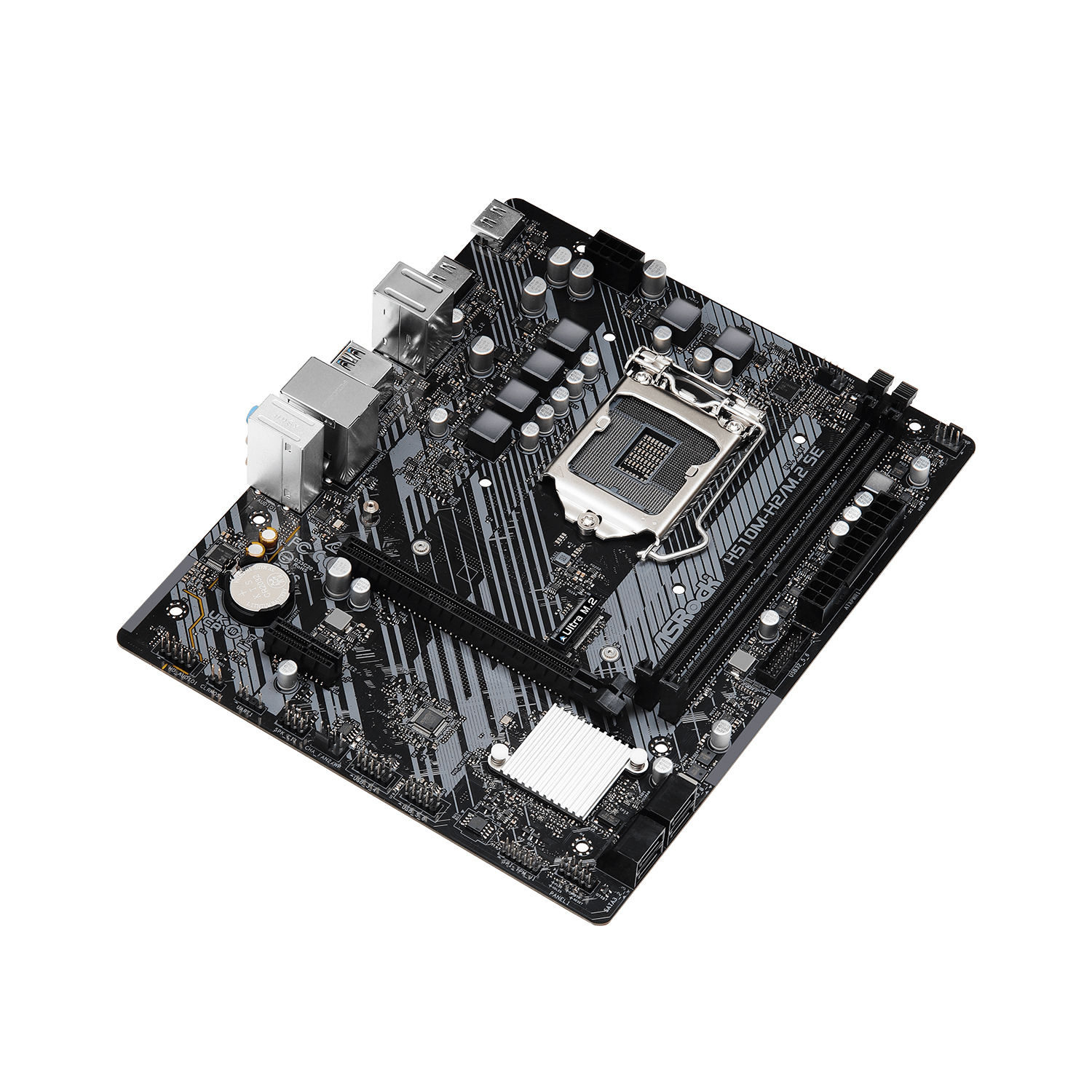

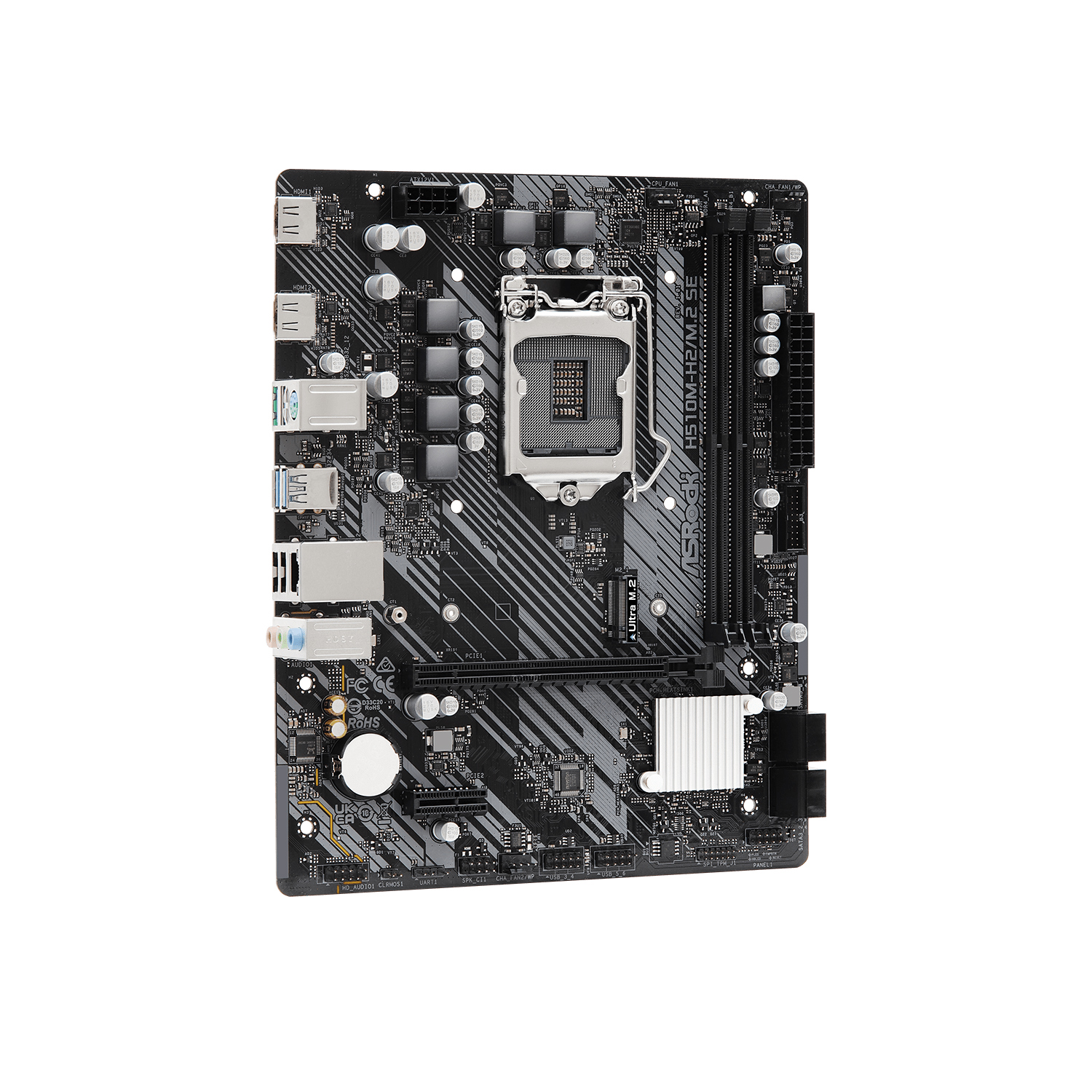

MAINBOARD 1200 : ASROCK H510M-H2/M.2 SE DDR4 #3Y

🟢SPECIFICATION

▪️ Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200)

▪️ 4 Power Phase Design

▪️ Supports DDR4 3200 MHz*

▪️ Intel® H470 Chipset

▪️ 1 PCIe 4.0 x16, 1 PCIe 3.0 x1

▪️ Graphics Output Options: 2 HDMI

▪️ Realtek ALC897 7.1 CH HD Audio Codec

▪️ 4 SATA3, 1 Ultra M.2 (PCIe Gen3x4 & SATA3)

▪️ 6 USB 3.2 Gen1 (4 Rear, 2 Front),

▪️ 6 USB 2.0 (2 Rear, 4 Front)

▪️ Realtek Gigabit LAN

▪️ Supports ASRock Auto Driver Installer

Unique Feature : Rock-Solid Durability

                            - 4 Power Phase

                            EZ Update

                            - ASRock Auto Driver Installer

CPU : - Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200)

           - Supports Intel® Turbo Boost Max 3.0 Technology

Chipset : - Intel® H470

Memory : - Dual Channel DDR4 Memory Technology

                - 2 x DDR4 DIMM Slots

                - Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*

                - Supports ECC UDIMM memory modules (operate in non-ECC mode)

                - Max. capacity of system memory: 64GB**

                - Supports Intel® Extreme Memory Profile (XMP) 2.0

                - 15μ Gold Contact in DIMM Slots

BIOS :  - 128Mb AMI UEFI Legal BIOS with GUI support

Graphics : - 2 x HDMI

Audio : - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN : - Gigabit LAN 10/100/1000 Mb/s

          - Realtek 8111H

Slots  : Intel® 11th Gen & 10th Gen Processors:

            - 1 x PCIe 4.0 x16 Slot (PCIE1)*

            Intel® H470 Chipset:

            - 1 x PCIe 3.0 x1 Slot (PCIE2)**

Storage : Chipset:

- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*

- 4 x SATA3 6.0 Gb/s Connectors

RAID : - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB : - 6 x USB 3.2 Gen1 (4 Rear, 2 Front)

          - 6 x USB 2.0 (2 Rear, 4 Front)

* All USB ports support ESD Protection

Connector : - 1 x SPI TPM Header

                    - 1 x Chassis Intrusion and Speaker Header

                    - 1 x CPU Fan Connector (4-pin)*

                    - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**

                    - 1 x 24 pin ATX Power Connector

                    - 1 x 8 pin 12V Power Connector

                    - 1 x Front Panel Audio Connector

                    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

                    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

Rear Panel I/O : - 1 x PS/2 Mouse/Keyboard Port

                          - 2 x HDMI Ports

                          - 2 x USB 2.0 Ports

                         - 4 x USB 3.2 Gen1 Ports

                         - 1 x RJ-45 LAN Port

                        - HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI :

Software

- ASRock Motherboard Utility (A-Tuning)

UEFI

- ASRock EZ Mode

- ASRock Full HD UEFI

- ASRock My Favorites in UEFI

- ASRock Auto Driver Installer

- ASRock Instant Flash

Form Factor : Micro ATX Form Factor: 9.1-in x 7.36-in, 23.1 cm x 18.7 cm
