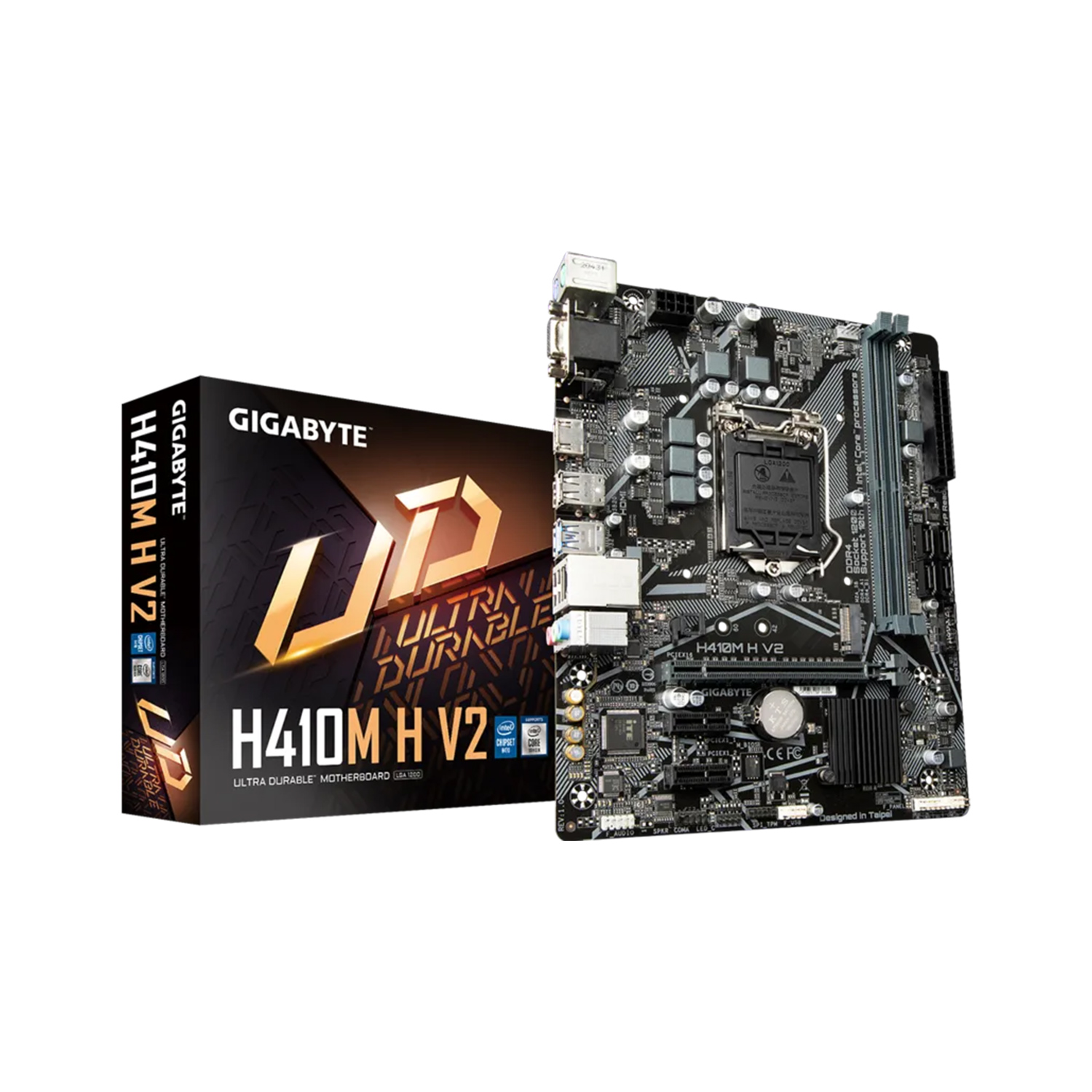

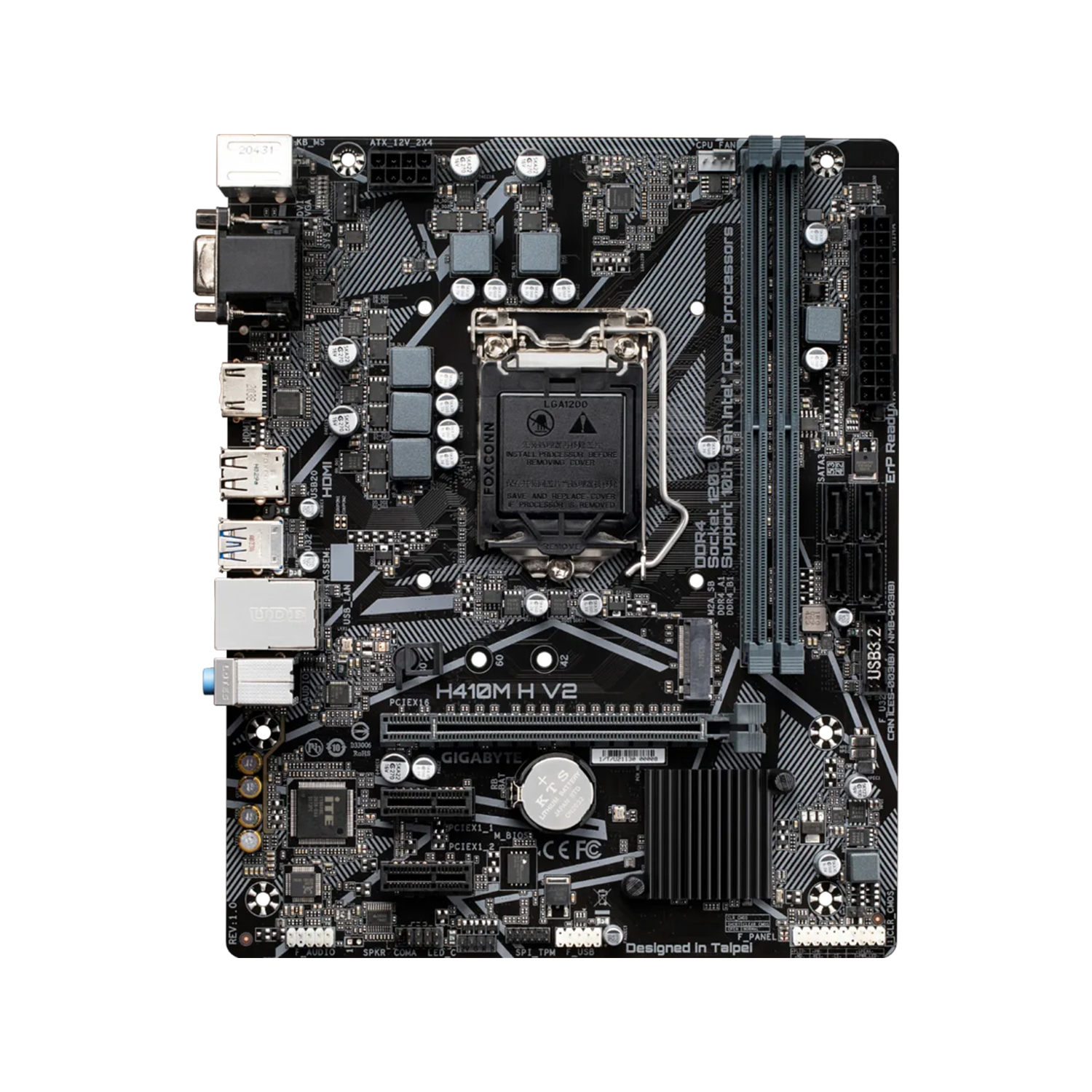

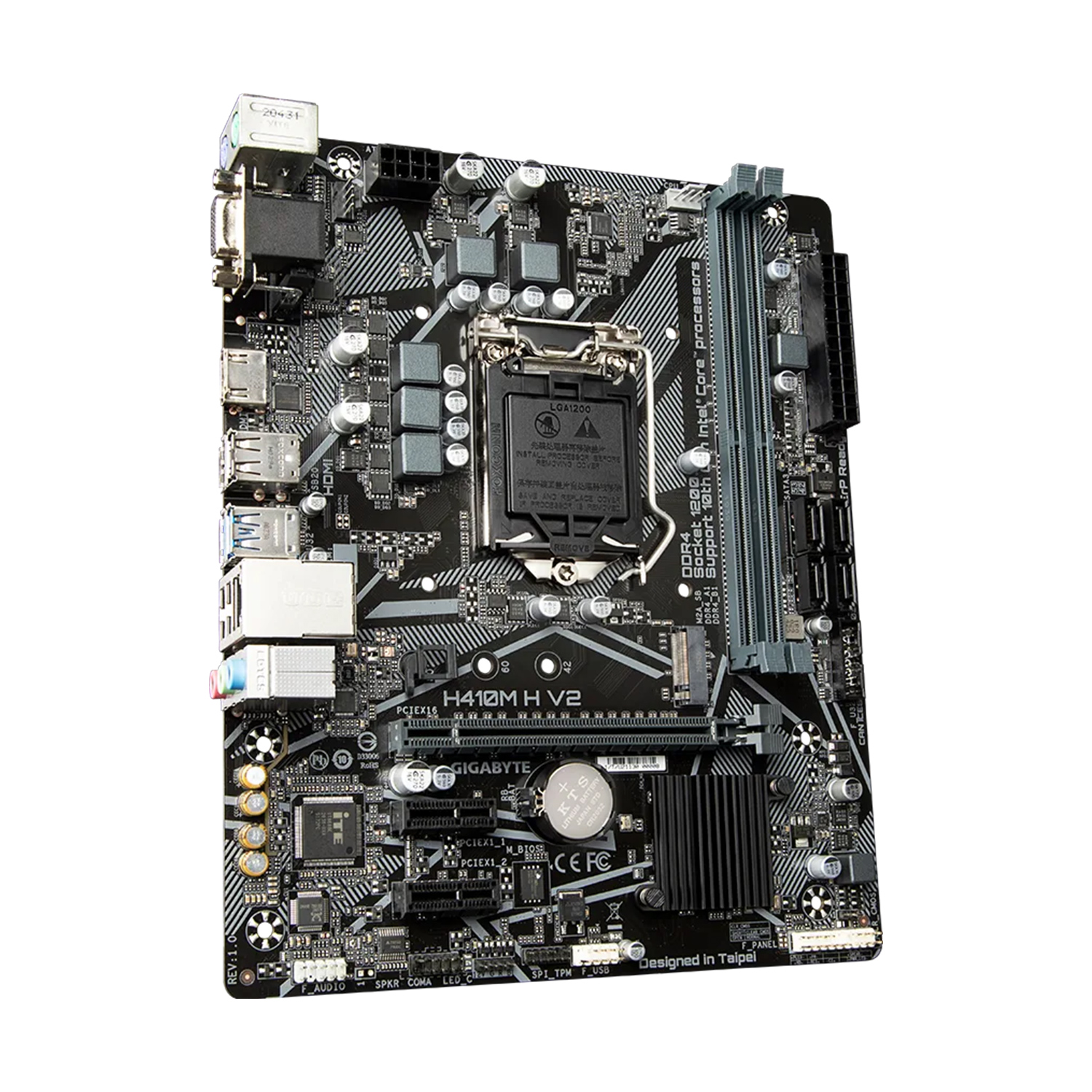

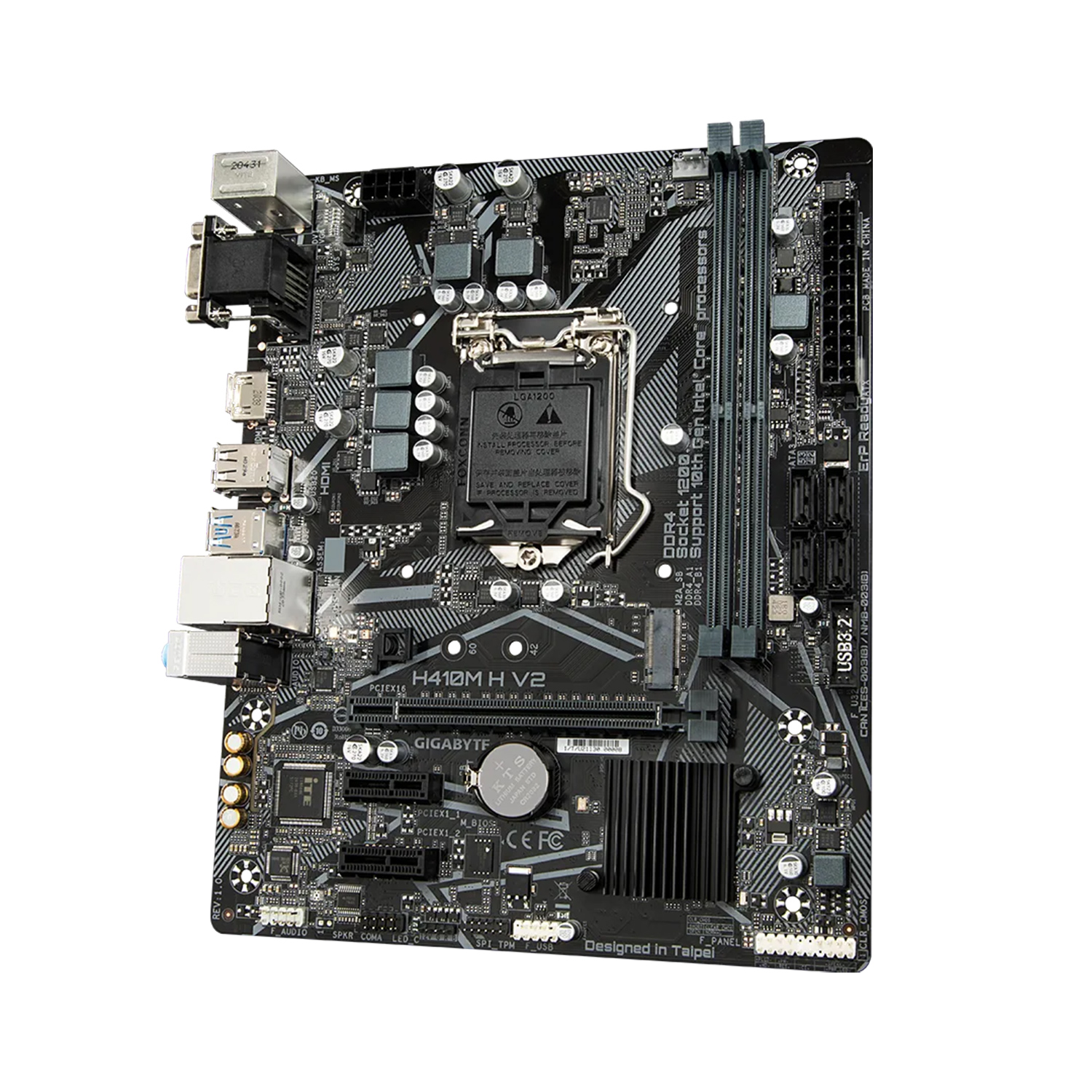

✨Intel® Ultra Durable Motherboard with Intel® GbE LAN, Anti-Sulfur Resistor, Smart Fan 5✨
Supports 10th Gen Intel®Core™ Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
8-Channel HD Audio with High Quality Audio Capacitors
NVMe PCIe Gen3 x4 2280 M.2 Connector
Intel® GbE LAN with cFosSpeed Internet Accelerator Software
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design
🟢Technical Specifications🟢
- Socket : LGA1200
- Processor: Support for 10th and 11th Generation Intel® Core™ / Pentium® / Celeron® processors
- Chipset: Intel® H470 Express Chipset
✨Memory
- Slots : 2 x DDR4 DIMM sockets
- Max Capacity : Up to 64 GB (32 GB single DIMM)
- Architecture : Dual channel memory architecture
- Speed : Support for DDR4 2933 / 2666 / 2400 / 2133 MHz
✨Storage Interface
- M.2 Slot : 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
- SATA : 4 x SATA 6Gb/s connectors
✨Graphics Output
- HDMI : 1 x HDMI port (Max resolution 4096x2160@30 Hz)
- VGA : 1 x D-Sub port (Max resolution 1920x1200@60 Hz)
✨Expansion Slots✨
- Main : 1 x PCI Express x16 slot (running at x16)
- Others : 2 x PCI Express x1 slots

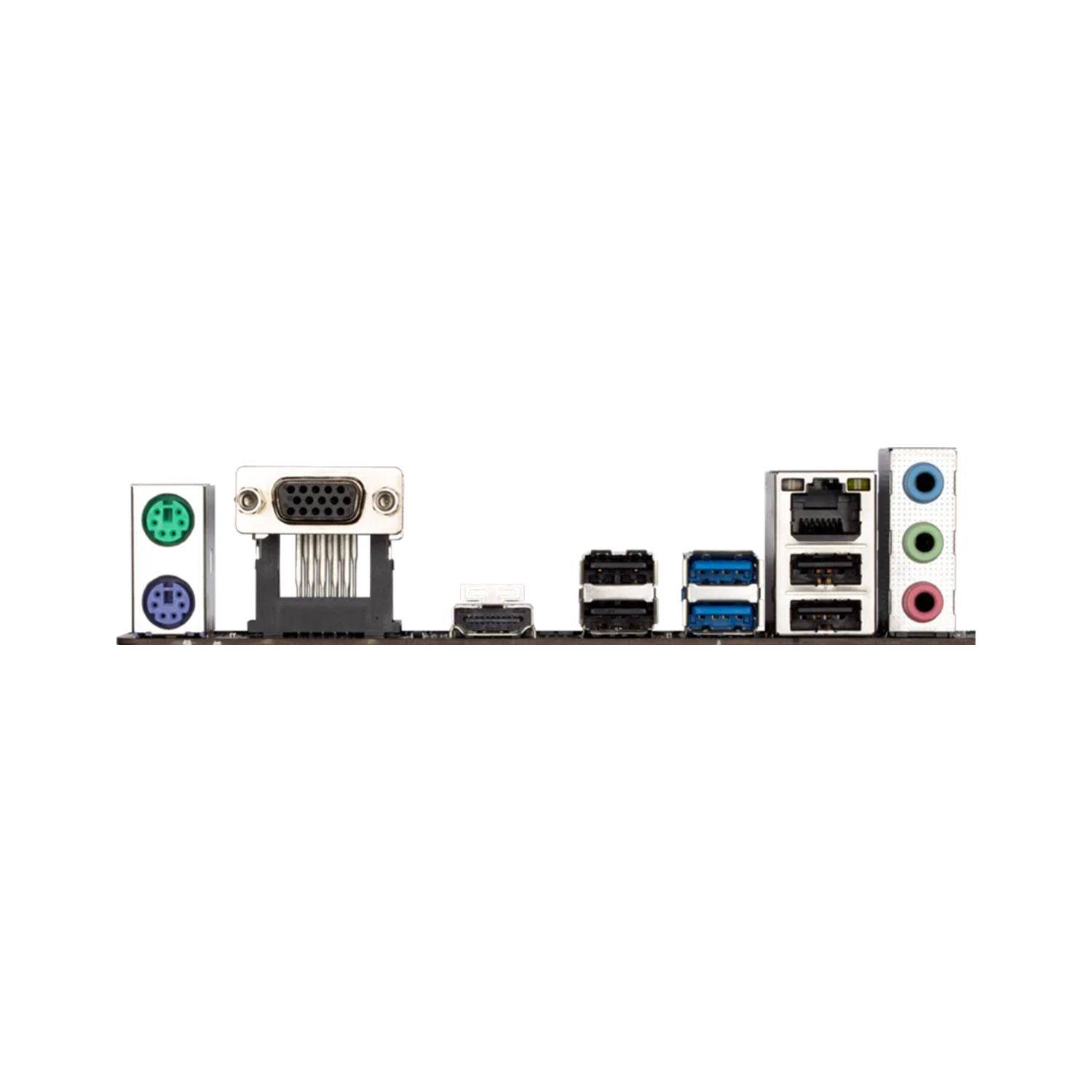

✨Back Panel Connectors✨
- USB: 2 x USB 3.2 Gen 1 ports / 4 x USB 2.0/1.1 ports
- LAN: 1 x RJ-45 port (Intel® GbE LAN)
- Audio: 3 x audio jacks
- Legacy: 1 x PS/2 keyboard/mouse port
🔴Form Factor
Type: Micro ATX Form Factor
Dimension: 22.6cm x 18.5cm
