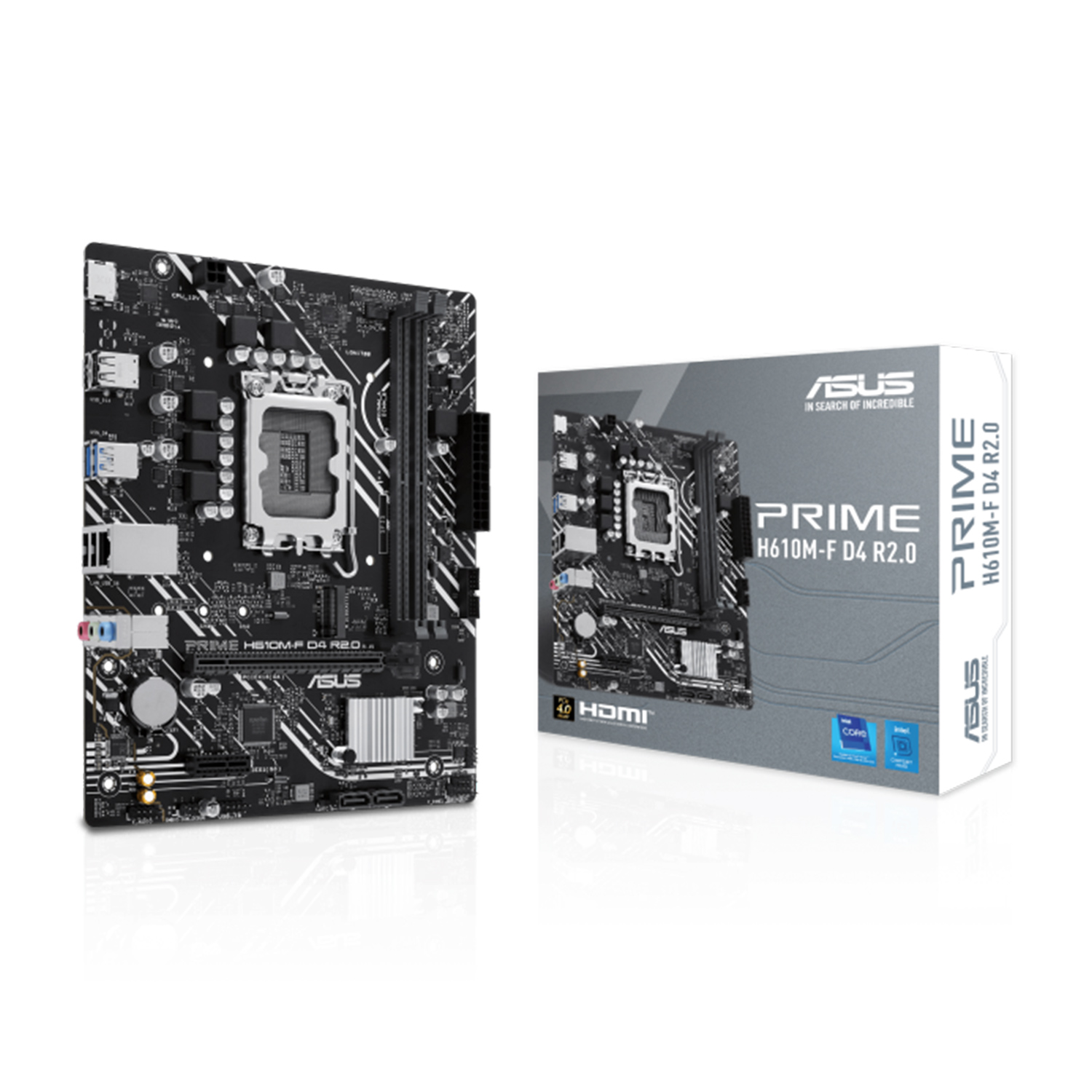

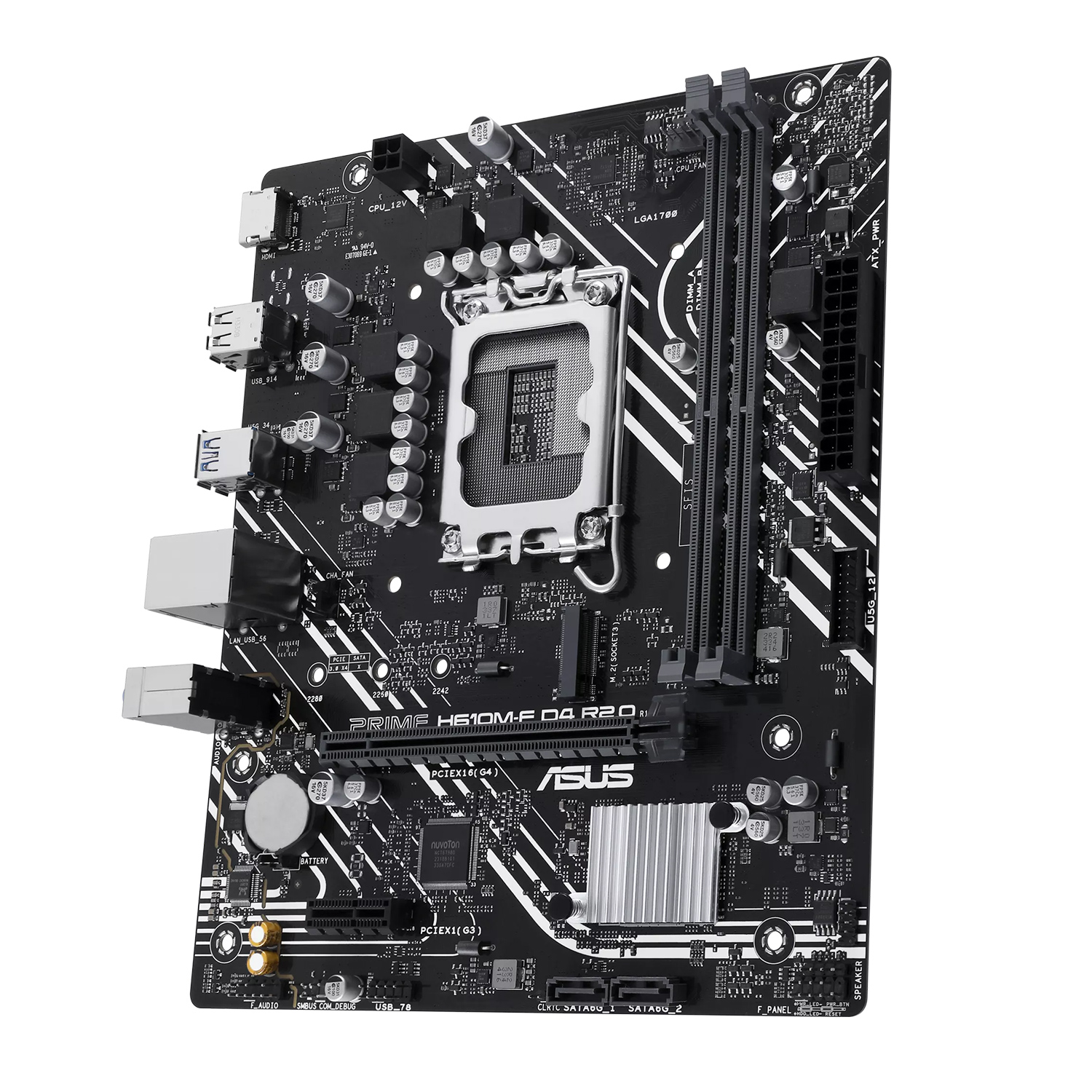

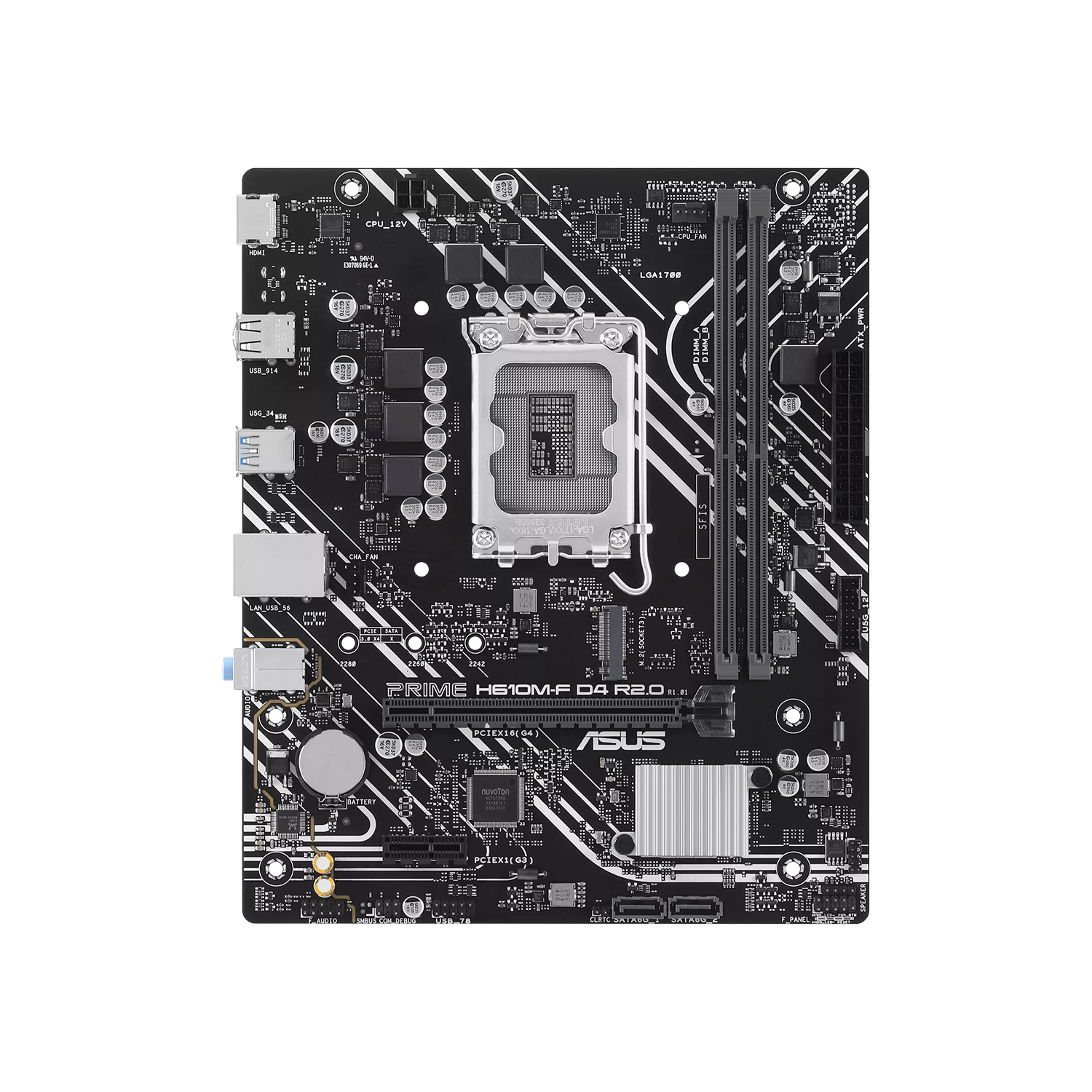

MAINBOARD 1700 : ASUS PRIME H610M-F R2.0 DDR4 #3Y

🟢Model : PRIME H610M-F D4 R2.0

CPU : Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*

          Supports up to Intel® 65W CPU

          Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset : Intel® H610 Chipset

Memory : 2 x DIMM slots, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual channel memory architecture : Supports Intel® Extreme Memory Profile (XMP) memory module

Graphics : 1 x HDMITM port**

Expansion Slots : Intel® Core™ Processors (14th  & 13th & 12th Gen)

                            1 x PCIe 4.0 x16 slot

                            Intel® H610 Chipset

                            1 x PCIe 3.0 x1 slot

Storage : Supports 1 x M.2 slot and 2 x SATA 6Gb/s ports

                Intel® H610 Chipset

                M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)

                2 x SATA 6Gb/s ports

Ethernet : 1 x Realtek 1Gb Ethernet

USB : Rear USB (Total 6 ports)

          2 x USB 5Gbps ports (2 x Type-A)

          4 x USB 2.0 ports (4 x Type-A)

          Front USB (Total 4 ports)

          1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

          1 x USB 2.0 header supports 2 additional USB 2.0 ports

Audio : Realtek 7.1 Surround Sound High Definition Audio CODEC*

            - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

            - Supports up to 24-Bit/192 kHz playback

Audio Features :  - Audio Shielding

                            - Premium audio capacitors

                            - Dedicated audio PCB layers

Back Panel I/O Ports : 2 x USB 5Gbps ports (2 x Type-A)

                                    4 x USB 2.0 ports (4 x Type-A)

                                    1 x HDMITM port

                                    1 x Realtek 1Gb Ethernet port

                                    3 x Audio jacks

Internal I/O Connectors : Fan and Cooling Related

                                        1 x 4-pin CPU Fan header

                                        1 x 4-pin Chassis Fan header

Power Related : 1 x 24-pin Main Power connector

                            1 x 4-pin +12V Power connector

Storage Related : 1 x M.2 slot (Key M)

                            2 x SATA 6Gb/s ports

USB : 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

          1 x USB 2.0 header supports 2 additional USB 2.0 ports

Miscellaneous : 1 x Clear CMOS header

                          1 x Front Panel Audio header (F_AUDIO)

                          1 x Speaker header

                          1 x 10-1 pin System Panel header

Special Features  : ASUS 5X PROTECTION III

                              - DIGI+ VRM

                              - LANGuard

                              - Overvoltage protection

                              - SafeSlot Core

                              - Stainless-steel back I/O

ASUS Q-Design : - Q-DIMM

                              - Q-Slot

                              - Q-LED Core

ASUS Thermal Solution : - Aluminum heatsink design

Software Features : ASUS Exclusive Software

Armoury Crate : AI Suite 3

                         - EPU

                        - DIGI+ VRM

                        - PC Cleaner

ASUS CPU-Z : Norton 360 for Deluxe (60 Days Free Trial)

                         WinRAR (40 Days Free Trial)

UEFI BIOS : ASUS EZ DIY

                  - ASUS CrashFree BIOS 3

                 - ASUS EZ Flash 3

                 - ASUS UEFI BIOS EZ Mode

BIOS : 128 Mb Flash ROM, UEFI AMI BIOS

Manageability : WOL by PME, PXE

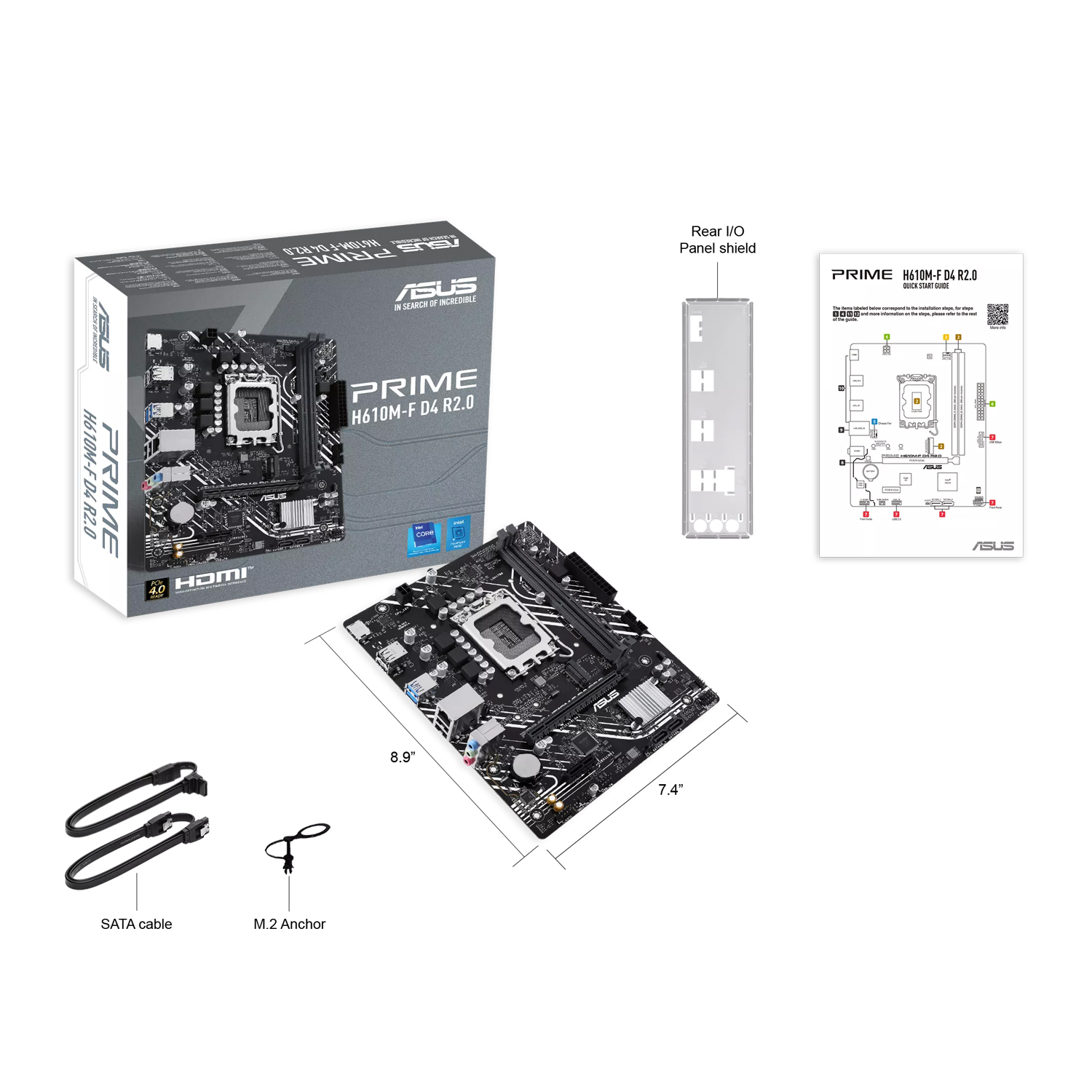

Accessories : Cables

                      2 x SATA 6Gb/s cables

Miscellaneous : 1 x I/O shield

                          1 x M.2 anchor

Documentation :1 x Quick start guide

Operating System : Windows® 11 , Windows® 10 64-bit

Form Factor : micro-ATX Form Factor  8.9 inch x 7.4 inch (22.6 cm x 18.8 cm )
