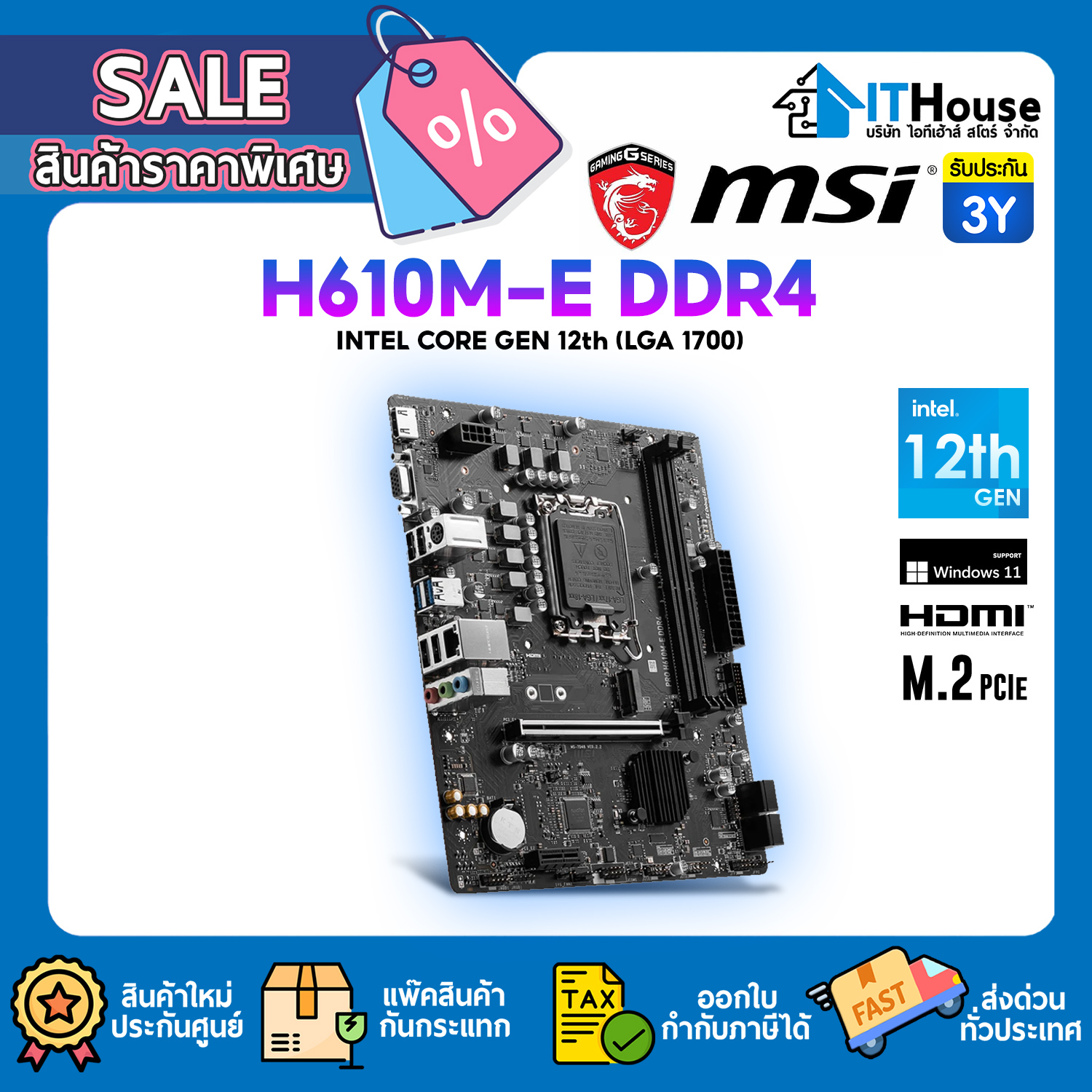

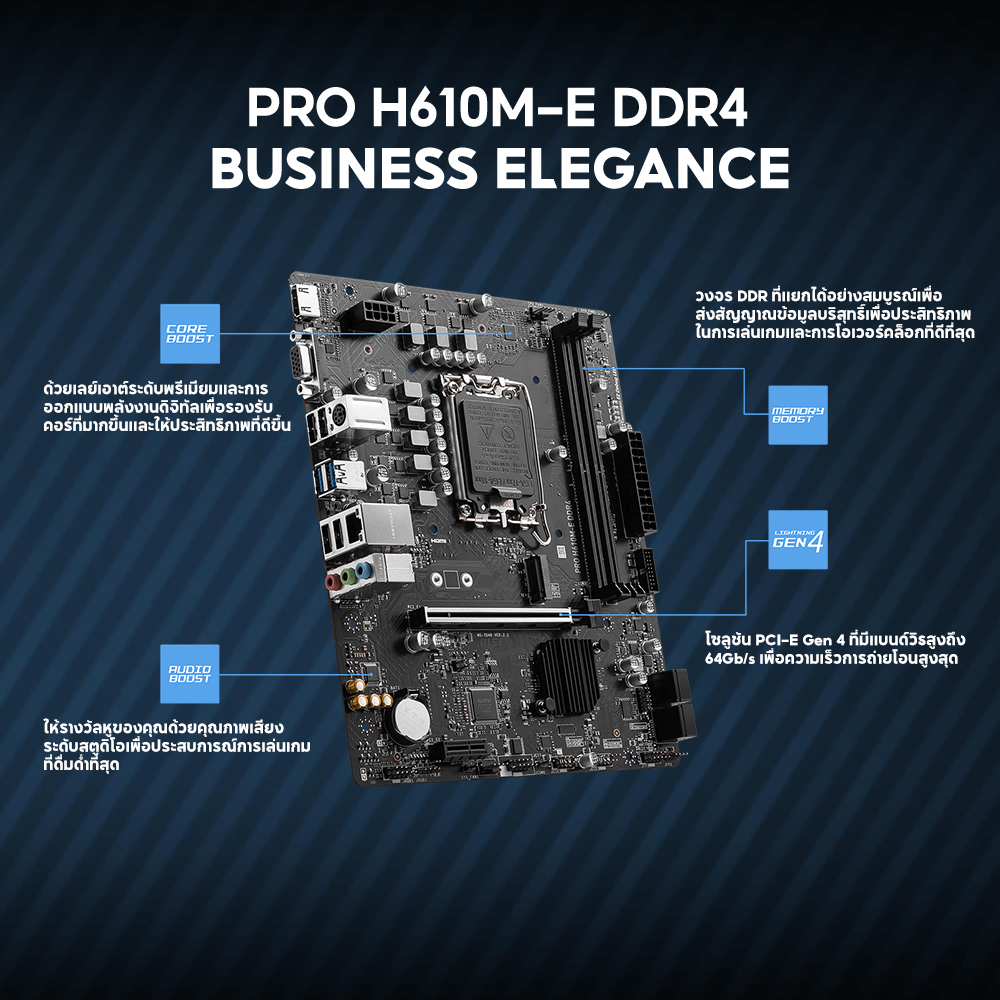

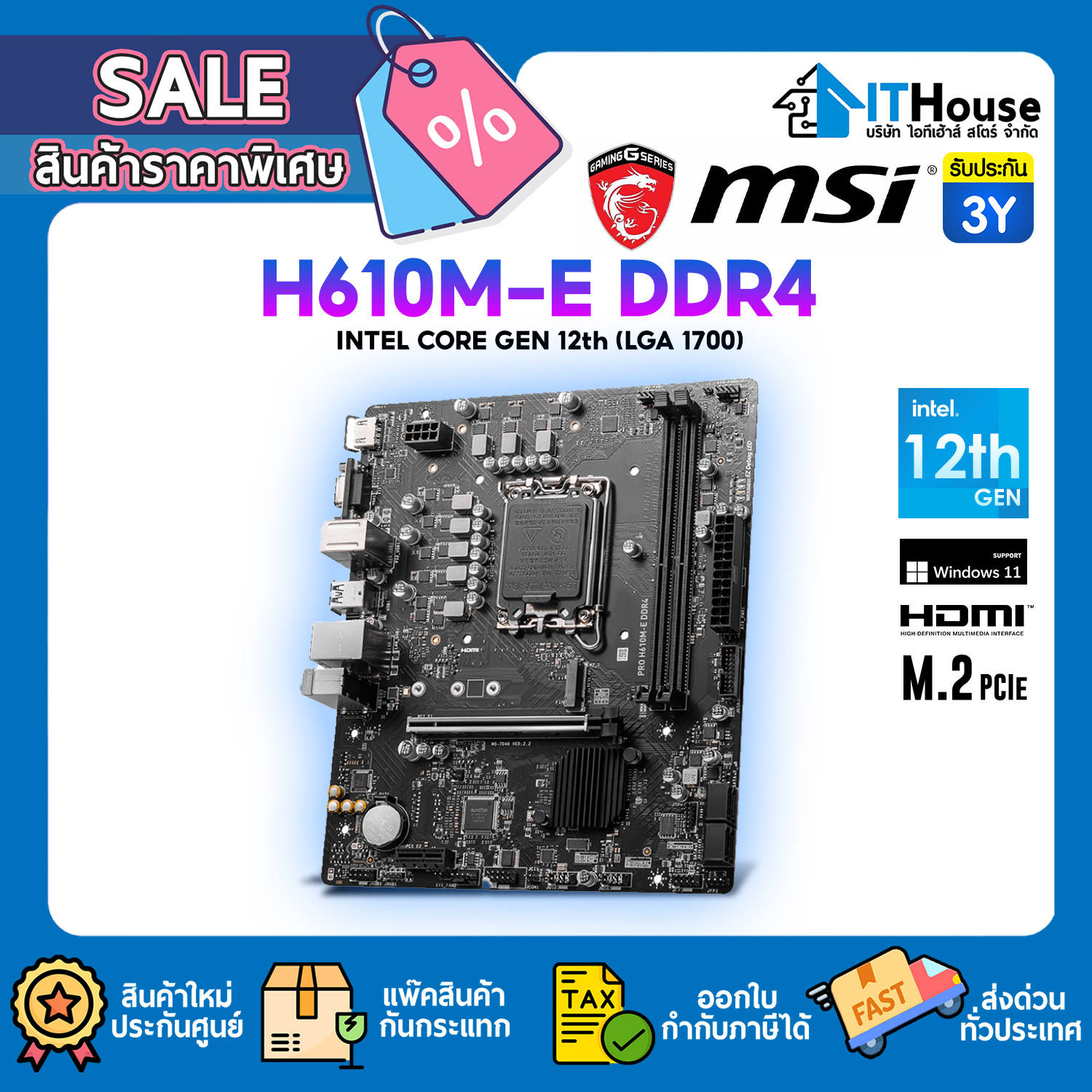

MSI PRO H610M-E DDR4 MAINBOARD 1700 CHIPSET INTEL H610 MICRO ATX

✅ Specifications:

◾ CPU Socket Type    Intel LGA-1700

◾ CPU Type    12th Gen Intel Core Processors

◾ Supported CPU Technologies    Alder Lake

◾ Chipset    Intel H610

◾ Number of Memory Slots    2x DIMM

◾ Memory Standard    DDR4 Support up to 3200 MHz

◾ Maximum Memory Supported    64 GB

◾ Expansion Slot    1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1 slot

◾ Storage Devices    1x M.2 PCIe 3.0 x4 slot, 4x SATA III port

◾ Onboard Video Chipset    Integrated Graphic on Processors

◾ Onboard Audio Chipset    Realtek ALC892/ ALC897 Codec

◾ Audio Channels    7.1 Channel HD Audio

◾ Onboard LAN Chipset    Realtek RTL8111H Gigabit LAN

◾ Onboard LAN Speed    10/100/1000 Mbps

◾ Real Panel Ports    1x PS/2, 1x D-Sub, 1x HDMI, Gb LAN, Audio connector

◾ Onboard USB    1x USB3.2 header, 2x USB2.0 header

◾ Dimensions W x D x H    23.6 x 20.0 cm

◾ Case spec    Micro-ATX Form Factor

◾ Power Pin    1x 24-pin Main Connector, 1x 8-pin Power Connector

------------------------
