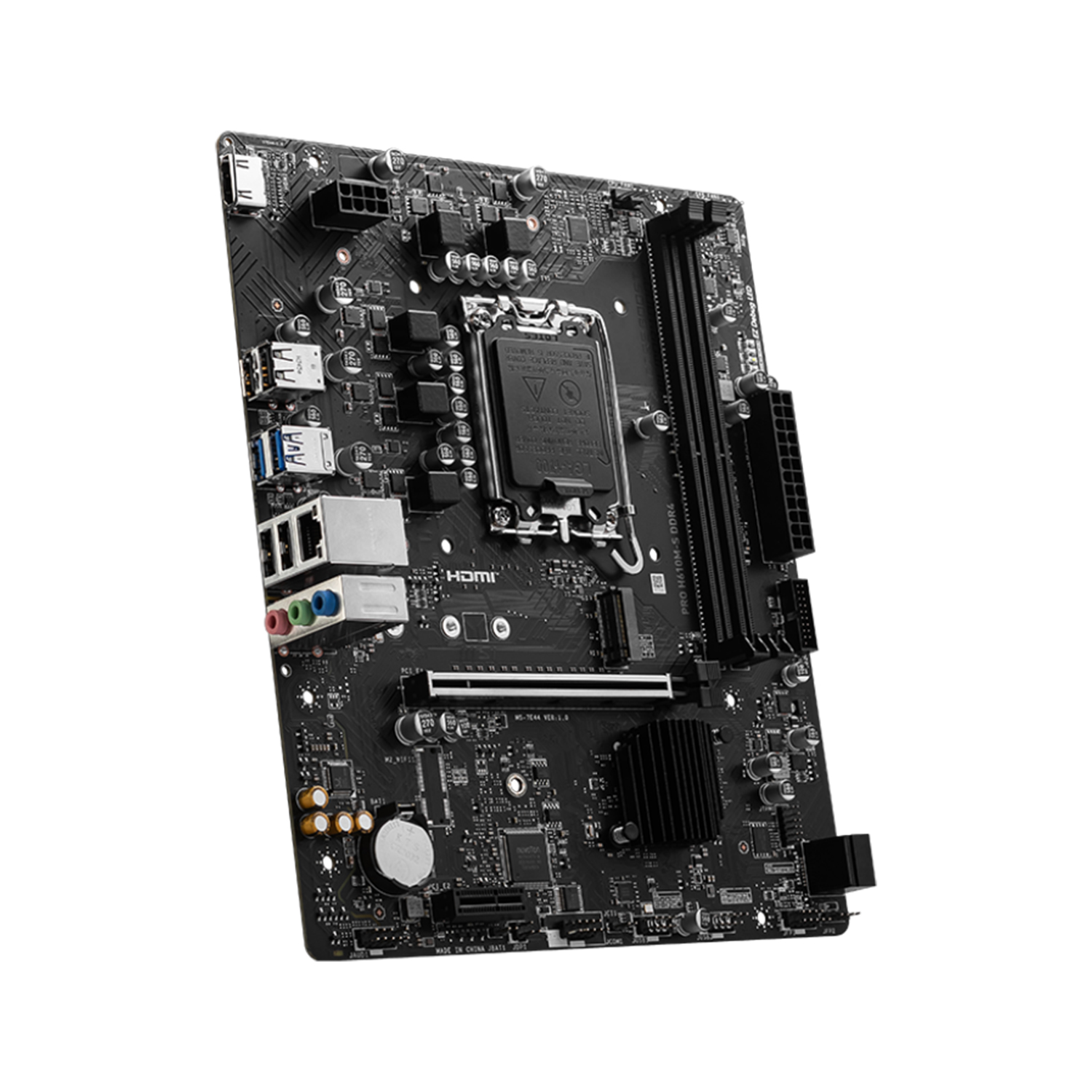

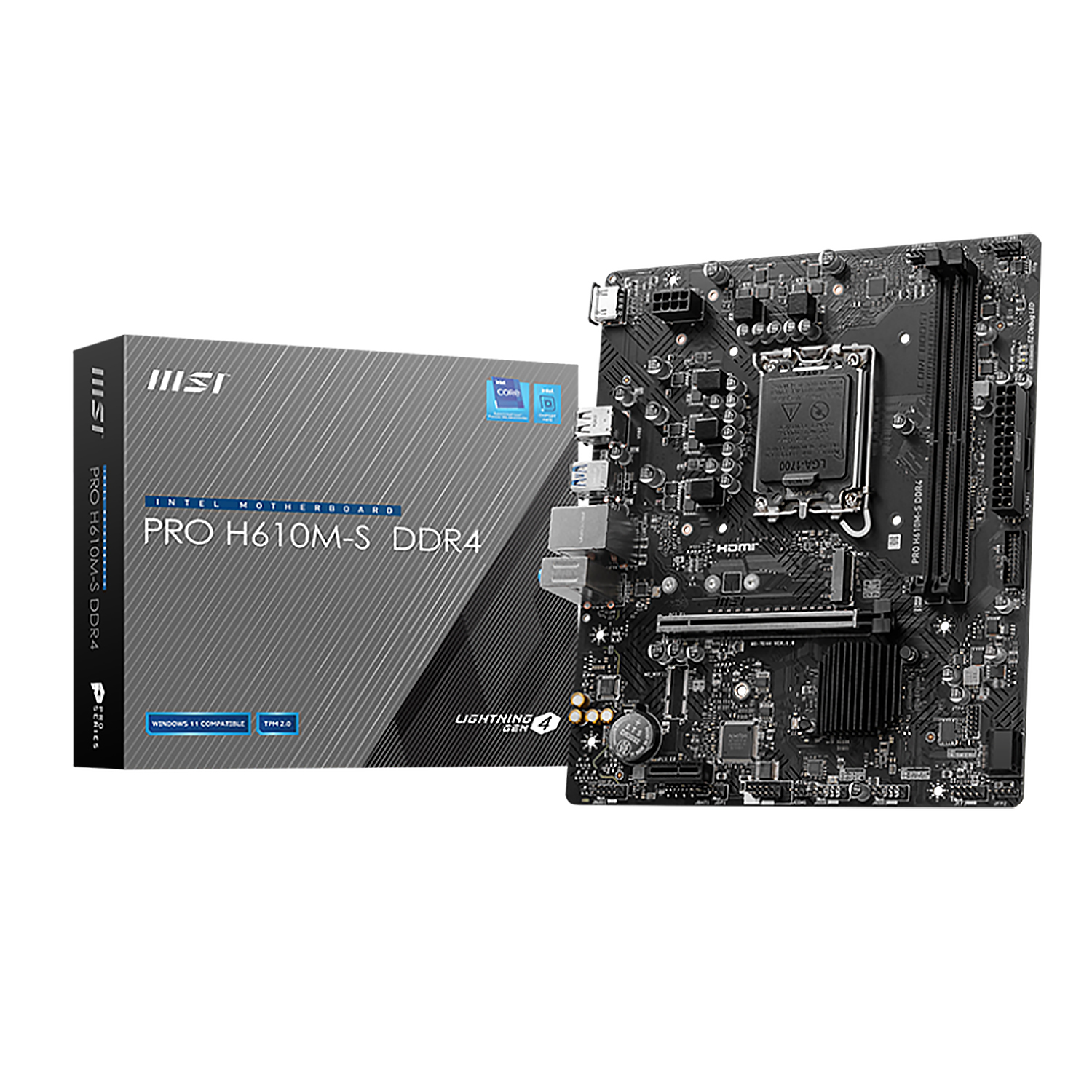

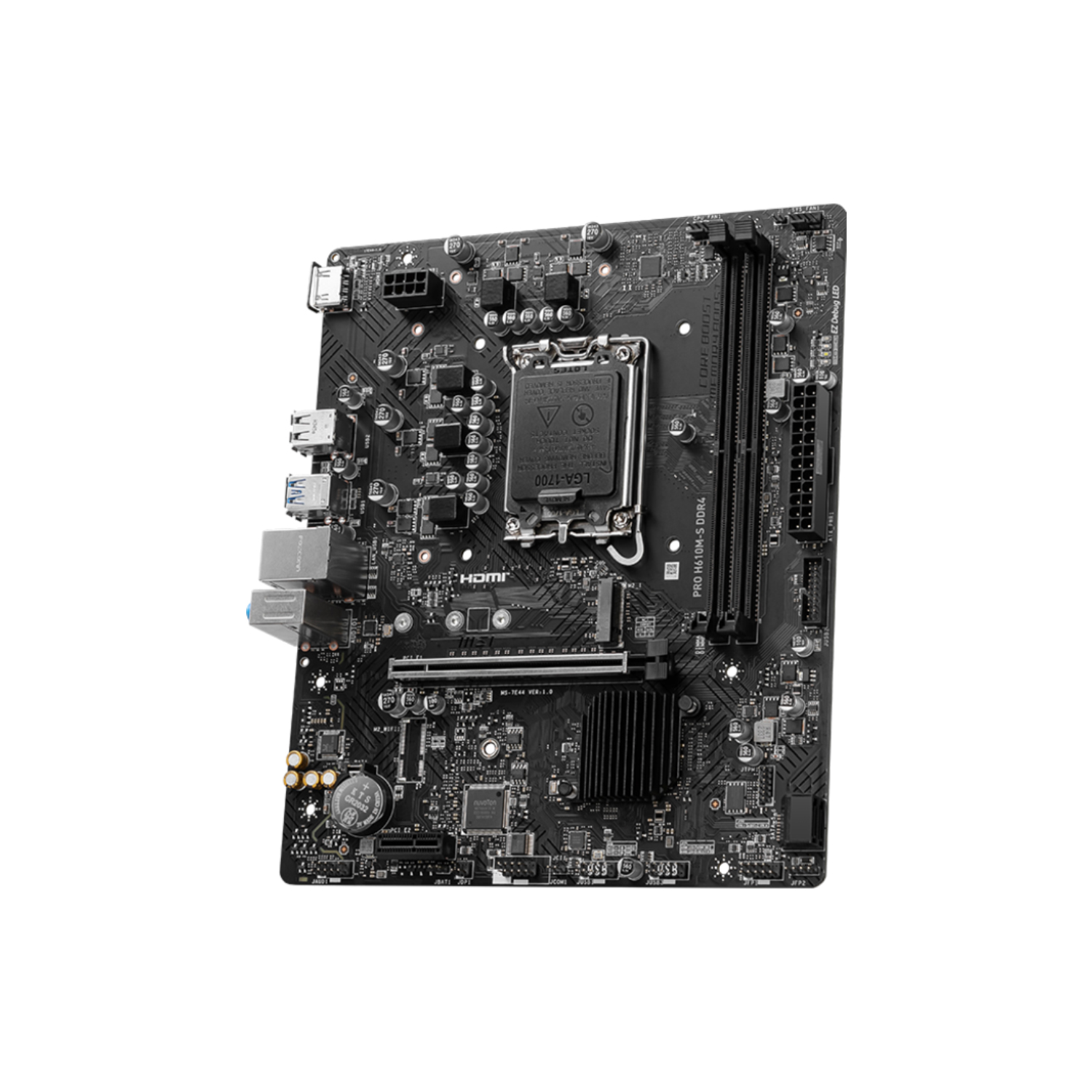

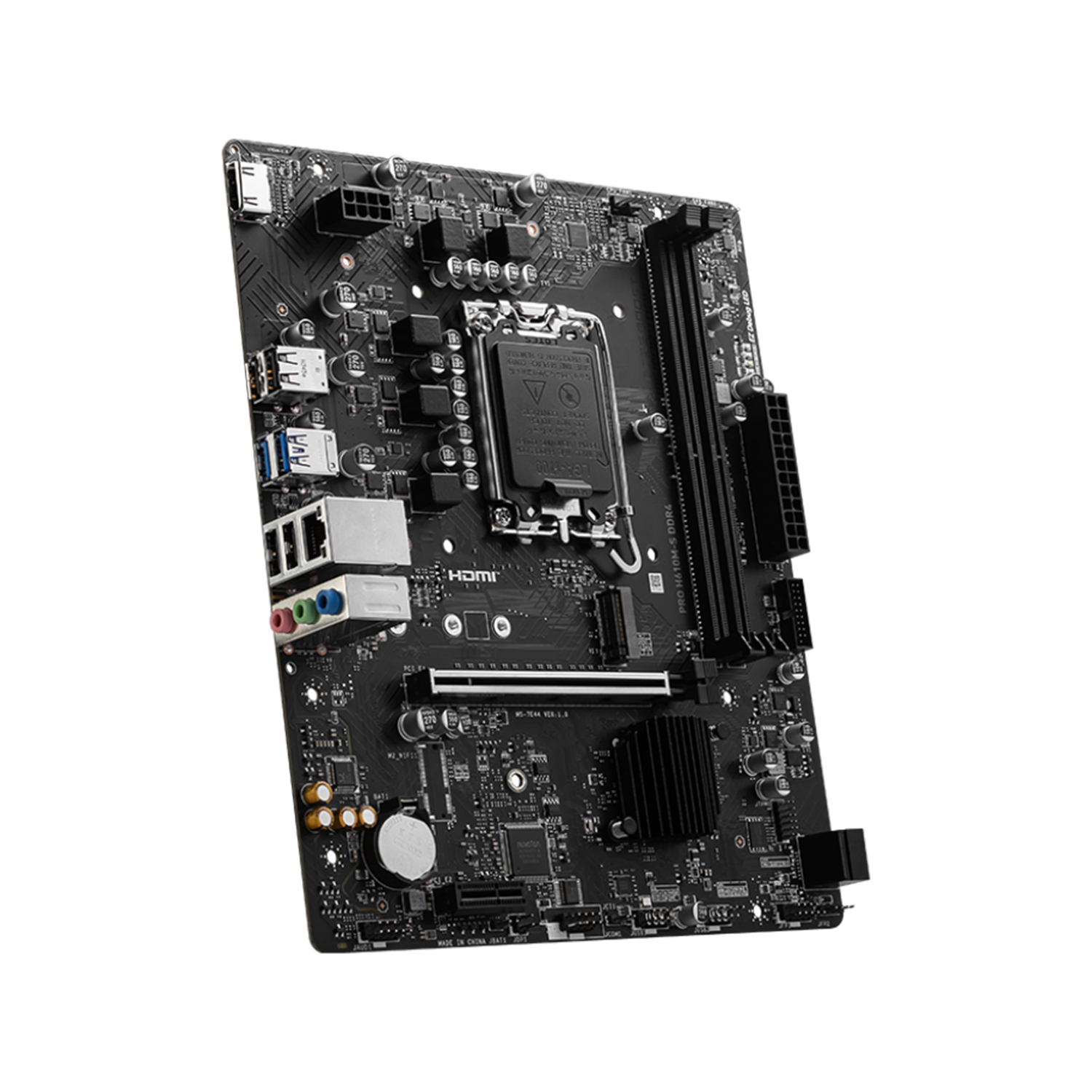

MAINBOARD 1700 : MSI PRO H610M-S DDR4 #3Y

📌 Chipset : INTEL H610 📌CPU : Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors 📌LGA : 1700 📌Memory ⚠️2x DDR4, Maximum Memory Capacity 64GB ⚠️ Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC ⚠️ Supports Dual-Channel mode ⚠️ Supports non-ECC, un-buffered memory 📌Support : HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 📌Slot : ⚠️ 1x PCI-E x16 slot (Qty) ⚠️ 1x PCI-E x1 slot (Qty) ⚠️ PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) ⚠️ PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) 📌Storage : ⚠️ 1x M.2 (Qty) ⚠️ M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices ⚠️ 2x SATA 6G (Qty) 📌LAN : Realtek® RTL8111H Gigabit LAN ⚠️ 1x Power Connector(ATX_PWR) ⚠️ 1x Power Connector(CPU_PWR) ⚠️ 1x CPU Fan ⚠️ 1x System Fan ⚠️ 2x Front Panel (JFP) ⚠️ 1x Chassis Intrusion (JCI) ⚠️ 1x Front Audio (JAUD) ⚠️ 1x Com Port (JCOM) ⚠️ 1x TPM pin header(Support TPM 2.0) ⚠️ 4x USB 2.0 ports
