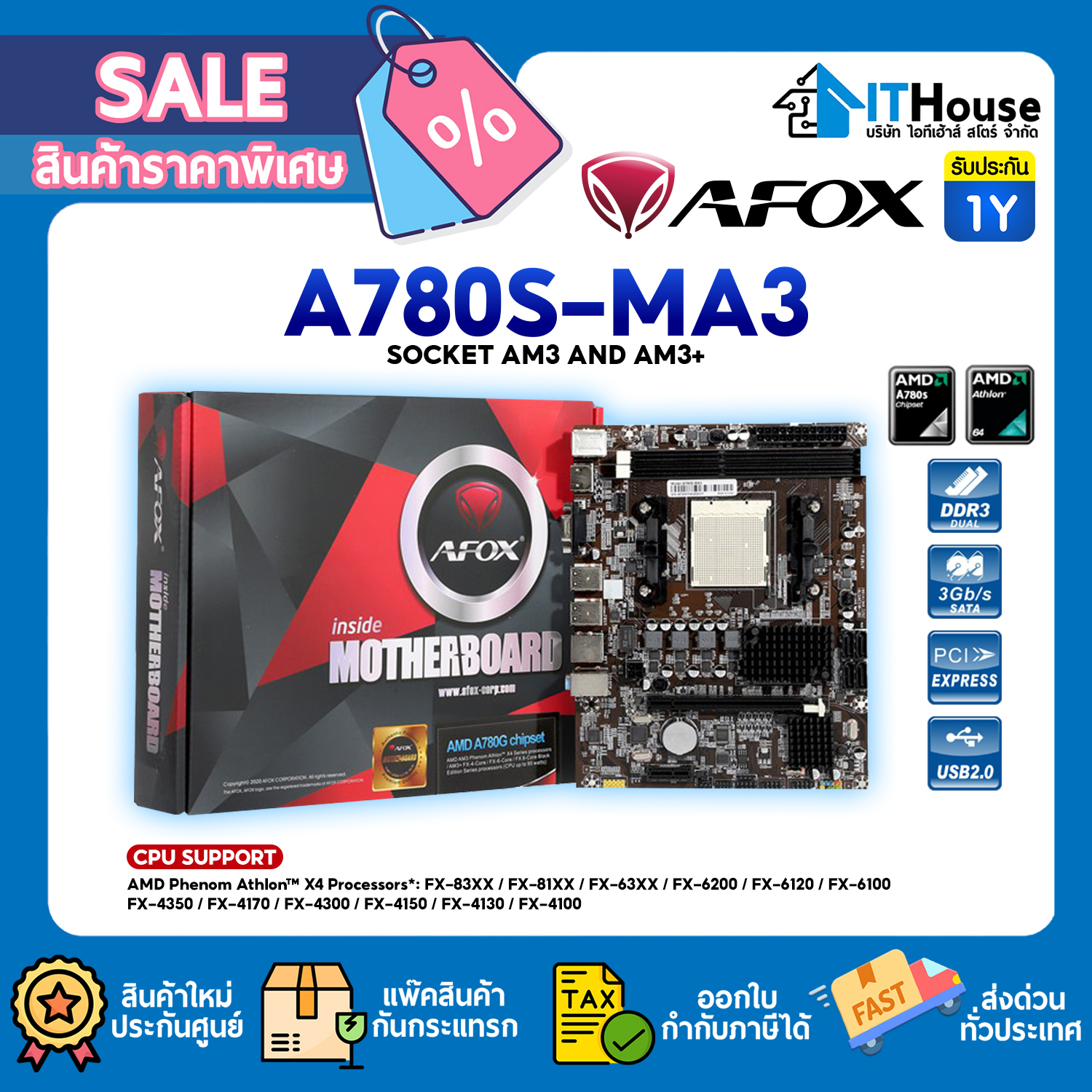

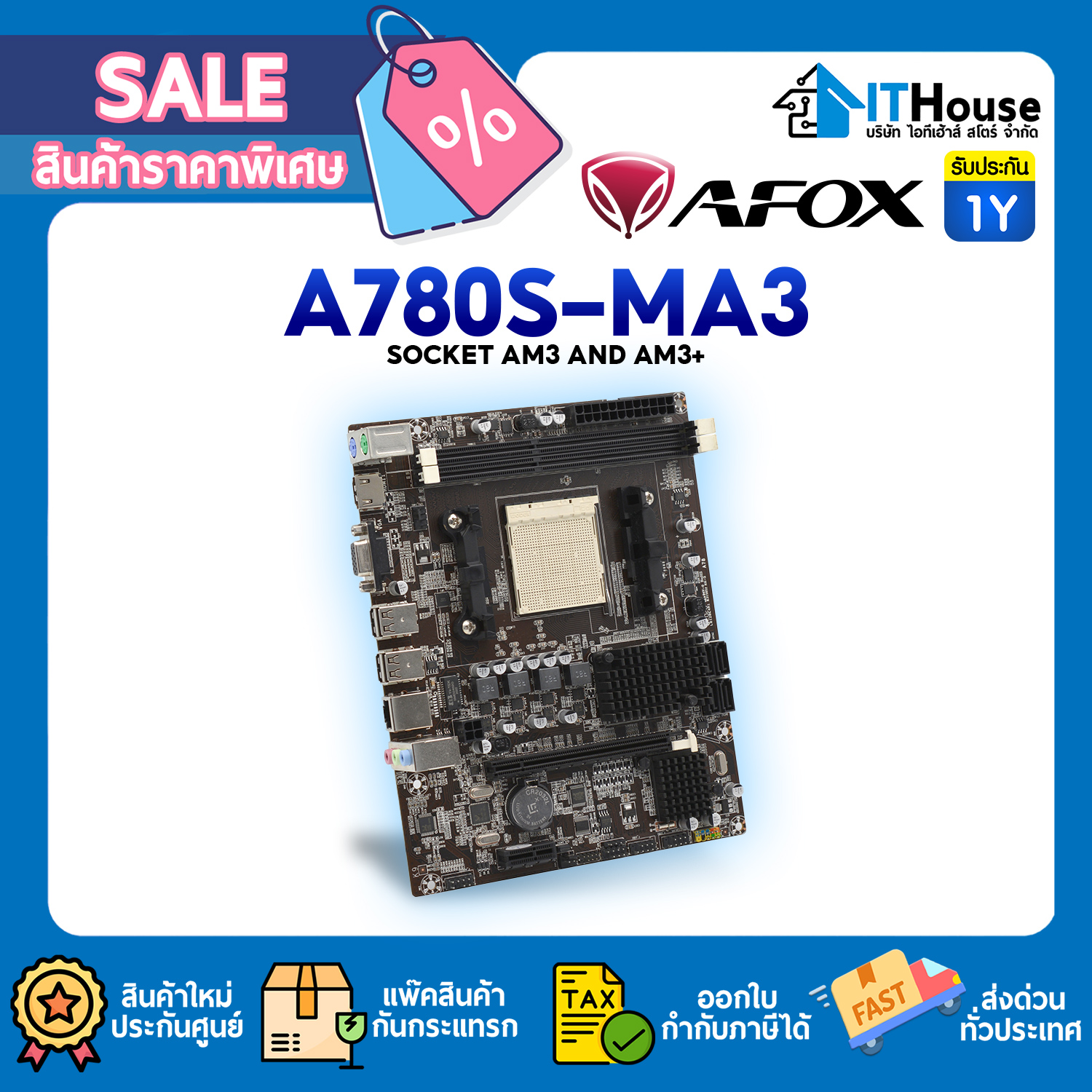

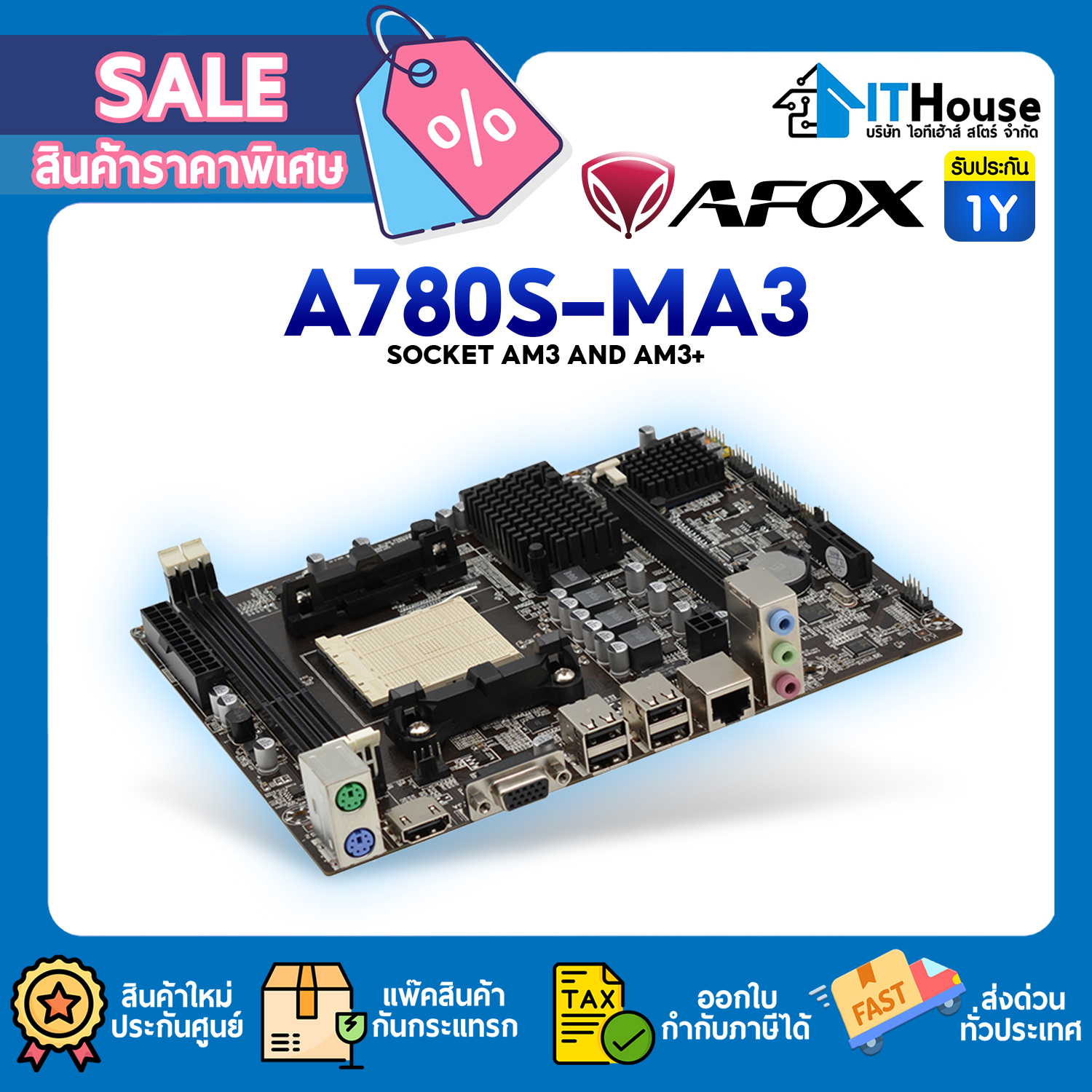

AFOX A780S MA3 MAINBOARD Socket AM3 and AM3+

Platform

• AMD Socket AM3 and AM3+

Model Name

• A780S-MA3

Chipset

• AMD® RS780 + AMD SB710/SB700

CPU Supports

• AMD Phenom Athlon™ X4 Processors*: FX-8370/FX-8350/FX-8320/FX-8150/FX-8310/FX-8370E/FX-8300/FX-8320E/FX-6350/FX-8140/FX-8120/FX-6300/FX-6200/FX-6120/FX-6100/FX-4350/FX-4170/FX-4300/FX-4150/FX-4130/FX-4100 (CPU up to 95 watts)

FSB

• 1066/1333/1600MHz

Memory

• Dual Channel DDR3 1066/1333/1600MHz

Dimm

• 2 x Memory Slots (Max. capacity of system memory 16GB)

Onboard Graphics

• Integrated AMD Radeon™ HD 3000 series graphics

PCI/PCI-E Slots

• 1 x PCI Express x16 3.0 slot, 1 x PCI Express x1 slot

SATA

• 4 x SATA2

IDE

• 1 x IDE

Audio

• Realtek 662 on board, Supports 6-channel audio-out

LAN

• Realtek RTL8105/8106 10/100Mbps Ethernet on board

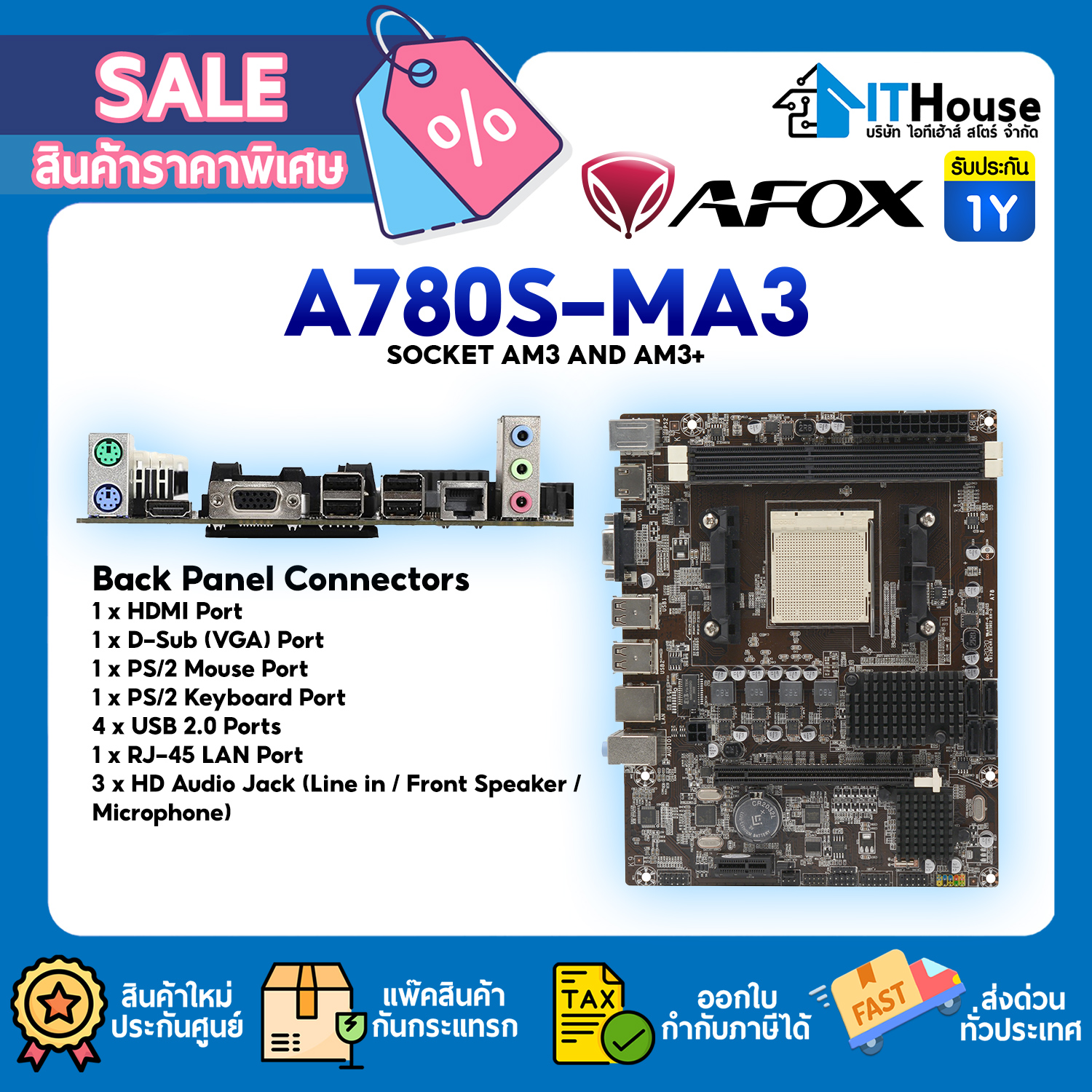

Back Panel I/Os

• 1 x HDMI Port
• 1 x D-Sub (VGA) Port
• 1 x PS/2 Mouse Port
• 1 x PS/2 Keyboard Port
• 4 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 3 x HD Audio Jack (Line in / Front Speaker / Microphone)

ON-Board Pinheaders/Connectors

• 2 x USB 2.0 pinheader (supports additional 4 x USB 2.0s)
• 1 x Front Panel Audio pinheader

BIOS

• Supports BIOS update

Form Factor

• Micro-ATX (17*22 cm)

Mounting

• 6 mounting holes

Accessories

• 1 x SATA II cable
• 1 x I/O Rear Panel
• 1 x User Manual
• 1 x Driver CD

------------------------------
