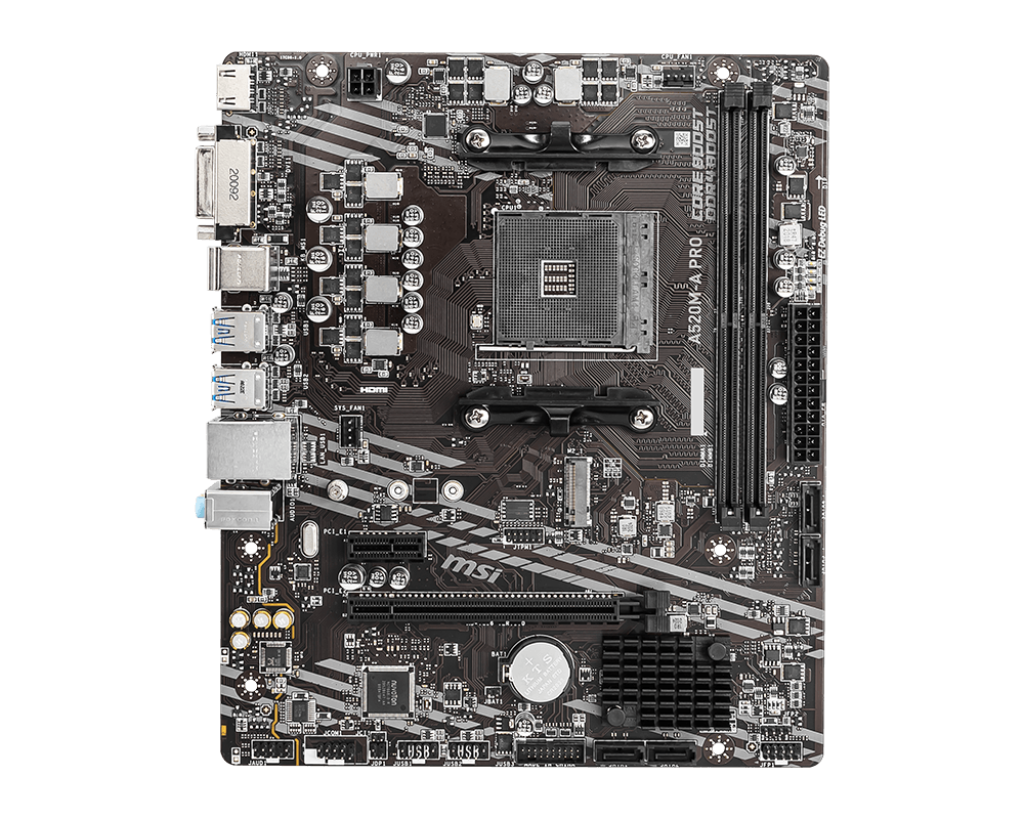

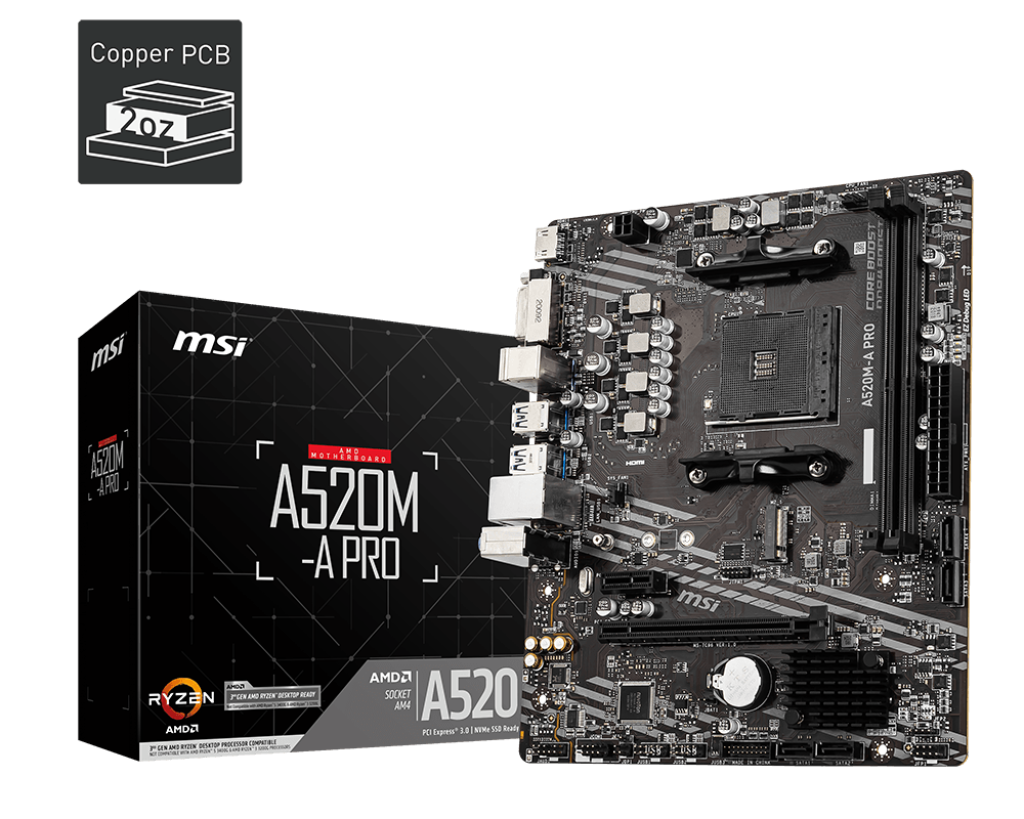

MAINBOARD AM4 : MSI A520M-A PRO DDR4 #3Y

model

Brand : MSI

Model : A520M-A PRO

CPU

Socket : AM4 (3000 Series - Matisse) , AM4 (4000 G-Series - Renoir) , AM4 (4000 Series - Renoir) , AM4 (5000 G-Series - Cezanne) , AM4 (5000 Series - Vermeer / Cezanne)

Wattage : 105W

Chipset : AMD A520

Series : Ryzen 3 , Ryzen 5 , Ryzen 7 , Ryzen 9

memory :

Slot : 2

Memory Type : DDR4

Max. Capacity : 64 GB

Speed : 2133 , 2400 , 2666 , 2667(OC) , 2800 , 2800 (OC) , 2933 , 2933 (OC) , 3000 , 3000 (OC) , 3066 , 3066(OC) , 3200 , 3200 (OC) , 3466 (OC) , 3600 (OC) , 3733 (OC) , 3866 (OC) , 4000 (OC) , 4133 (OC) , 4266 (OC) , 4400 (OC) , 4600+ (OC)

Graphic & Audio : Graphic

Integrated Graphics Processor (Depends on CPU) : Audio

Realtek ALC892/ALC897 Codec : 7.1-Channel High Definition Audio

Storage :

SATA 2

- Port

SATA 3

4 Port

RAID

0/1/10

M.2

1 x M.2 Slot(s)

1x M.2 slot (Key M) (from AMD Processor)

Supports PCIe 3.0

Supports SATA 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

The supported specification depends on installed processor. Port
