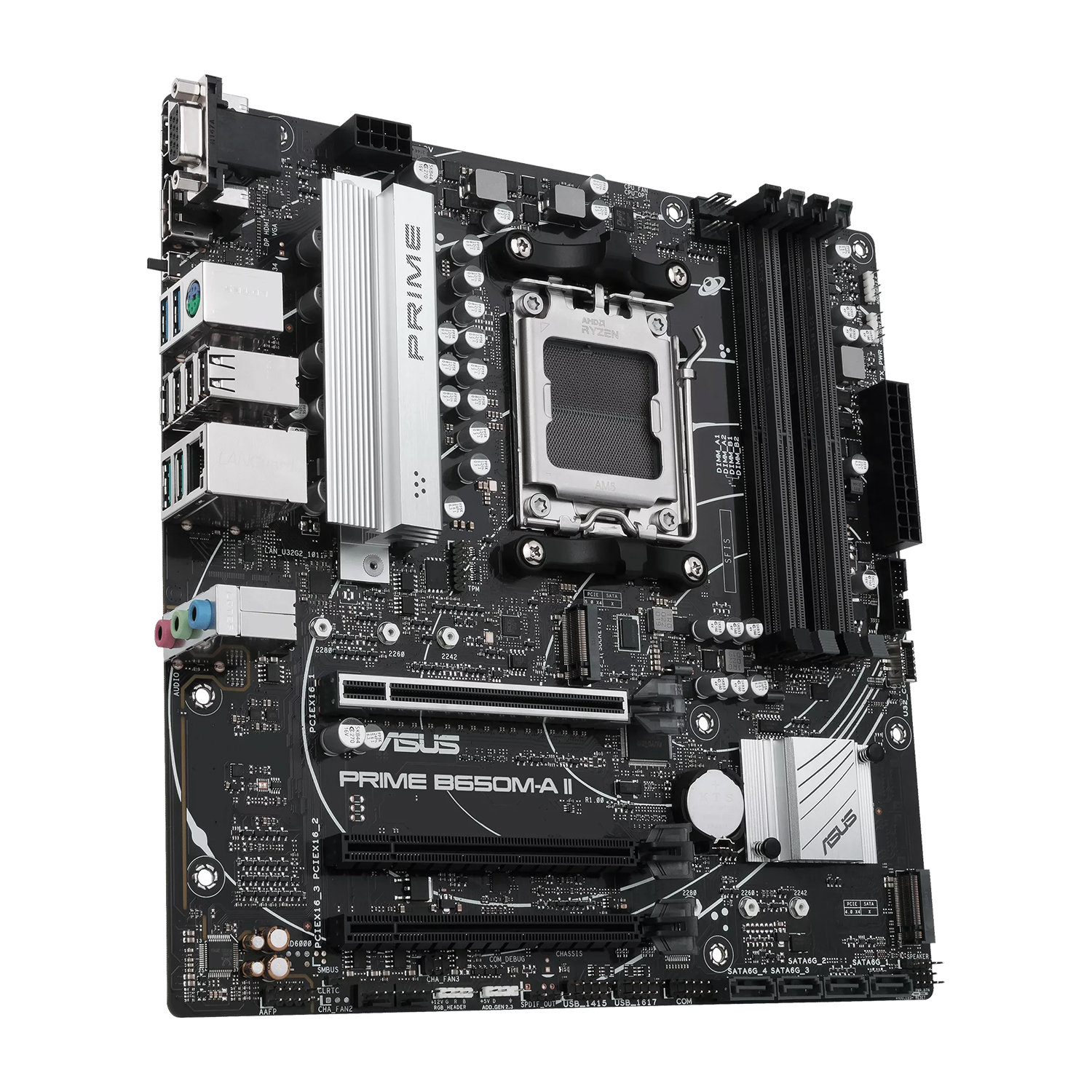

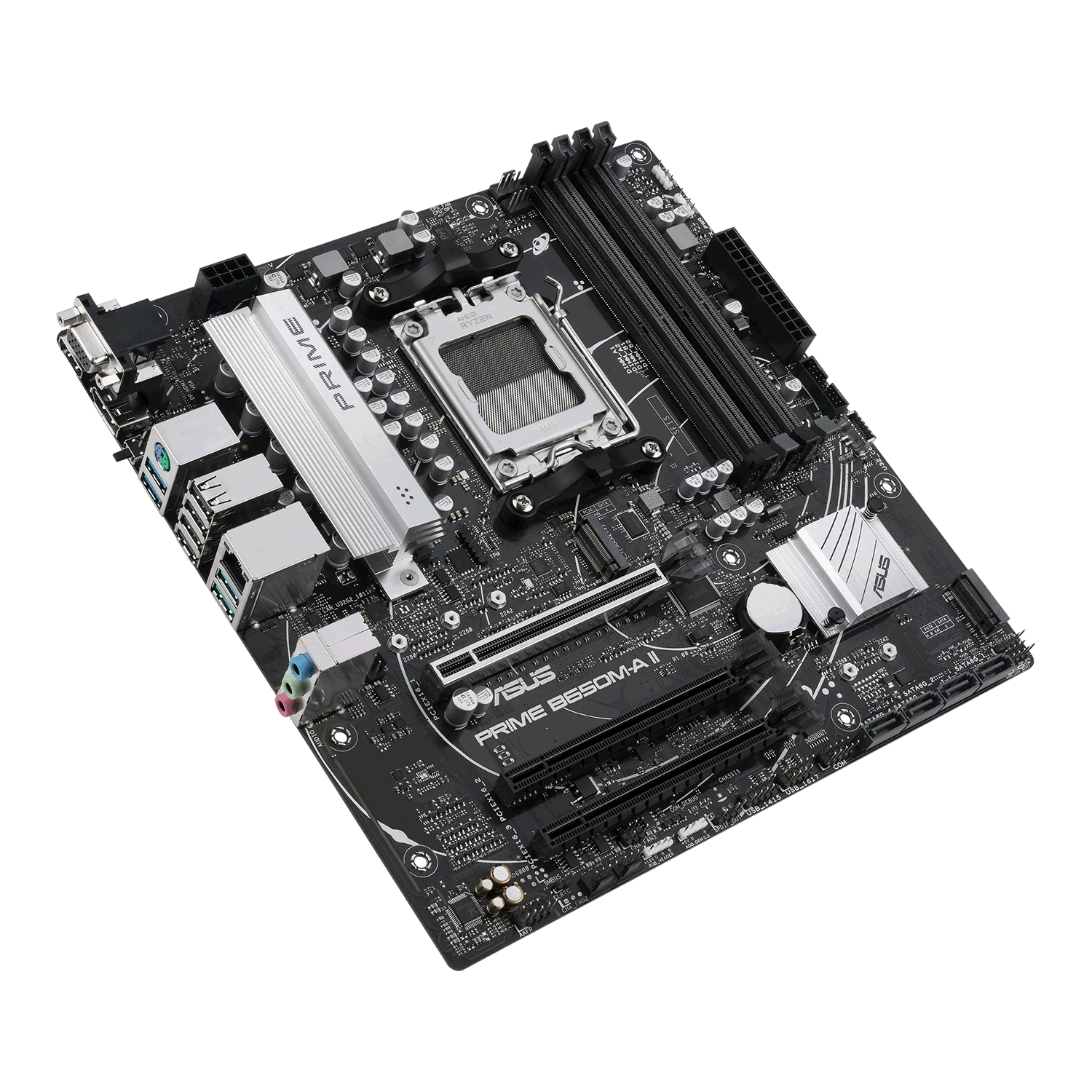

MAINBOARD AM5 : ASUS PRIME B650M-A II DDR5 #3Y

🚀 ASUS PRIME B650M-A II DDR5 Motherboard - Key Features

✅ Overview

- Model: PRIME B650M-A II

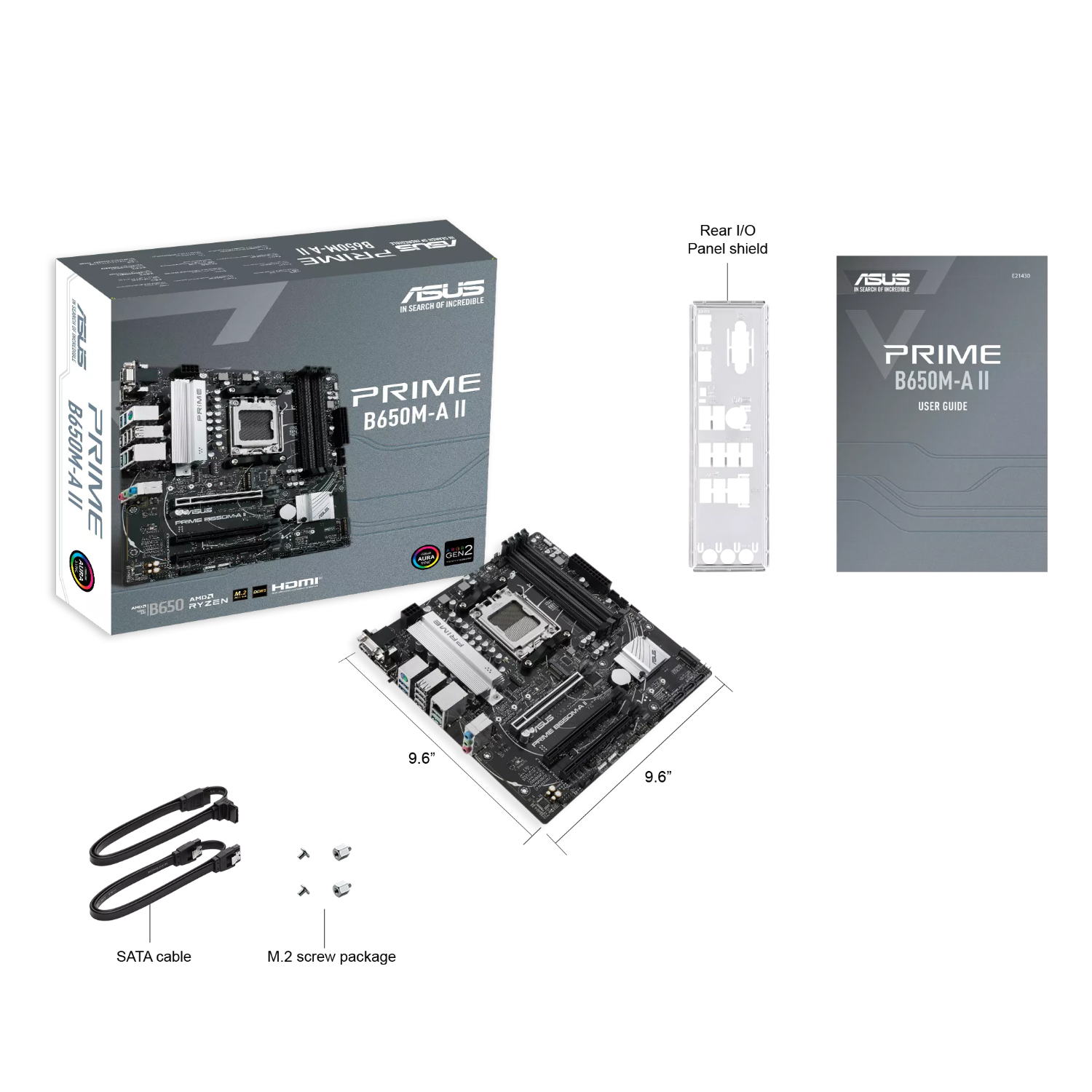

- Form Factor: mATX (9.6 inch x 9.6 inch) - Perfect for standard and compact builds.

- Chipset: AMD B650

- Operating System Support: Windows® 11, Windows® 10 64-bit

💻 Processor & Memory

- CPU Socket: AMD Socket AM5

- CPU Compatibility: Supports AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors.

- Memory: 4 x DDR5 DIMM slots (Dual Channel)

- Max Capacity: 192GB

- Speed: Supports up to 7600+ MHz (OC)

- Features: Supports AMD Extended Profiles for Overclocking (EXPO™), OptiMem II.

⚙️ Storage & Expansion

- Expansion Slots:

  1 x PCIe 4.0 x16 slot (Primary)

  2 x PCIe 4.0 x16 slots (support x1 mode)

- Storage Support: Total 2 x M.2 slots and 4 x SATA 6Gb/s ports

  M.2_1 (Primary): Supports high-speed PCIe 5.0 x4 mode (with R9000/R7000 CPUs)

  M.2_2: Supports PCIe 4.0 x4 mode

- RAID Support: Supports PCIe RAID 0/1/10 and SATA RAID 0/1/10.

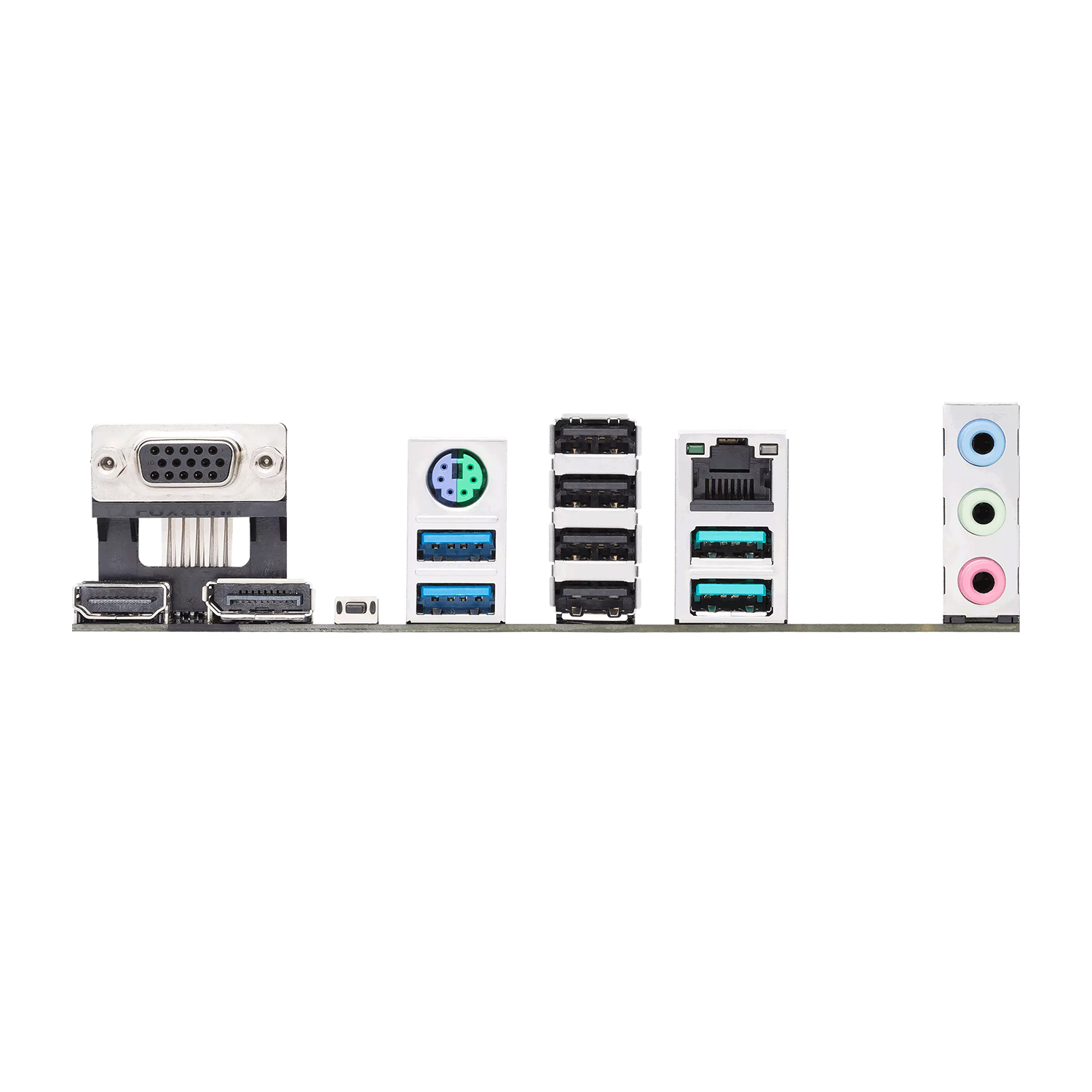

🔌 Connectivity (Rear I/O Ports)

Video Outputs:

- 1 x DisplayPort (Supports max. 8K@60Hz)

- 1 x HDMI® port (Supports 4K@60Hz)

- 1 x VGA port

Network: 1 x Realtek 2.5Gb Ethernet Port (High-speed networking)

USB Ports:

- 2 x USB 3.2 Gen 2 Type-A (10Gbps)

- 2 x USB 3.2 Gen 1 Type-A (5Gbps)

- 4 x USB 2.0 Type-A

Other Ports: 3 x Audio jacks, 1 x PS/2 Combo Port, 1 x BIOS FlashBack™ button (for easy BIOS updates)

✨ Special Features & Durability

- ASUS 5X PROTECTION III (Enhanced Durability):

- DIGI+ VRM (Digital Power Control)

- LANGuard

- Overvoltage Protection

- Safeslot Core+ (Reinforced PCIe slot)

- Stainless-Steel Back I/O

- ASUS Q-Design (Easy Building):

- Q-DIMM, Q-Slot (Easy component installation)

- Q-LED Core (Quick troubleshooting indicator)

- Thermal Solution: VRM Heatsink Design

🔊 Audio

CODEC: Realtek 7.1 Surround Sound High Definition Audio

Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers.

💡 Internal Headers (for Case/Peripherals)

USB Front Panel:

1 x USB 3.2 Gen 1 connector (Supports USB Type-C®)

1 x USB 3.2 Gen 1 header (for 2 additional ports)

2 x USB 2.0 headers (for 4 additional ports)

Cooling:

1 x CPU Fan header

1 x CPU OPT Fan header

3 x Chassis Fan headers

RGB Lighting (Aura Sync):

3 x Addressable Gen 2 headers

1 x Aura RGB header
