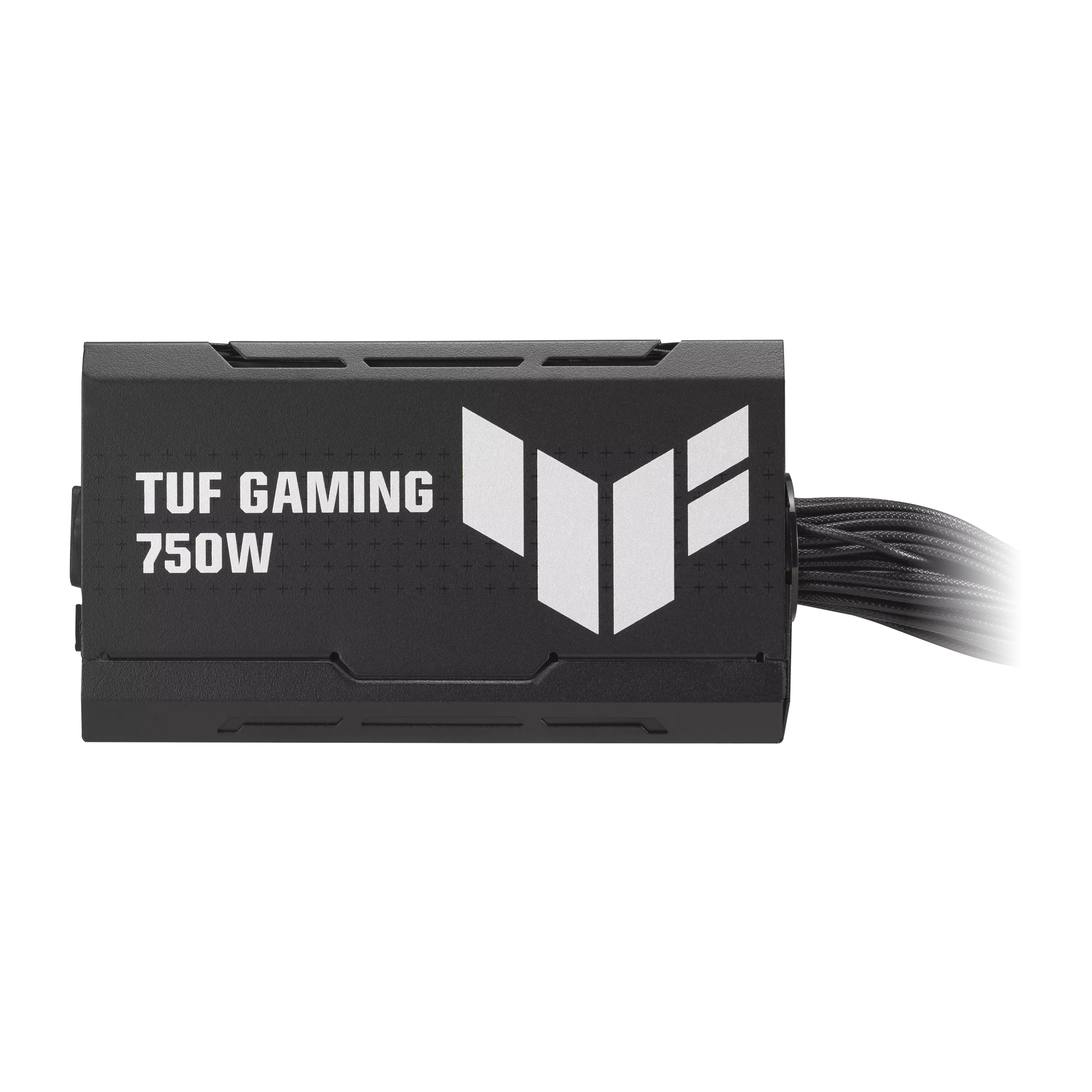

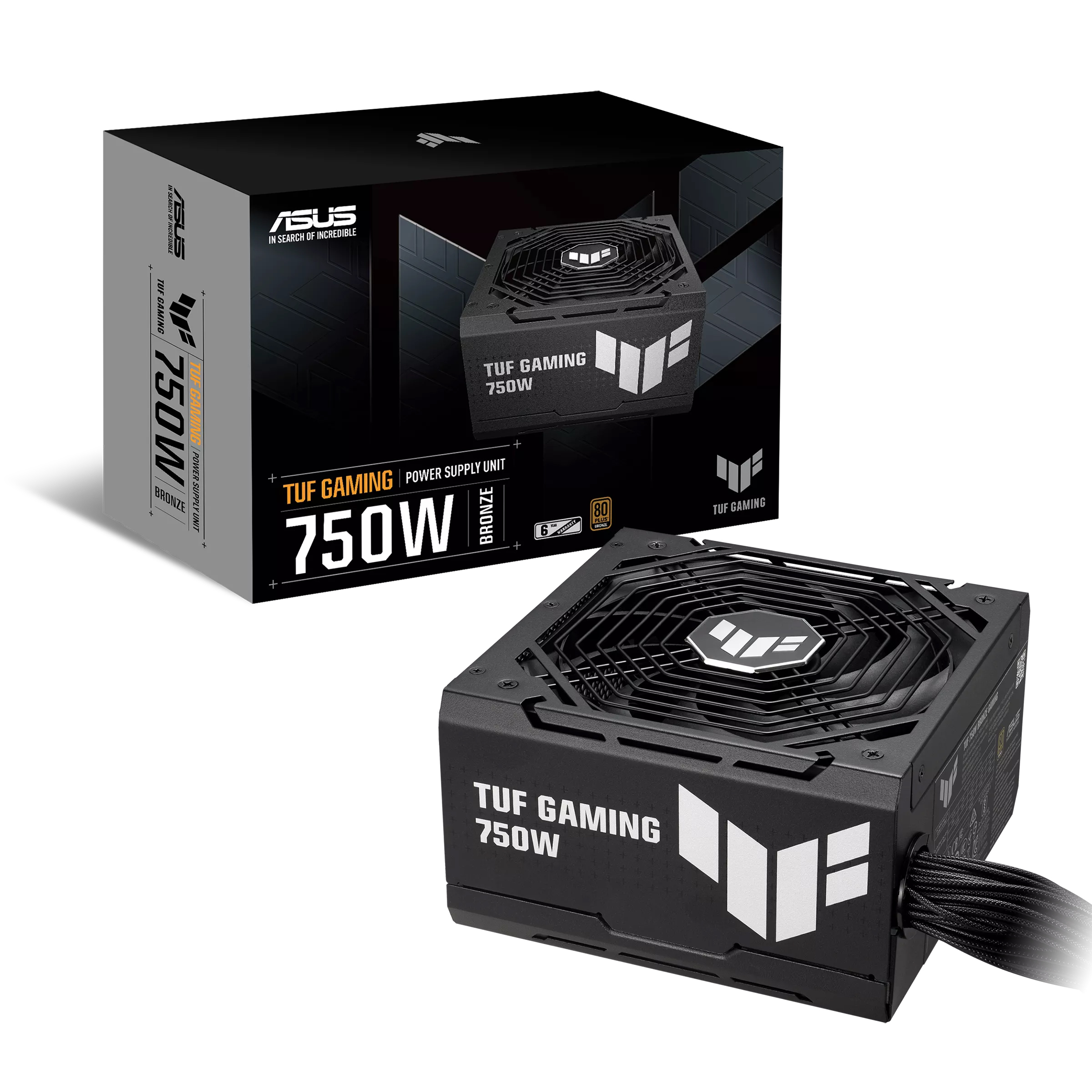

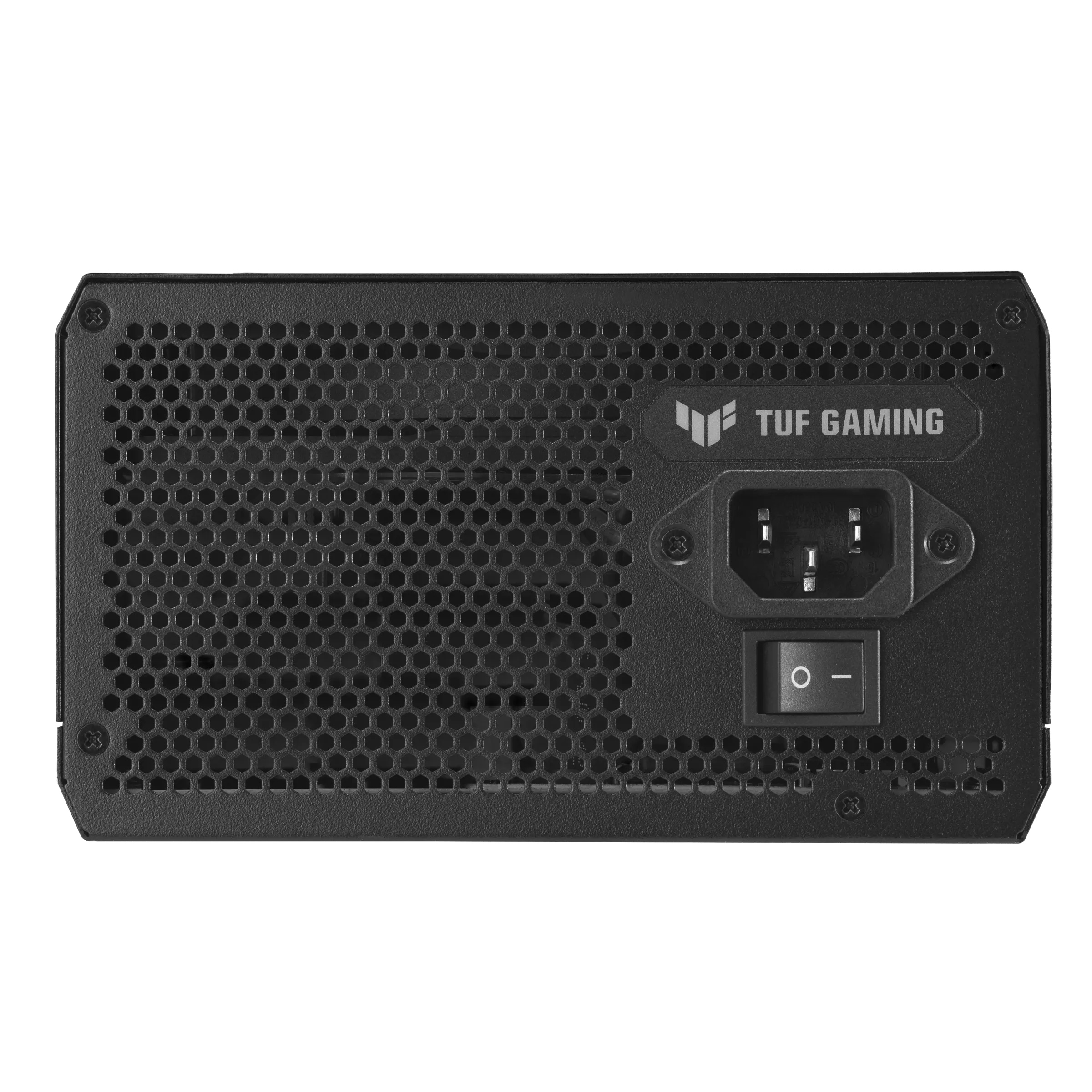

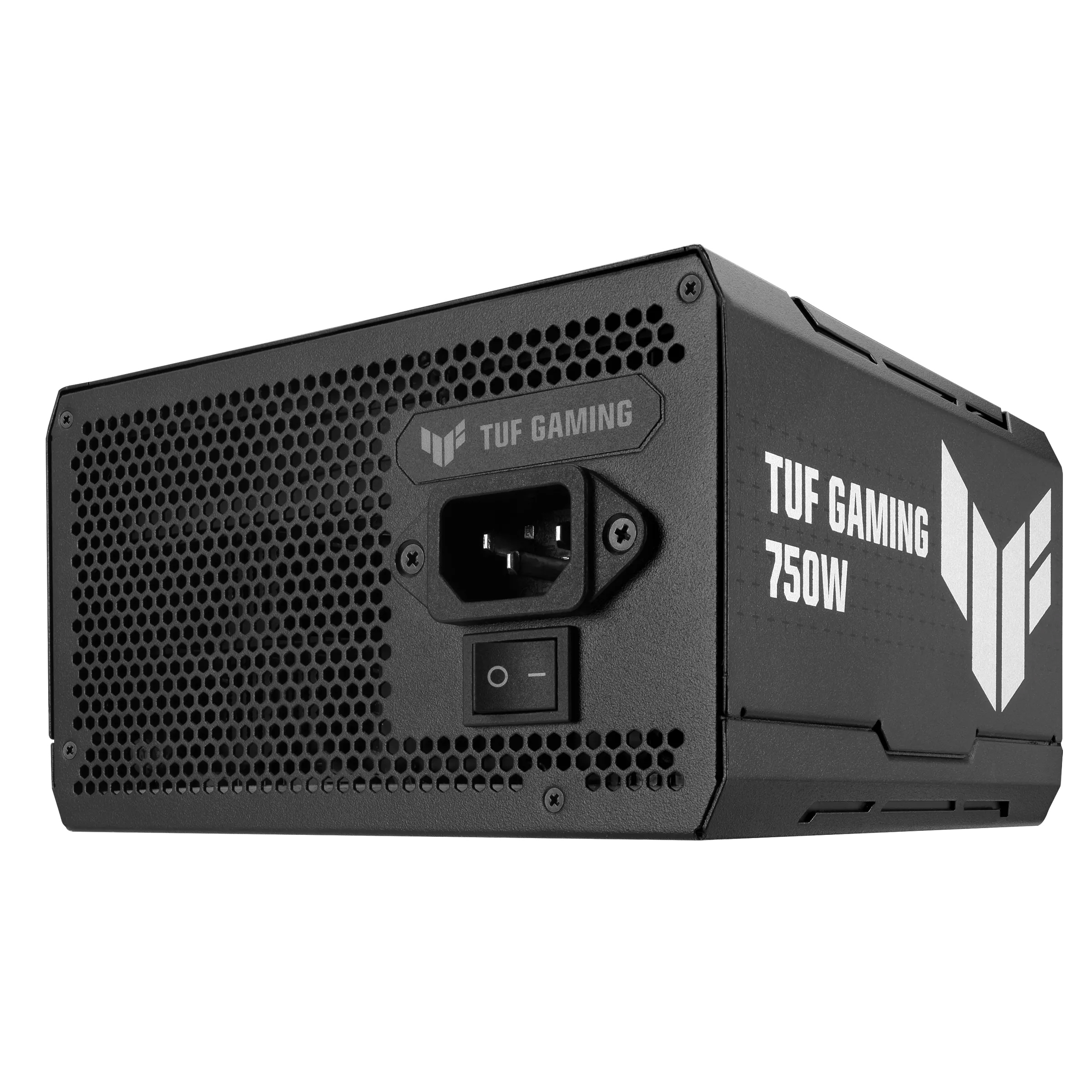

PSU (80+ BRONZE) : ASUS TUF GAMING 750B 750W #6Y

◾ Capacitors and chokes pass demanding tests to achieve Military-grade Certification.

◾ Dual ball fan bearings can last up to twice as long as sleeve bearing designs.

◾ A protective PCB coating protects against moisture, dust, and extreme temperatures.

◾ An 80 Plus Bronze Certification is the result of Japanese capacitors and other premium components.

◾ Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.

◾ Etched cables can be bent easily during installation.

◾ 80cm 8-pin CPU connector (EPS 12V)

🟢SPECIFICATION

Model : TUF Gaming 750W Bronze

Intel Form Factor : ATX12V

PFC Type : Active PFC

Dimensions : 150 x 150 x 86 mm

Efficiency : 80 Plus Bronze

MTBF : >120,000 hrs @ 40°C

Protection Features : OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials : ROHS

AC Input Range : 100-240Vac

DC Output Voltage : +3.3V +5V +12V -12V +5Vsb

Maximum Load : 25A 25A 62A 0.8A 3A

Combined Load : 130W 130W 744W 9.6W 15W

Total Output : 750W

Cable Connectors : MB 24/20-pin x 1

                                CPU 4+4-pin x 2

                                PCI-E 6+2-pin x 4

                                SATA x 4

                                Periplheral x 4

Package Contents : Power Cord x 1

Motherboard Power : Cable x 1

                                  CPU Cable 800mm x 2

                                  PCI-E Cable x 2

                                  SATA Cable x 1

                                  Peripheral Cable x 1

0dB Technology : No

0dB Fan Button  : No, this product is without 0dB technology.
