PSU (80+ BRONZE) : THERMALTAKE SMART BM3 850W (PS-SPD-0850MNFABE-3) #5Y

🟢Product Specifications🟢

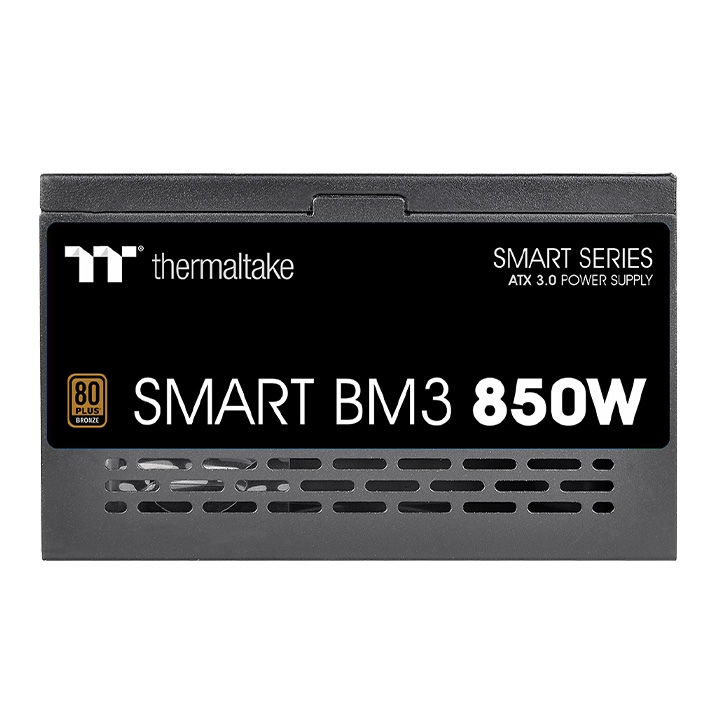

✨Thermaltake Smart BM3 850W ✨

🟠 General Information🟠

◾ Model: SPD-850AH2CLB

◾ Part Number: PS-SPD-0850MNFABx-3

◾ Wattage: 850W

◾ Color: Black

◾ Dimensions (W x H x D): 150mm x 86mm x 140mm

🟢Technical Specifications🟢

- PFC (Power Factor Correction): Active PFC

- Efficiency: Meets 80 PLUS® Bronze at 115Vac input.

- Cooling System: 12cm FDB Fan

- MTBF (Mean Time Between Failures): 100,000 hours minimum

- Protection: OCP, OVP, UVP, OPP, OTP, SCP

🟢Electrical Characteristics🟢

Input Voltage: 100-240V~

Input Frequency: 50Hz/60Hz

Input Current: 15A-6A

Hold Up Time: > 17msec

Power Good Signal: 100-150 msec

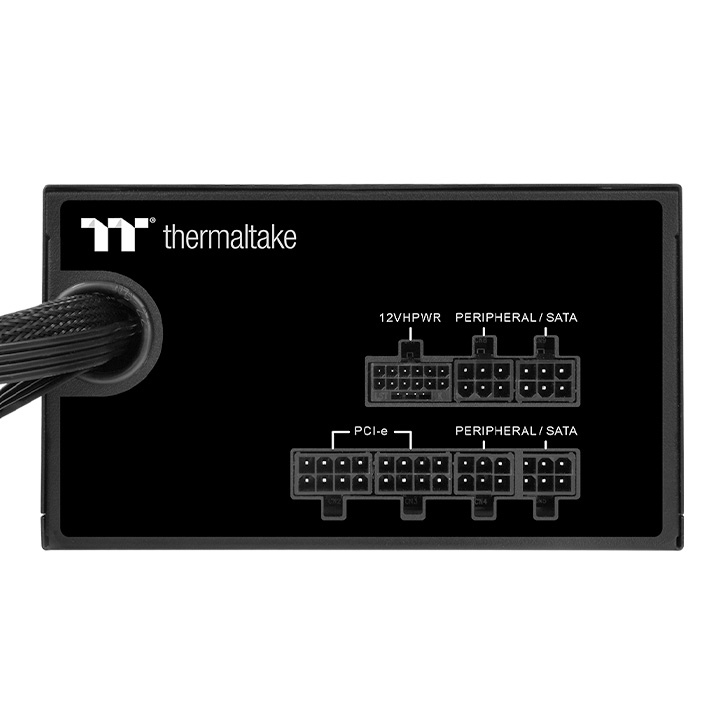

🟢Connectors🟢

PCI-E 6+2 pin: 4

PCIe 12+4 pin: 1 (450W)

🟢Environmental Conditions 🟢

Operating Temperature : 5°C to 45°C

Operating Humidity : 20% to 85% (non-condensing)

Storage Temperature : -40°C to 55°C

Storage Humidity : 10% to 95% (non-condensing)

🟢Safety and Certifications🟢

Safety Approval: CE, UKCA, LVD, FCC, ICES, TUV, CB, cTUVus, BSMI, CCC
