PSU (80+ GOLD) : ASUS TUF GAMING 850G 850W #10Y

▪️Capacitors and chokes pass demanding tests to achieve Military-grade Certification.

▪️Dual ball fan bearings can last up to twice as long as sleeve bearing designs.

▪️A protective PCB coating protects against moisture, dust, and extreme temperatures.

▪️An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.

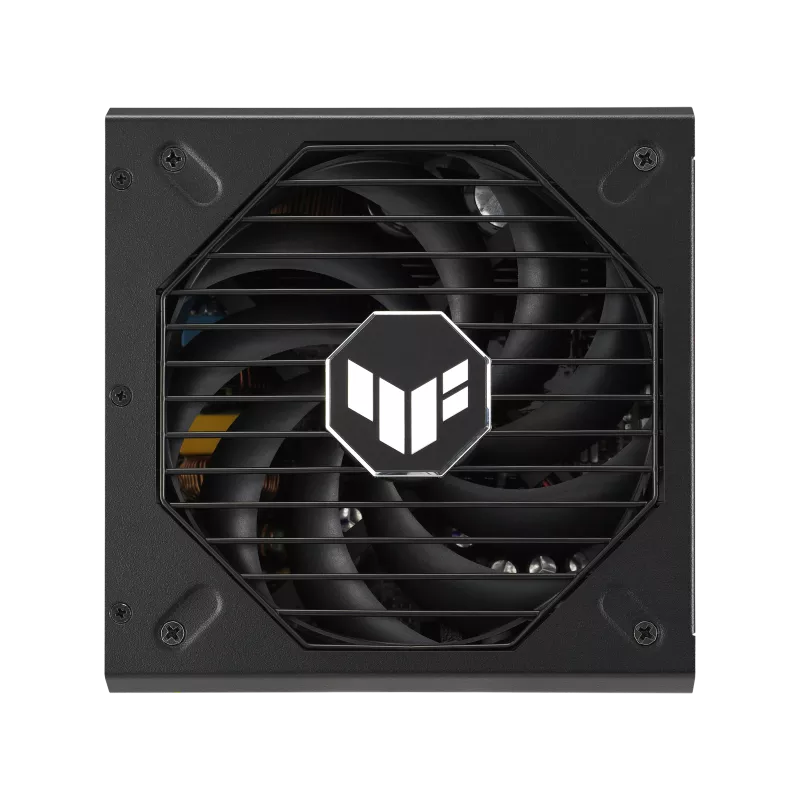

▪️Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.

▪️Fully modular etched cables keep your rig neat and tidy.

▪️10-year warranty included.

Model : TUF Gaming 850W Gold

Intel Form Factor : ATX12V

PFC Type : Active PFC

ATX Standard : ATX 3.1

Dimensions : 150 x 150 x 86 mm

Efficiency : 80 Plus Gold

MTBF : >120,000 hrs @ 40°C

Protection Features : OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials : ROHS

AC Input Range : 100-240Vac

DC Output Voltage : +3.3V +5V +12V -12V +5Vsb

Maximum Load : 25A25A70.8A 0.8A 3A

Combined Load : 130W 130W 850W 9.6W 15W

Total Output : 850W

Cable Connectors : MB 24/20-pin x 1

                                CPU 4+4-pin x 2

                                PCI-E 16-pin x 1 (both PSU & component side)

                                PCI-E 8-pin x 3

                                SATA x 5

                                PERIPHERAL x 4

                                Package Contents

                                Power Cord x 1

                                Motherboard Power Cable x 1 (610mm)

                                CPU Cable x 2 (650mm)

                                PCI-E Gen 5.1 16-pin Cable x 1 (675mm)

                                PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)

                                PCI-E 1-to-1 Cable x 1 (675mm)

                                SATA 1-to-2 Cable x 1 (400+120mm)

                                SATA 1-to-3 Cable x 1 (400+120+120mm)

                                Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)

                                TUF Gaming Cable Tie x 3

                                User Manual x 1

Weight 2.38kg (single PSU)

0dB Technology : Supported. The fan shuts off entirely when the PSU is under certain load
