MSI MPG A850GF 850W (80+ GOLD)

MSI MPG A850GF 850W  มาตรฐาน 80 PLUS GOLD

Brand    MSI

Model    MPG A850GF

Type

• ATX

Power Capacity

• 850W

Input Voltage

• 100 - 240 Vac

Input Current

• 115Vac/10.0A max. 230Vac/5.0A max.

Input Frequency Range

• 47Hz - 63Hz

Operating Temperature

• N/A

Fan Size

• 140 mm

Efficiency

• Up to 90%

MTBF

• N/A

Safety Regulation

• N/A

Protection

• OCP / OVP / OPP / OTP / SCP / UVP

Certification

• 80 PLUS GOLD

Modular

• Full Modular

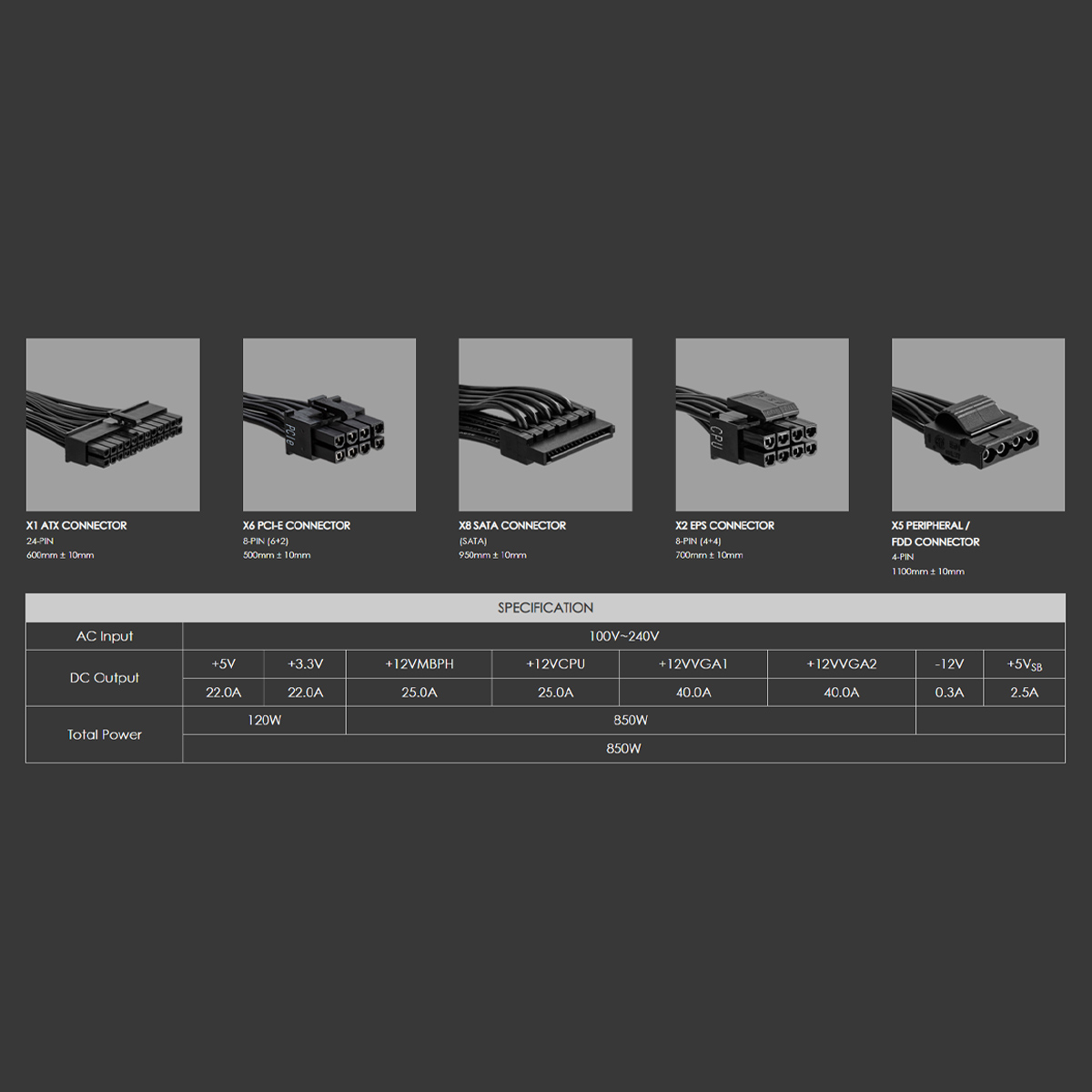

ATX Main Connector

• (24 Pin) x 1 Connector

CPU Power Connector

• (4+4 Pin) x 2 Connector

PCIe Power Connector

• (6+2 Pin) x 6 Connector

SATA Power Connector

• 8 Connector

Peripheral Power Connector

• 5 Connector

Floppy Power Connector

• None

RGB Power Connector

• None

PSU Length

• 160mm
• Dimension    (W x D x H) : 15.00 x 16.00 x 8.60 cm
• Net Weight    3.15 KG
• Package Dimension    (W x D x H) : 20.90 x 28.70 x 12.90 cm
• Gross Weight    3.29 KG
