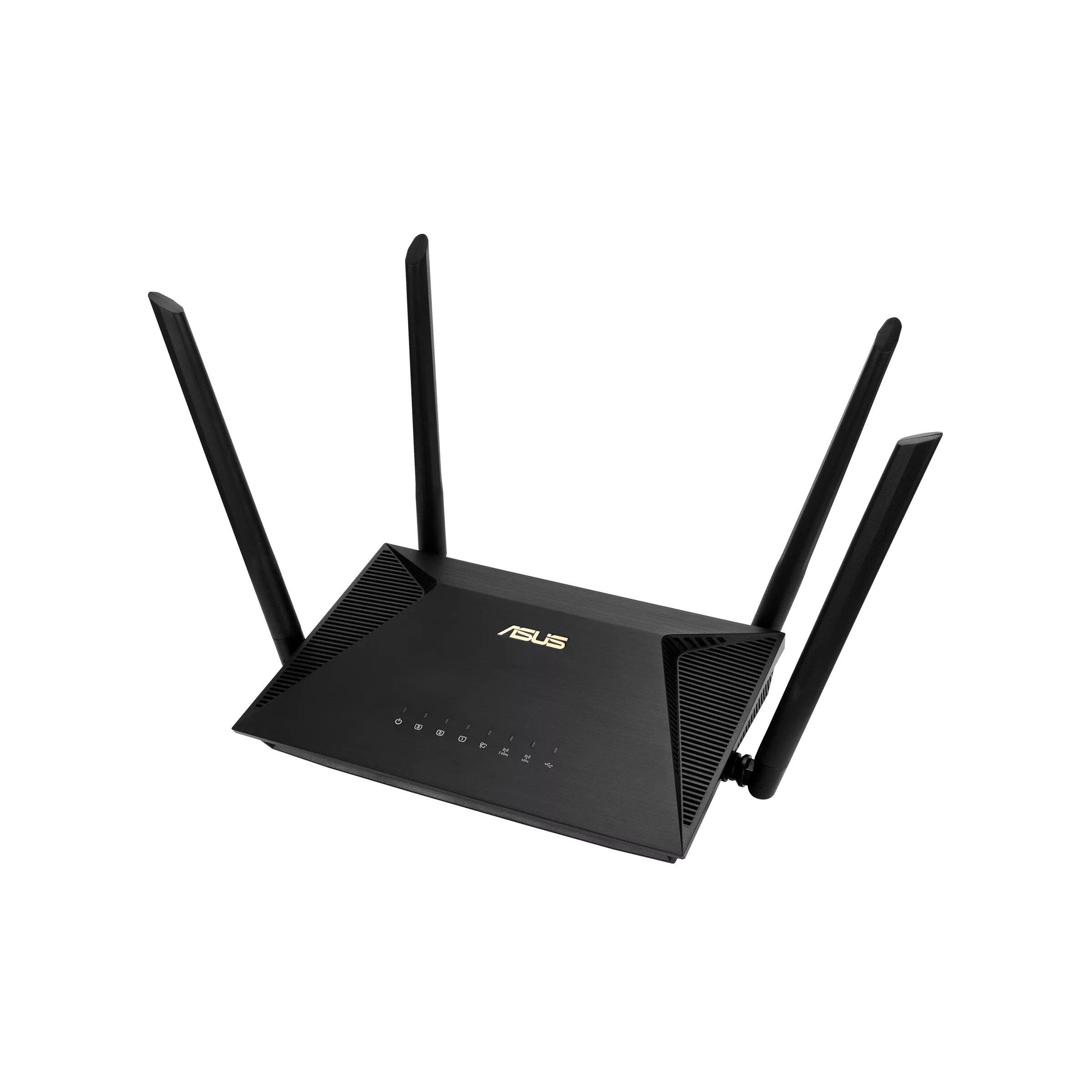

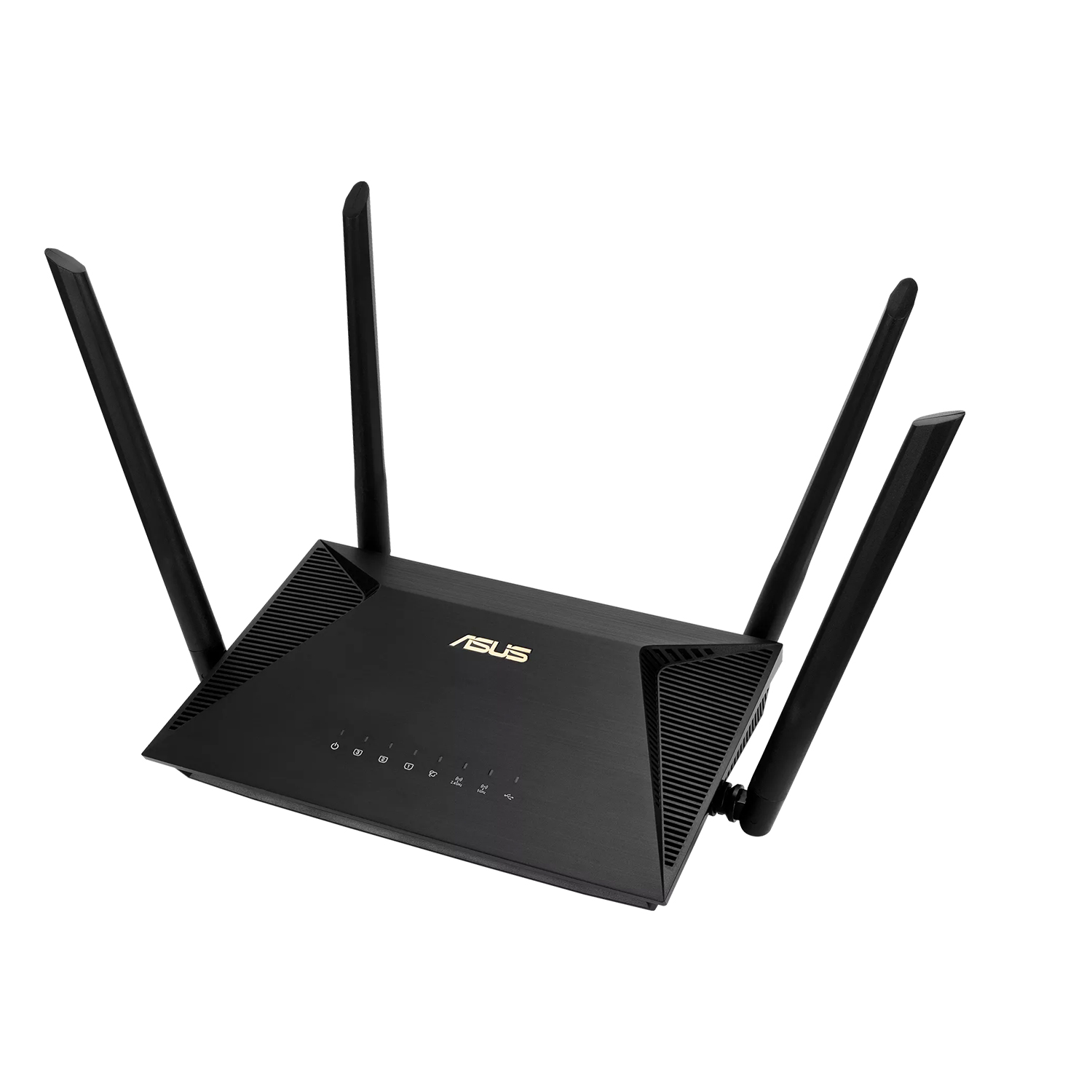

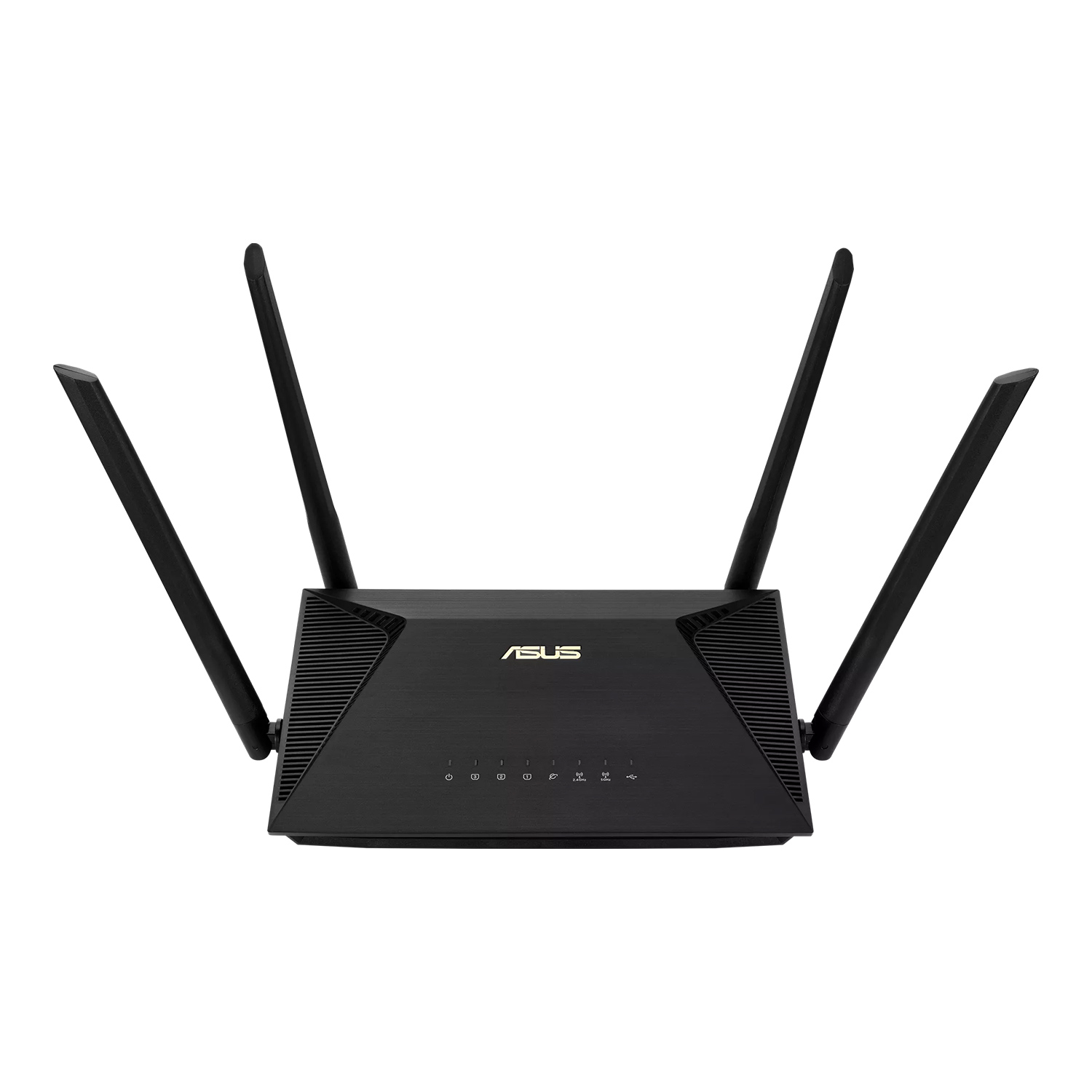

ROUTER : ASUS RT-AX53U V1.0 AX1800 DUAL BAND WIFI 6 (90IG06P0-MFAH00) #3Y

Model : RT-AX53U

Network Standard : IPv6

                                IPv4

                                 WiFi 6 (802.11ax)

                                WiFi 5 (802.11ac)

                                WiFi 4 (802.11n)

                                IEEE 802.11g

                                IEEE 802.11b

                                IEEE 802.11a

Product Segment

AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps

WiFi Data Rate

802.11ax (5 GHz): สูงสุด 1201 Mbps

WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps

802.11ac: สูงสุด 867 Mbps

WiFi 4 (802.11n) : up to 300 Mbps

802.11g : up to 54 Mbps

802.11b : up to 11 Mbps

802.11a : up to 54 Mbps

Antenna : Ex-antennas*4

Transmit / Receive : 5GHz 2x2

                                 2.4GHz 2x2

Processor : Dual-core (4 VPE)

Memory : 128 MB Flash

                256 MB RAM

               128 MB Flash

               256 MB RAM

Boosts Speed : OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming : standard-based and universal

1024-QAM high data rate

20/40/80 MHz bandwidth

OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming : standard-based and universal

1024-QAM high data rate

20/40/80 MHz bandwidth

Operating Frequency : 2.4G Hz / 5 GHz

Operating Mode : Access Point, Media Bridge, Repeater, Router

Access Point, AiMesh, Media Bridge, Repeater, Router

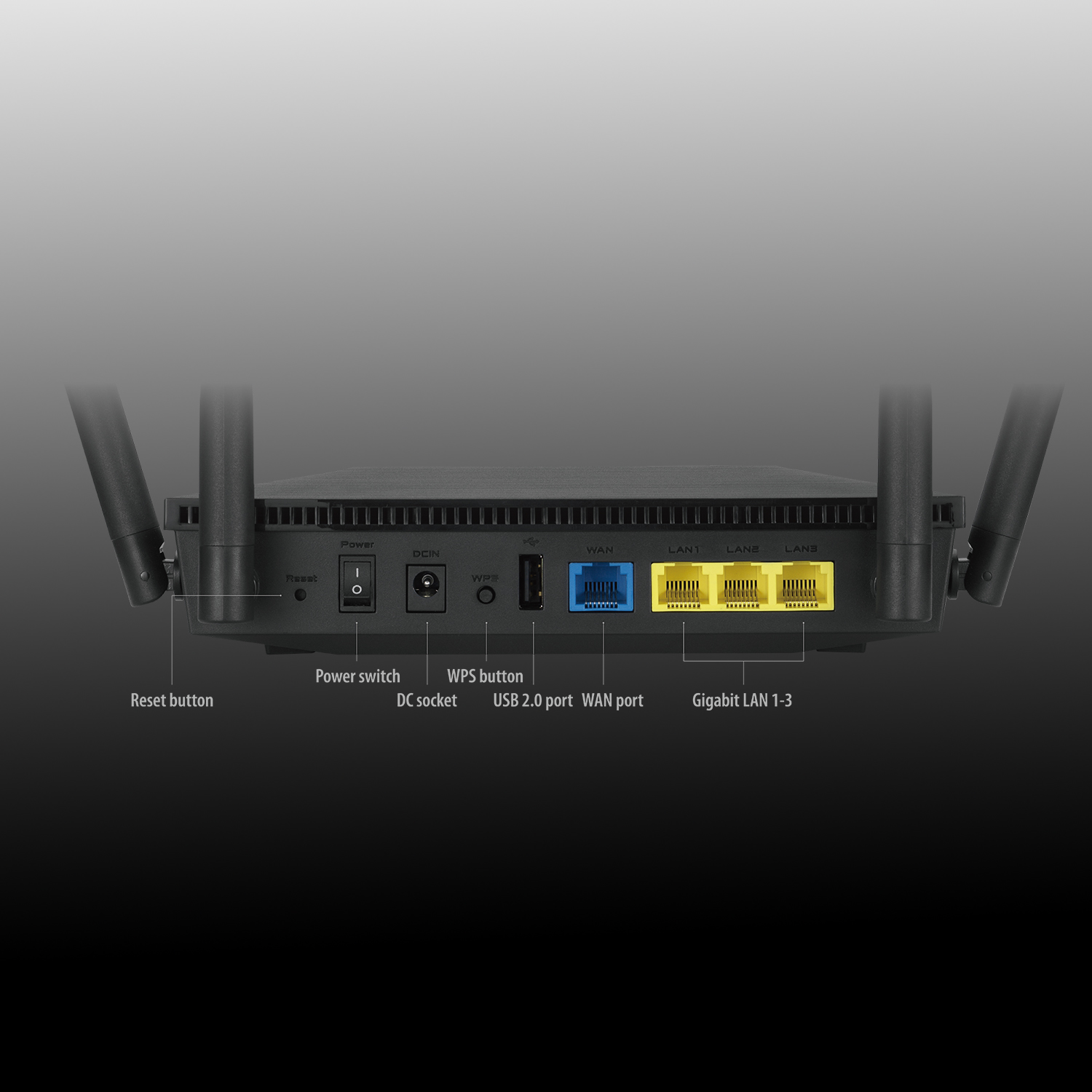

I/O Ports : RJ45 for Gigabits BaseT for

WAN x 1, RJ45 for Gigabits BaseT for LAN x 3,USB Port x1

Buttons : WPS Button, Reset Button, Power Switch

LED Indicator :

Power x 1

2.4G x 1

5G x 1

LAN x 3

WAN x 1

USBX1

Power x 1

2.4G x 1

5G x 1

LAN x 3

WAN x 1

USBX1

Power Supply

AC Input : 100V~240V(50~60Hz)

DC Output : 12 V with max. 1.5A current

AC Input : 100V~240V(50~60Hz)

DC Output : 12 V with max. 1.5A current

Package Content

RT-AX53U

RJ45 x1

Adapter x1

QSG x1

Warranty Card x1

RT-AX53U

RJ45 x1

Adapter x1

QSG x1

Warranty Card x1

Product Weight (g) : 346g

Product Dimensions : 190 x 126 x 45 mm

AiMesh : AiMesh, Primary AiMesh router, AiMesh node

Parental Control : Parental Control Customized Internet schedule

Guest Network : Guest Network

Security : Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA3-Personal, WPS, Let's Encrypt, SSH, Firewall

AiProtection : Malicious site blocking, Infected Device Prevention and Blocking

VPN : Instant Guard, VPN Client L2TP, VPN Client OVPN, VPN Client PPTP, VPN Server IPSec, VPN Server OVPN, VPN Server PPTP

Traffic Control : Bandwidth limiter, Traditional QoS, Traffic Monitor, Real-time traffic monitor, Wired Traffic Monitor, Wireless Traffic Monitor

WAN : Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, Dual WAN, 3G/4G LTE dongle, Port triggering, DMZ, DDNS

LAN : DHCP Server, ใช่, IPTV, Manually assign IP address, Wake on LAN (WOL)

Wireless : UTF-8 SSID, WiFi MAC address filter, Wireless scheduler, Airtime fairness, RADIUS Client,

Universal beamforming, Explicit beamforming

USB application : Safely Remove disk, Download master, AiDisk, Media Server, Samba Server,

FTP Server, Shared Folder privileges

Administration : Configuration backup and restore, Diagnosis tools, Feedback system, System log
