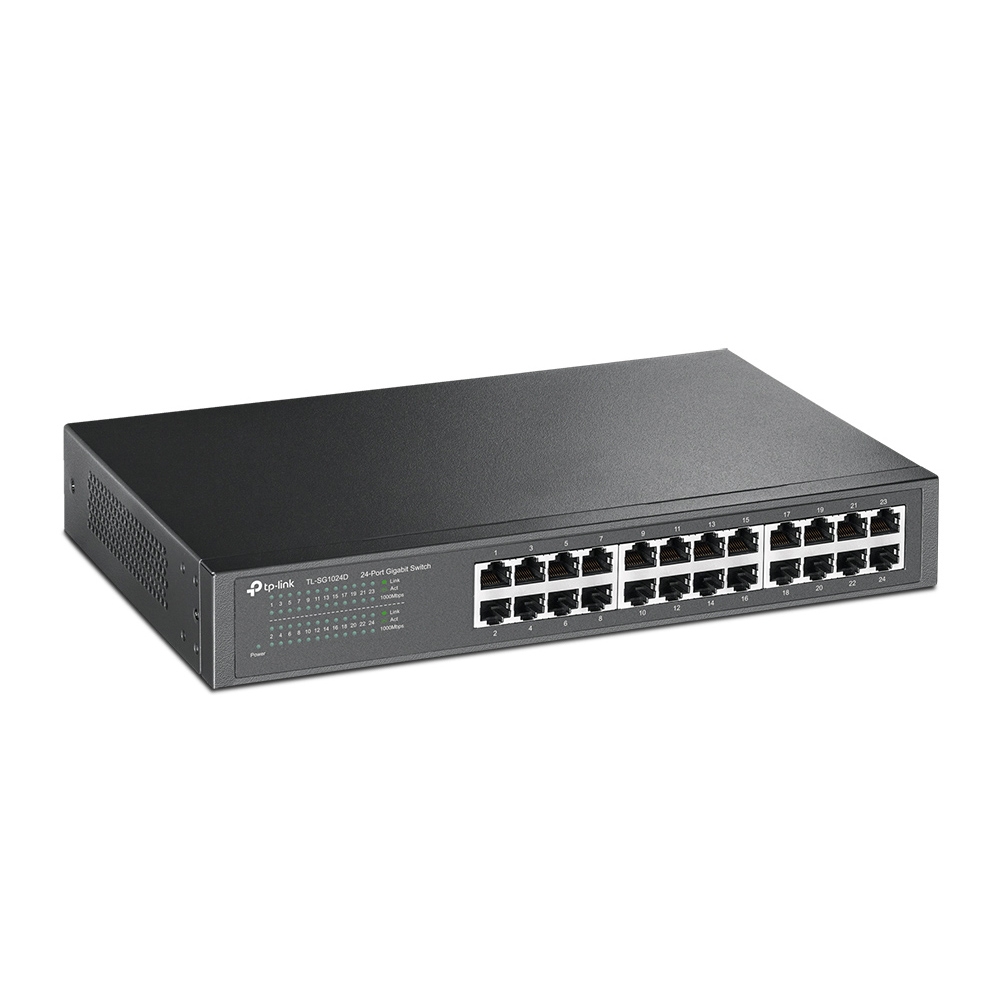

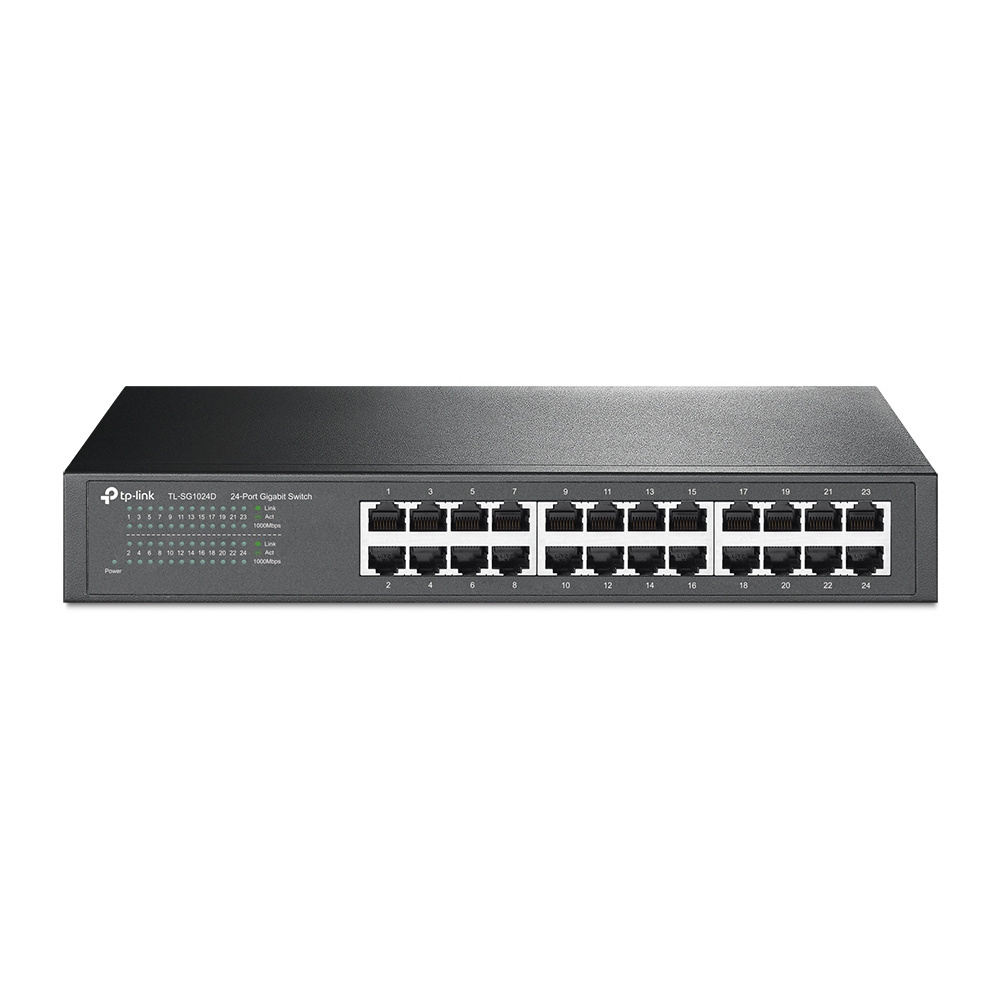

TP-LINK TL-SG1024D 24 PORTS SWITCHING

◾ TL-SG1024D

Network Interface

◾ 24 x 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Standards and Protocols

◾ IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x

Switching Capacity

◾ 48Gbps

Transmission Method

◾ Store-and-Forward

MAC Address Table

◾ 8K

Jumbo Frame

◾ 10KB

Packet Buffer Memory

◾ 35.7Mpps

Fan Quantity

◾ Fanless

Network Media

◾ 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m)

◾ 100BASE-TX/1000BASE-T : UTP category 5, 5e or above cable (maximum 100m)

Power Supply

◾ 100-240VAC, 50/60Hz

Power Consumption

◾ 13.08W(220V/50Hz)

Environment

◾ Operating Temperature: 0℃~40℃ (32℉~104℉)

◾ Storage Temperature: -40℃~70℃ (-40℉~158℉)

◾ Operating Humidity: 10%~90% non-condensing

◾ Storage Humidity: 5%~90% non-condensing

Certifications

◾ FCC, CE, RoHS

Package Contents

◾ 24-Port Gigabit Desktop/Rackmount Switch

◾ Power Cord

◾ Installation Guide

◾ Rackmount Kits

◾ Rubber Feet

Package Dimension    (W x D x H) : 25.00 x 40.00 x 7.00 cm

---------------------------
