SWITCHING GIGABIT : TP-LINK TL-SG108 8 PORT #LT

✅HARDWARE FEATURES✅

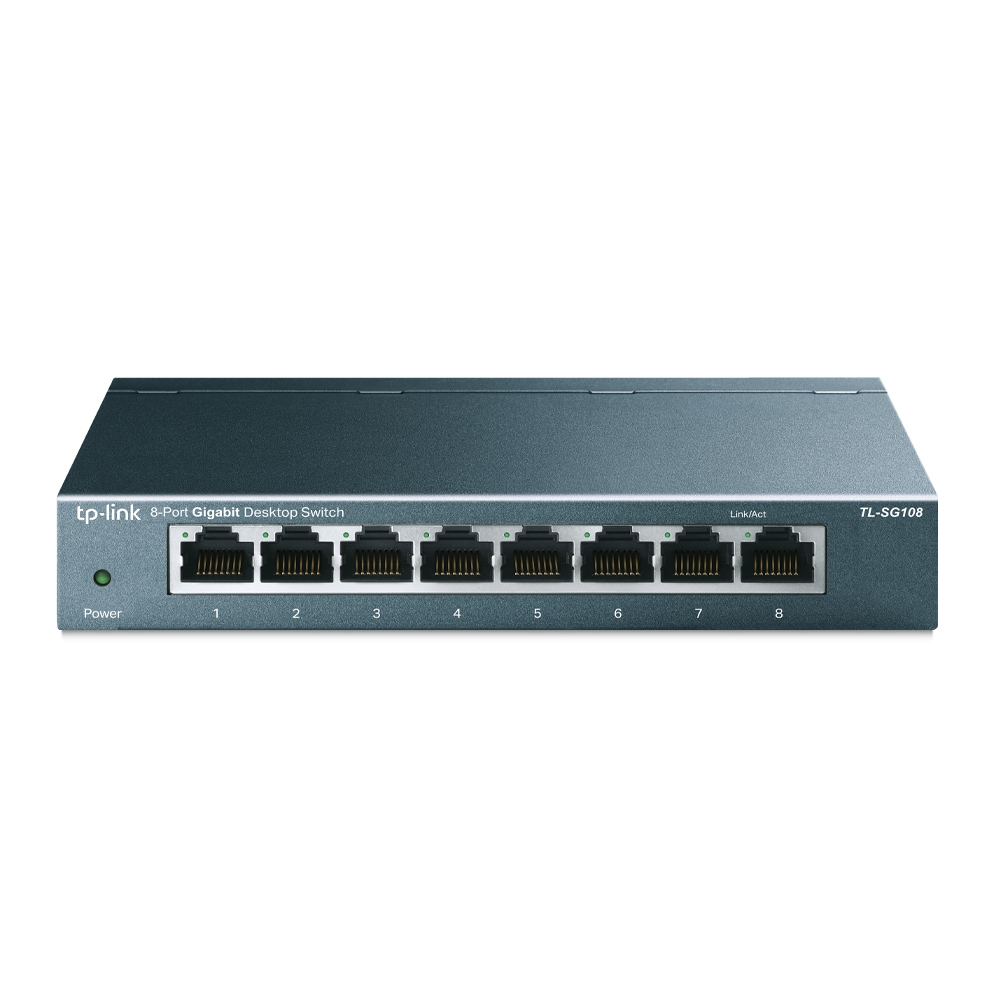

8-Port Gigabit Desktop Switch

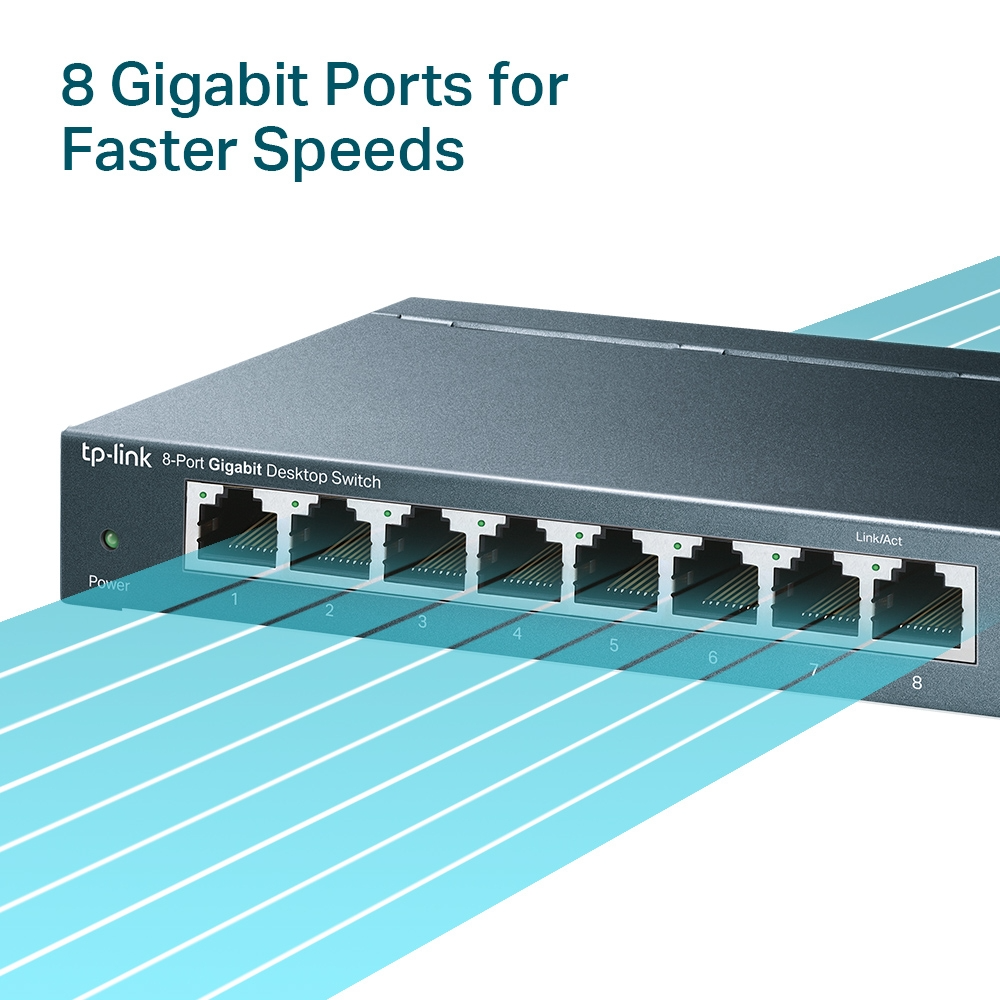

8× 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX

Green Ethernet technology saves power consumption

IEEE 802.3x flow control provides reliable data transfer

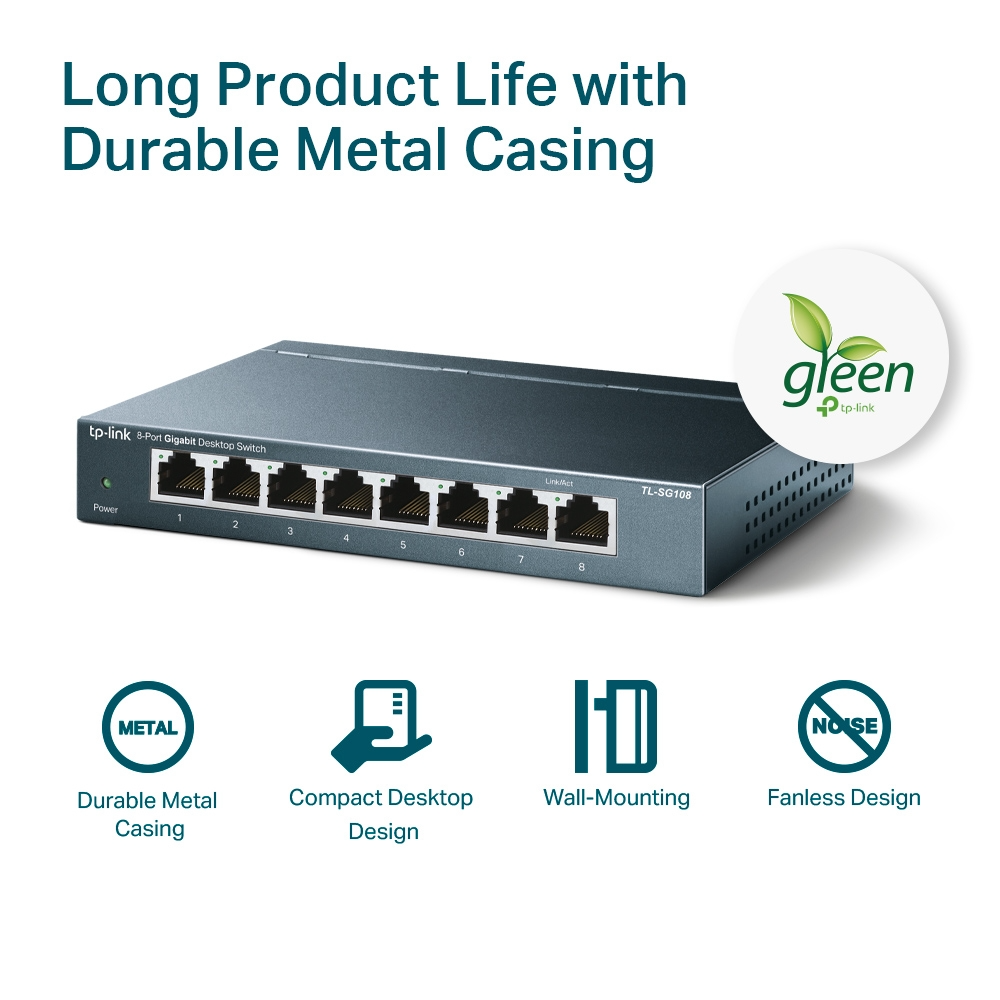

Steel housing, desktop or wall-mounting design

Support 802.1p/DSCP QoS and IGMP Snooping function

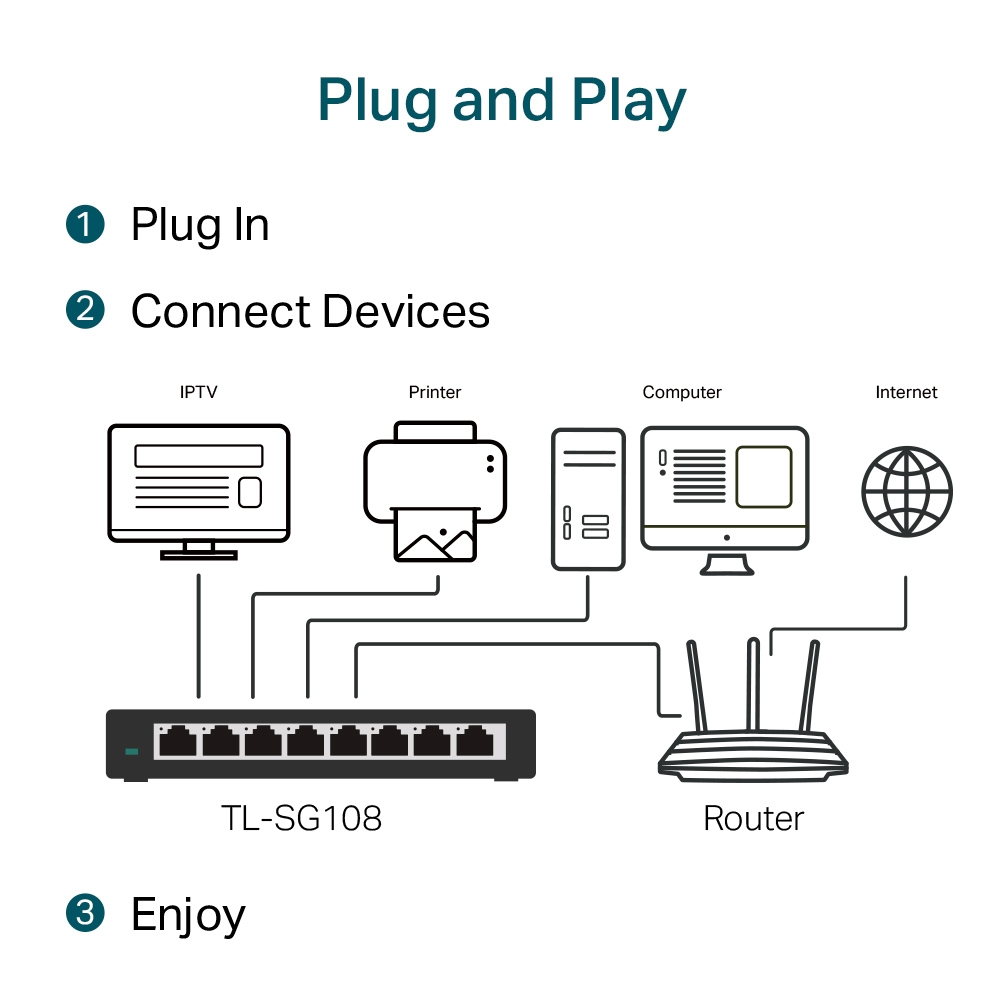

Plug and play, no configuration needed

Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping

Standards and Protocols    IEEE 802.3i / 802.3u / 802.3ab/ 802.3x /802.1p

Interface    8× 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity    Fanless

External Power Supply    External Power Adapter (Output: 5VDC / 0.6A)

LED    System Power

Link/Act indicators per port built into each RJ-45 port

Dimensions ( W x D x H )    6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm)

Max. Power Consumption    3.75 W(220V/50Hz)

Max Heat Dissipation    10.79 BTU/h

✅PERFORMANCE✅

Packet Forwarding Rate    11.9 Mpps

MAC Address Table    4K

Packet Buffer Memory    1.5 Mb

Jumbo Frame    16 KB

✅SOFTWARE FEATURES✅

Advanced Features    Green Technology

802.3X Flow Control

802.1p/DSCP QoS

IGMP Snooping

Loop Prevention

Transmission Method    Store and Forward

✅OTHERS✅

Certification    CE, FCC ,RoHS

Package Content    8-Port 10/100/1000Mbps Desktop Switch

Power Adapter

Installation Guide

Environment    Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10% ~ 90%, non-condensing

Storage Humidity: 5%~90% non-condensing
