SWITCHING GIGABIT POE : TP-LINK TL-SG1218MP 16 PORT #LT

Standards and Protocols : IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p

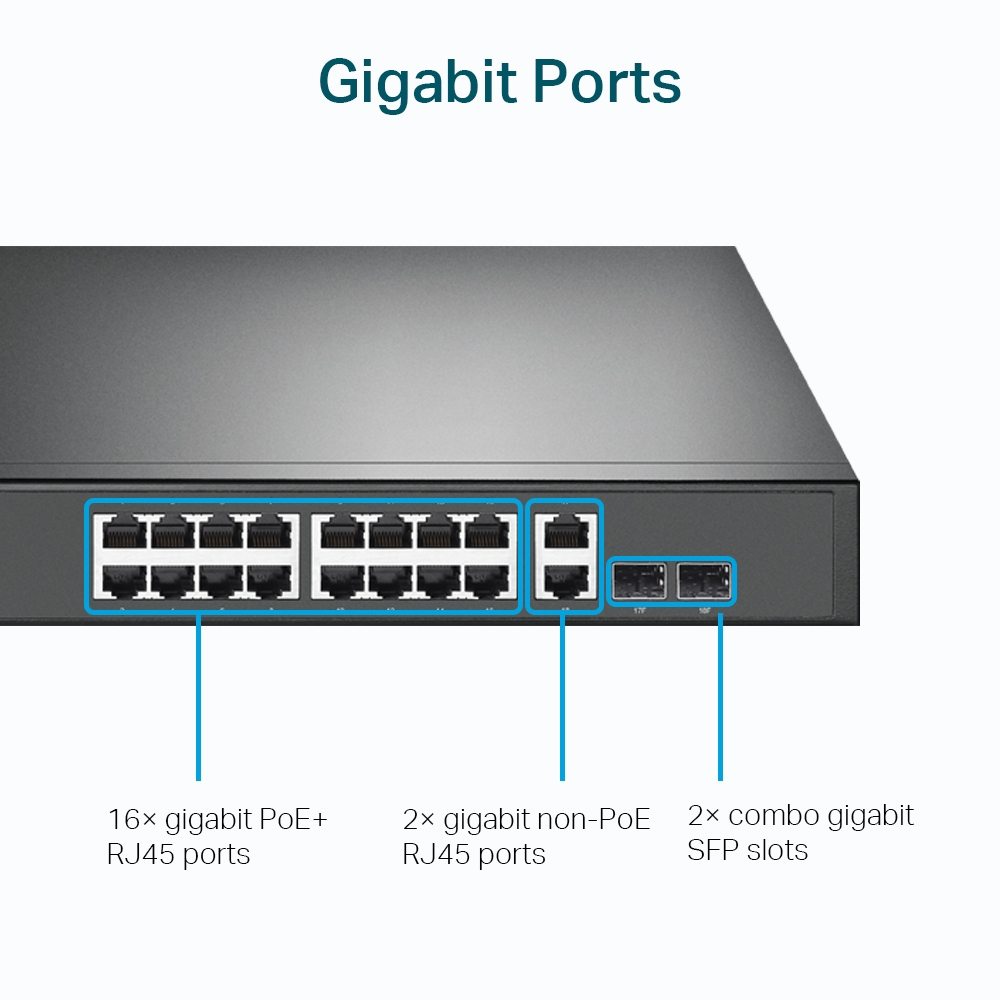

Interface : • 16× PoE+ gigabit RJ45 ports

                 • 2× gigabit non-PoE RJ45 ports

                 • 2× combo gigabit SFP slots

Network Media :

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 1000 BASE-X MMF, SMF

Fan Quantity : 2

Physical Security Lock : Yes

Power Supply : 100–240 VAC, 50/60 Hz

PoE+ Ports (RJ45) • Standard: 802.3at/802.3af compliant

                               • PoE Ports: Ports 1–16

                               • PoE Power Budget: 250 W

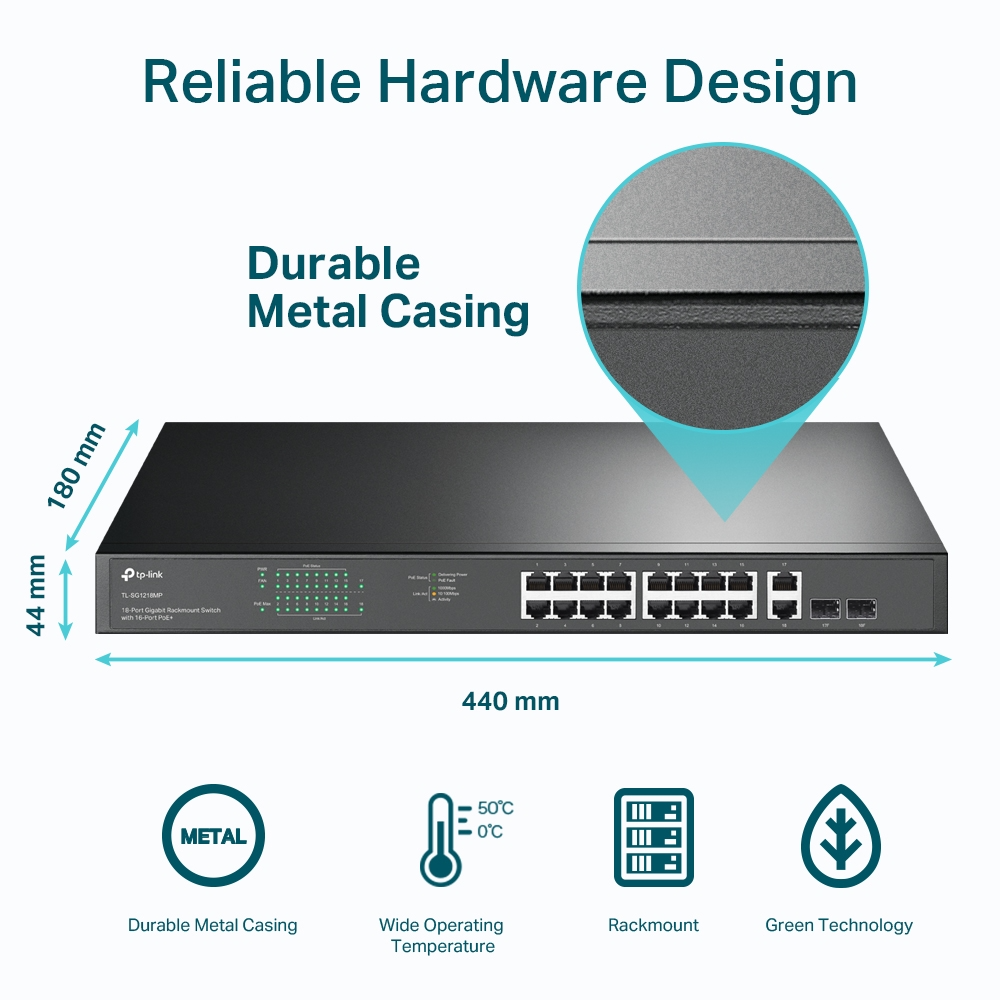

Dimensions ( W x D x H )17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm)

Mounting Rack Mountable

Max Power Consumption : • 21.4 W (220/50 Hz. no PD connected)

                                           • 286.64 W (220/50 Hz. with 250 W PD connected)

Max Heat Dissipation : • 72.97 BTU/h (no PD connected)

                                     • 977.44 BTU/h (with 250 W PD connected)

Switching Capacity    : 36 Gbps

Packet Forwarding Rate    : 26.78 Mbps

MAC Address Table : 8K

Packet Buffer Memory : 4.1 Mbit

Advanced Functions : • Compatible With IEEE 802.3af/at Compliant PDs

                                    • 802.1p/DHCP QoS

                                    • Mac Address Auto-Learning And Auto-Aging

                                    • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

Jumbo Frame : 10 KB
